Precision Planetary Reducer

Precision Planetary Reducer Introduce

Precision Planetary Reducer is a crucial device in the field of industrial transmission and is widely applied in scenarios with stringent requirements for transmission accuracy, stability, and torque output. Its internal structure is sophisticated and complex, mainly with the coordinated operation of core components such as the sun gear, planet gears, ring gear, and planet carrier to achieve efficient speed reduction and torque transmission.

1.Ultra - high positioning accuracy: By virtue of top - notch processing techniques and advanced assembly technologies, the positioning accuracy of this reducer is remarkable, capable of being precisely controlled within an extremely small error range. This provides assurance for applications such as the precise chip placement in semiconductor manufacturing equipment and the delicate operations of high - end medical devices.

2.Excellent rigidity and stability: High - strength alloy materials are used to manufacture gears and shafts. Combined with a meticulously designed structure, it has excellent rigidity. When facing high - load impacts, it can maintain stable operation, reducing vibration and deformation, making it suitable for heavy - duty machinery processing, large - scale automated production lines, and other fields.

3.Broad torque output range: Through ingenious gear combinations and optimized designs, it can provide an extremely broad torque output range from low to high under different reduction ratios, meeting the diverse needs of light - duty automation equipment to large - scale industrial machinery.

4.Outstanding thermal management performance: During operation, the heat generated by the precision planetary reducer can be efficiently dissipated. Its unique heat dissipation structure design and the selection of high - quality heat - dissipating materials ensure that the equipment's temperature remains within a reasonable range during long - term and high - load operation, safeguarding the stable performance and service life of the equipment.

5.Highly customized adaptation: Fully considering the special requirements of different industries and equipment, this reducer can be customized in terms of reduction ratio, installation method, output shaft form, and other aspects according to customer requests, perfectly adapting to various complex working conditions.

1.Significantly enhance equipment efficiency: Relying on its high precision, high stability, and suitable torque output, it can remarkably improve the working efficiency and processing accuracy of the driven equipment, assisting enterprises in enhancing product quality and production efficiency.

2.Reduce overall operating costs: The efficient transmission reduces energy consumption, and the stable performance reduces equipment failure rates and maintenance frequencies. In the long run, it saves a large amount of energy and maintenance costs for enterprises.

3.Adapt to complex working environments: Whether in harsh climatic conditions such as high temperature and humidity or in industrial sites with dust and vibration, the precision planetary reducer can operate stably, demonstrating strong environmental adaptability.

4.Facilitate compact equipment design: Its compact structure and small size, without affecting performance, provide more design space for equipment designers, facilitating the realization of miniaturized and lightweight equipment designs.

5.Prolong the overall service life of equipment: The sophisticated manufacturing process, high - quality materials, and excellent performance enable the reducer itself to have a long service life. At the same time, it also reduces the wear and tear of supporting equipment, thus extending the service life of the entire equipment system.

Precision Planetary Reducer Structure

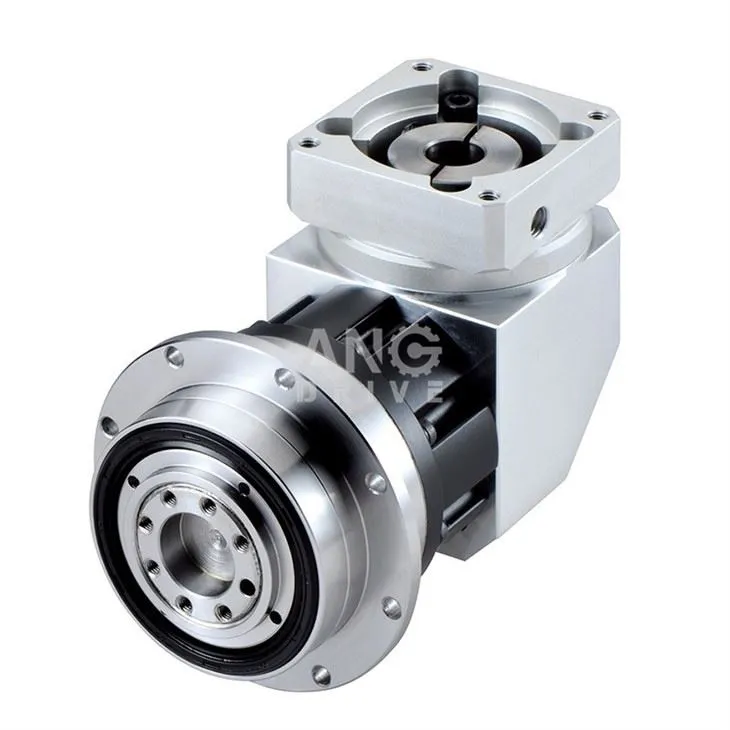

ANG Precision Planetary Gearbox
Model	40-220	Type	Coaxial or Right angle
Ratio	1/3 ~ 1/512	Torque	40-3000Nm
Efficiency	98%	Input/Output shaft material	40Cr
Housing material	42CrMo	Machining precision of gears	6 Grade
Gear material	20CrMnTi	Lubricating oil	Synthetic Grease
Surface hardness of gears	HRC58-62	Heat treatment	Carbonize & quencher
Brand of bearings	C&U, HRB	Vibration	≤15μm
Brand of oil seal	SKF	Oil Temp. rise (MAX)	40℃
Noise (MAX)	55-70 dB	Noise (MAX)	70℃
