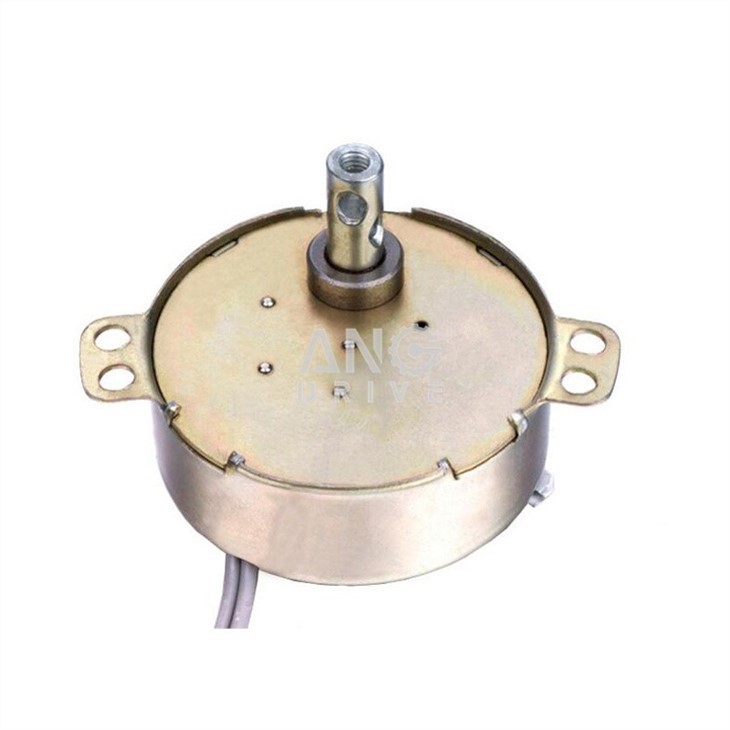

Synchronous Motor

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of synchronous motor which is low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

Features of synchronous motor:

1. Compact structure and simple assembly.

2. Wide speed ranges and high torque.

3. Low noise, good sealing performance, high efficiency.

4. Stable and safe, long lifetime, universal.

AC synchronous motor is reversible and single phase.

The power is from 10W to 25W, the speed is variable due to different gear ratios.

As they are synchronous motor. Their unload speed and loaded speed are the same.

Specification for synchronous motor:

Voltage			VAC		24			110				220-240			24				110			220-240
Frequency			HZ		50/60										50/60
Input Power			W		<17										<25
Input Current			mA		<0.63			<0.14				<0.07			<1.2				<0.3			<0.15
Rotating Direction					CW/CCW(Reversible)										CW/CCW(Reversible)
Operating Temperature			℃		-15- 40										-15- 40
Coil Temperature Rise			K		<80										<80
Insulation Class					B										B
Insulation Strength					AC1500/50HZ/min.										AC1500/50HZ/min.
Capacitor					47uF/63V			2.2uF/250V				0.56uF/450V			57uF/63V				2.8uF/250V			0.68uF/450V
Duty Type					S1 Continuously										S2(30minutes)
Output Speed	r/min			2.5		5	8		10	15	20		25	30		40	60	75		99	115	128	136
Rated Speed	Kgf.cm	S1		40		40	40		30	20	15		12	10		7.5	5	4		3	2.5	2	1.5
		S2							40	30	23		18	15		11	7	5.5		4	3.5	3	2.5
