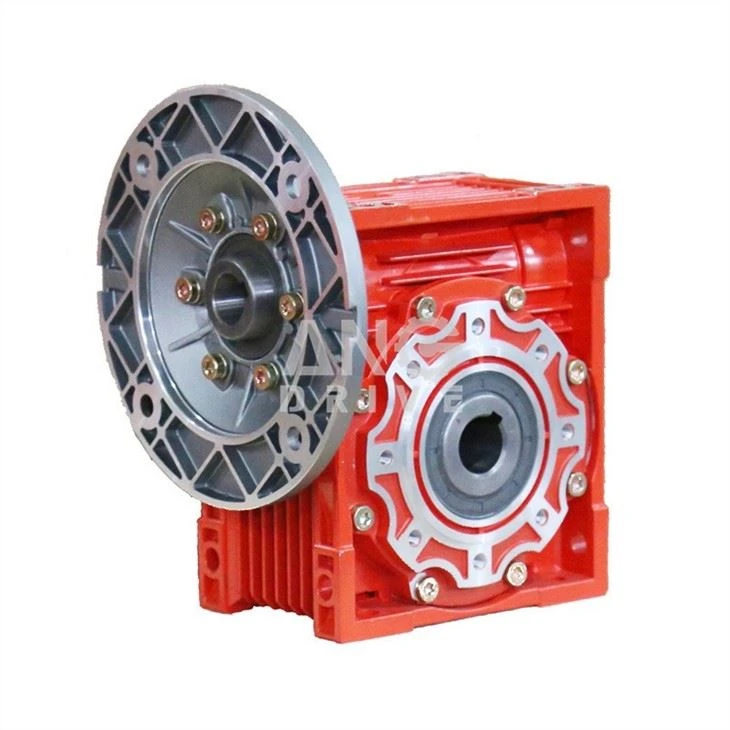

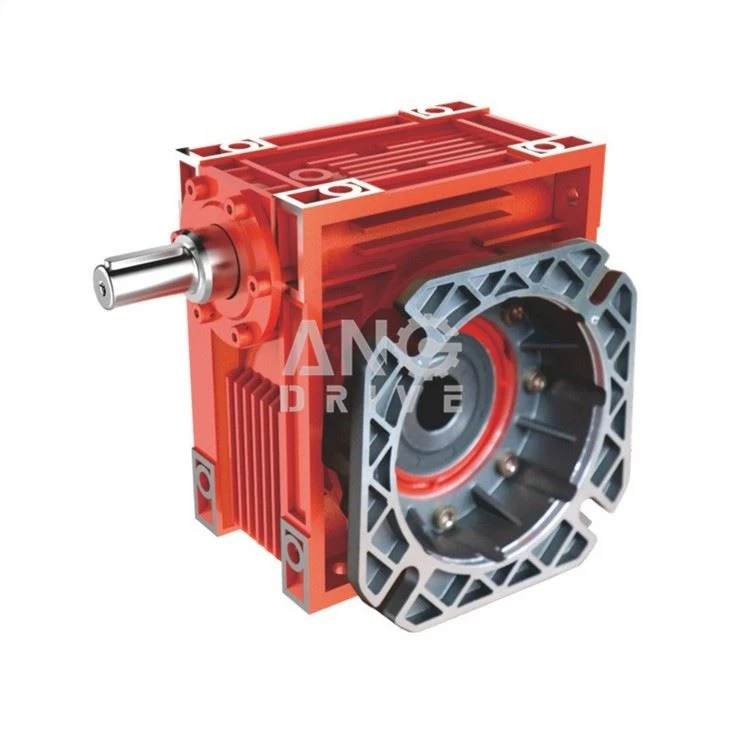

NMRV Gear Reducer

NMRV Gear Reducer Specification:

The NMRV reducer is a new type of speed reducer, also known as the RV reducer. It is mainly composed of oil seals, oil plugs, worm gear boxes, ball bearings, output shafts, worm gears, worms, motor connection plates (flanges), output shaft covers, hex socket head cap screws, double round keys, gaskets, etc. It is widely used in fields with high requirements for accuracy and torque, such as industrial robots, machine tools, medical testing equipment, and satellite receiving systems. It is also commonly used in transmission equipment that requires low - speed and high - torque, such as conveyors, material handling equipment, and packaging machinery.

Material:Aluminum alloy

1. Occupied no space
The space requirement for the installation of the output shaft is considerably large when assembling the motor or reducer. The installation of a hollow - type reducer can form a right - angle with the motor, thus facilitating the miniaturization of the machine.
2.Self locking
For places that require minor holding force, it can save the cost of the braking device, for example, in a slope conveyor.
3.Fast stop
The ordinary gear reducer avallable in market requires 5 - 10seconds stop time. but NRV series product need only 2 - 5 seconds to reach state of still.
4.High accommodation

You can choose from a hollow shaft, a unidirectional output shaft or a dual - output shaft. It is easy to modify, and it only takes one minute to complete the disassembly and assembly of the shaft.

5.High safety

Using a transmission method different from the conventional one, no sprocket pulley is needed and there is no exposed transmission structure, which reduces the risk to the operator.

1.Good protection
It is waterproof and dustproof, with a protection class of IP55, providing effective isolation against dust and moisture.
2.Good cooling effect
The casing is made of one - piece aluminum alloy, which dissipates heat rapidly, extending the lifespan of components like the worm, worm gear. It has excellent durability (the temperature of the worm - casing is normal during operation).
3.Easy maintenance
Different from the conventional mounting method, you don't need to disassemble the sprocket and pulley. Instead, you only need to disassemble and assemble the mounting base of the reducer to complete the adjustment easily.

4.No brand restriction
It can be matched with 15W - 200W foreign or domestic products available in the market without further processing.

5.Allow multiple - side installation, with no angle restriction
There are mounting holes on all planes of the series of products, enabling you to choose the required installation direction and angle.
