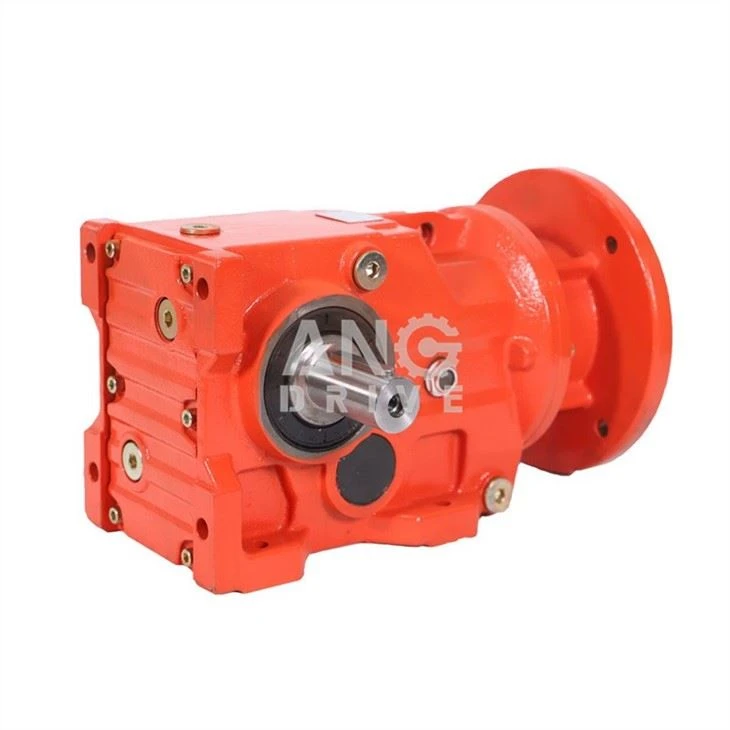

bevel helical gearbox

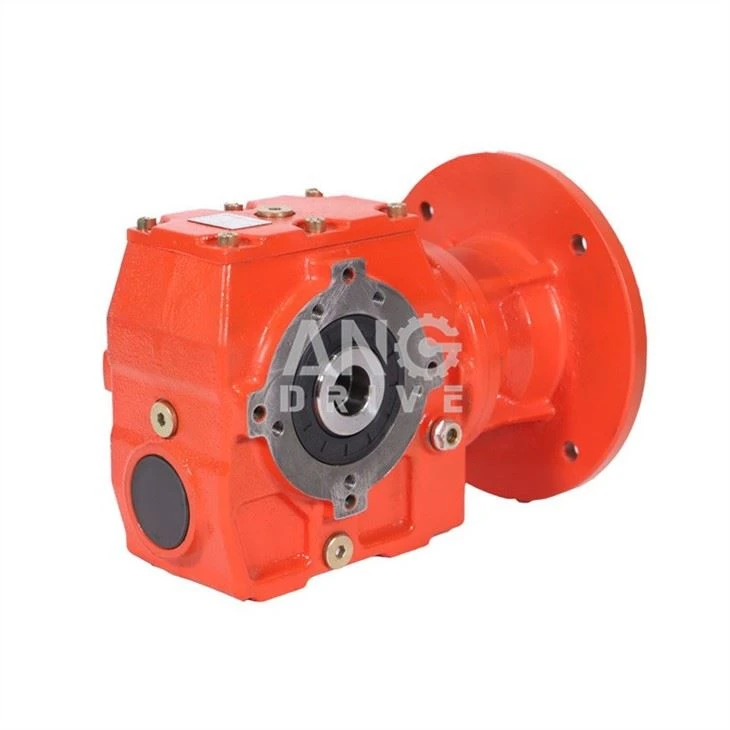

worm helical gear

Miter Gearbox

ANG miter gearbox is a compact right-angle gearbox designed for power transmission between intersecting shafts. It uses precision bevel gears to provide efficient and reliable power transfer, and is available in different shaft configurations and gear ratios for agricultural and industrial machinery.

Send Inquiry

Product Introduction

Products Features

1.High transmission efficiency - designed for efficient power transfer between intersecting shafts.

2.Compact right-angle design - helps reduce installation space in mechanical transmission systems.

3.Multiple shaft configurations - available in 2-shaft, 3-shaft and 4-shaft arrangements.

4.Wide ratio options - standard ratios from 1:1 to 5:1.

5.High-strength gears - precision-machined gears with surface hardening for improved durability.

6.Solid or hollow shaft options - selectable according to the equipment's transmission and mounting requirements.

7.Low noise and vibration - precision gear machining helps support stable operation.

Details Images

bevel gear box bevel gear boxes bevel gear unit

bevel gearbox bevel gear units bevel gearboxes

General introduction:

Name	Miter Gearbox
Model	T2 ~ T25 or other
Ratio	1/1 ~ 5/1
Input power	0.01 ~ 158kw
Output torque	~ 5700Nm
Shaft numbers	2 shafts, 3 shafts, 4 shafts,
Output type	Solid shaft or Hollow shaft
Efficiency	98%
Function	Speed reducing, speed increasing, change direction
Housing material	HT250 high-strength cast iron
Gear material	20CrMnTi
Surface hardness of gears	HRC58~62
Input / Output shaft material	40Cr
Machining precision of gears	accurate grinding, 6 Grade
Lubricating oil	gear oil
Heat treatment	tempering, cementiting, quenching, etc.
Brand of bearings	C&U or HRB bearing
Brand of oil seal	NAK or another brand
Noise (MAX)	65~70dB
Temp. rise (MAX)	40 ℃
Temp. rise (Oil)(MAX)	50 ℃
Vibration	≤20µm
