Motereducer
Production Introduction

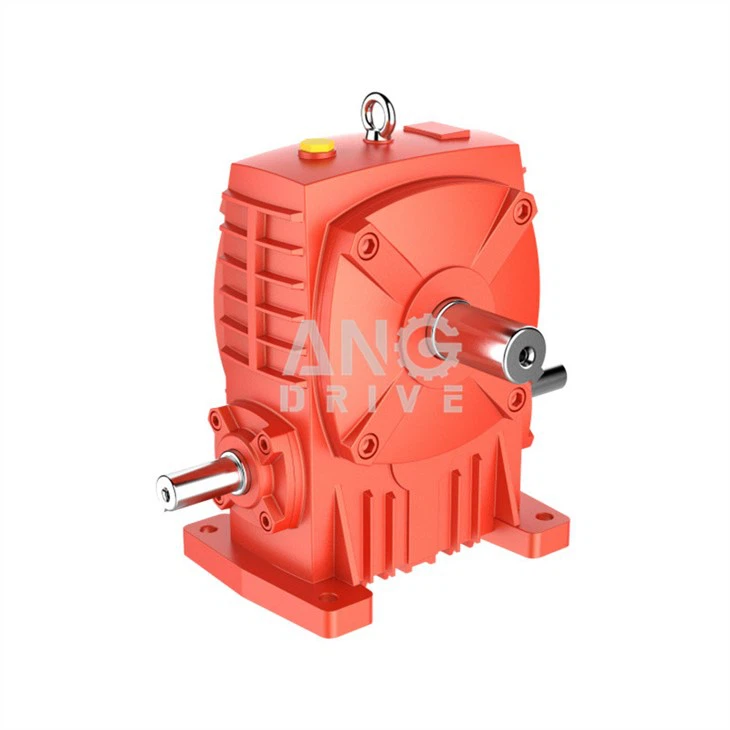

WP series reducer, also known as WP reducer, is divided into standard WPS series, standard WPD series, standard WPA and WPO WPDA. Wpdo, wpds, wpds, etc.
WP worm gear reducer is developed on the basis of WD reducer. The worm is made of 45# high-quality steel through heat treatment, and the worm gear is cast with tin bronze. It has good wear resistance, especially in terms of bearing capacity.
The worm gear reducer is mainly suitable for plastic, metallurgy, beverage, mining, hoisting and transportation Deceleration transmission of various mechanical equipment such as chemical construction.
WP series motorreducer specification
| Motereducer | |
Model | WPA WPS WPDA WPDS WPO WPX… |
Size | 40-250(single-stage) |
Input power | 0.12kw ~ 33kw |
Input speed | 750rpm ~ 2000rpm |
Reduction ratio | 1/10 ~ 1/60(single stage) |
Input motor | AC (1 phase or 3 phase) / DC motor |
Output torque | 6-6050Nm |
Install type | Foot / Solid shaft / Hollow shaft… |
Material of housing | Die-cast iron |
Application | Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass, etc. |
Working conditions of WP series reducer:
1. The worm speed of worm gear reducer shall not exceed 1500r / min.
2. The working ambient temperature is - 40 ℃ - + 40 ℃. When the working ambient temperature is lower than 0 ℃, the lubricating oil must be heated to above 0 ℃ before starting. When the working ambient temperature is higher than 40 ℃, cooling measures must be taken.
3. The input shaft of worm gear reducer can rotate forward and backward.
Precautions for WP series reducer:
1. The worm gear shaft must not be used as an input shaft.
2. The supporting motor (i.e. power) shall not exceed the value specified on the label.
3. If the user wants to change the direction of entering the shaft, remove the second end cover of the lower shaft, take out the worm shaft and adjust 180. Just load it. Do not knock hard when pressing, but slowly drive the two shafts to make them mesh.
Why choose us？
Gear
● Precise processing ● Heat treatment to increase strength ● Able to work with heavy load ● Involute tooth profile ● Archimedes tooth profile
|
|
| Inspection
● 100% running test ● Oil leakage check ● Noise check ● Vibration test |
Housing
● High strength material ● Trinity processing of each side ● Concentricity is guaranteed
|
|
FAQ
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.
Q: How can I know the Motereducer is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can you make the gearbox with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products
Production IntroductionReceiving confirm
1. Please confirm if it is the right motereducer with the order when receiving. Choosing wrong probably leads to damage of motor of damage the device and etc.
2. Defective or wrong item, we will be offered replacement or refund after receive the pictures to prove it.
Notices of usage
Before using, please check carefully whether the motereducer model, distance, ratio, input connecting method, output shaft structure, input and output shaft direction and revolving direction accord with requirement.
