Precision Reducer

Precision Reducer definition

This Precision Reducer helical planetary gearbox is used for servo motor and related devices which need to reduce speed or enlarge torque!  helical planetary gearboxes external diameter from 42 to 220, gear ratio from 3 to 100! It has high precision and is widely used with servo motors such as Panasonic, Fuji, Mitsubishi, Omran, Delta, and Teco.

Precision Reducer parameters

Right Angle Series Planetary GearboxBacklash: 10-15 arcmin
Ratio Selection: L1: 4,5,7,10, L2: 16,20,25,28,35,40,50,70
Frame Dimension: 60mm & 90mm

Gear Arrangement: Planetary Straight Teeth

Solar Gear MotorOutput Torque: 60 - 660 N.mIP: 65
Customized Service: OEM, ODM.

Application: Solar Tracker System / Solar Panels Cleaning Robot / Other Industry Machine

NEMA Series Stepper MotorMotor Type: NEMA 8 -- NEMA 42Step Accuracy: 5%
Adapted Gearbox Diameter(mm): 20, 28,35,39,42,57,60,86,110
Ambient Temperature Range: -20°C ~ +50°C

Product photos

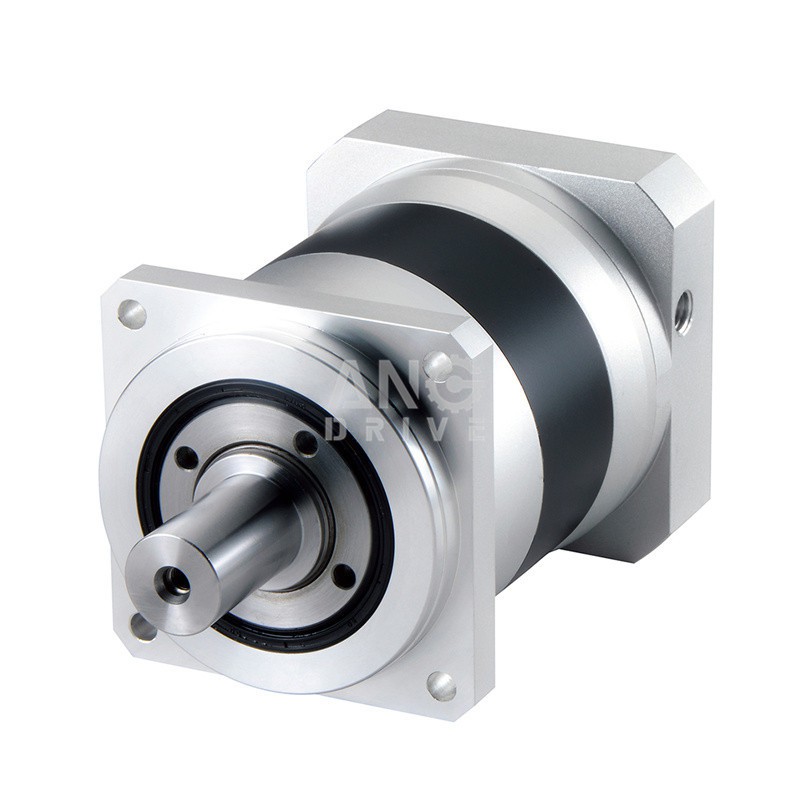

Precision Planetary Gear Box

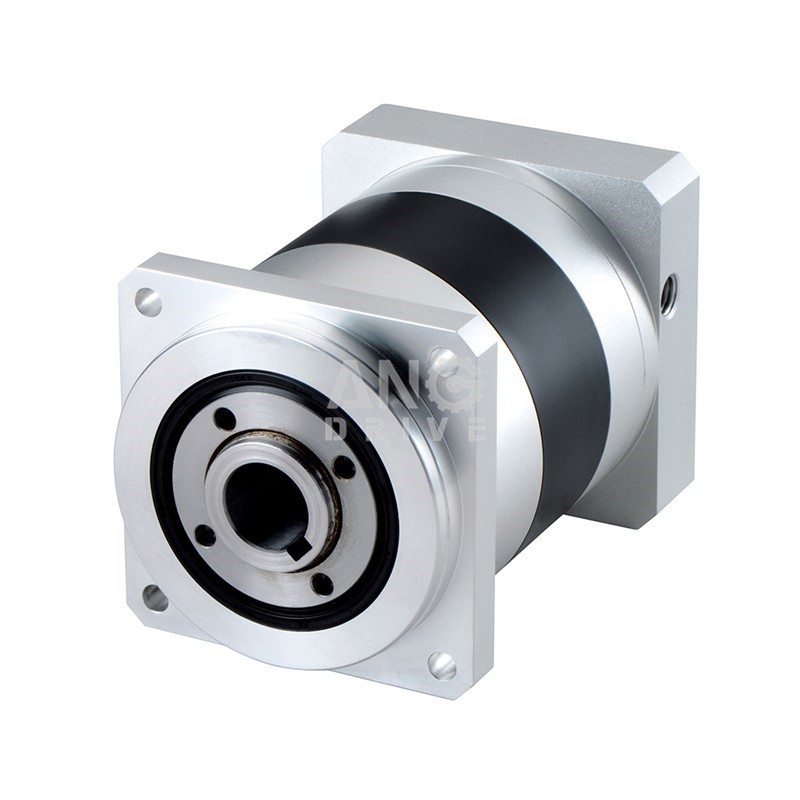

Hollow Shaft Planetary Gearbox

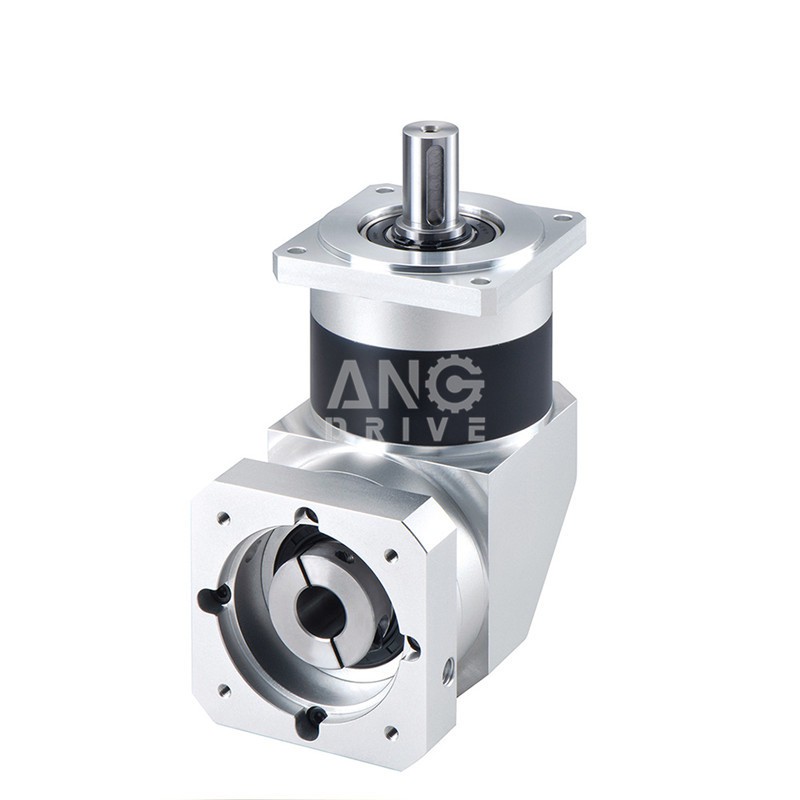

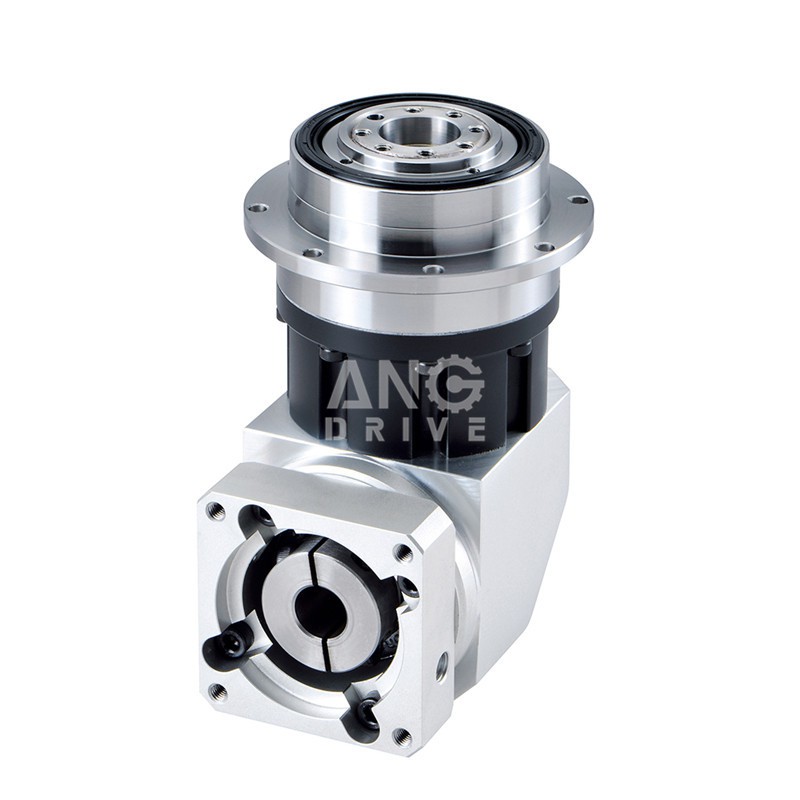

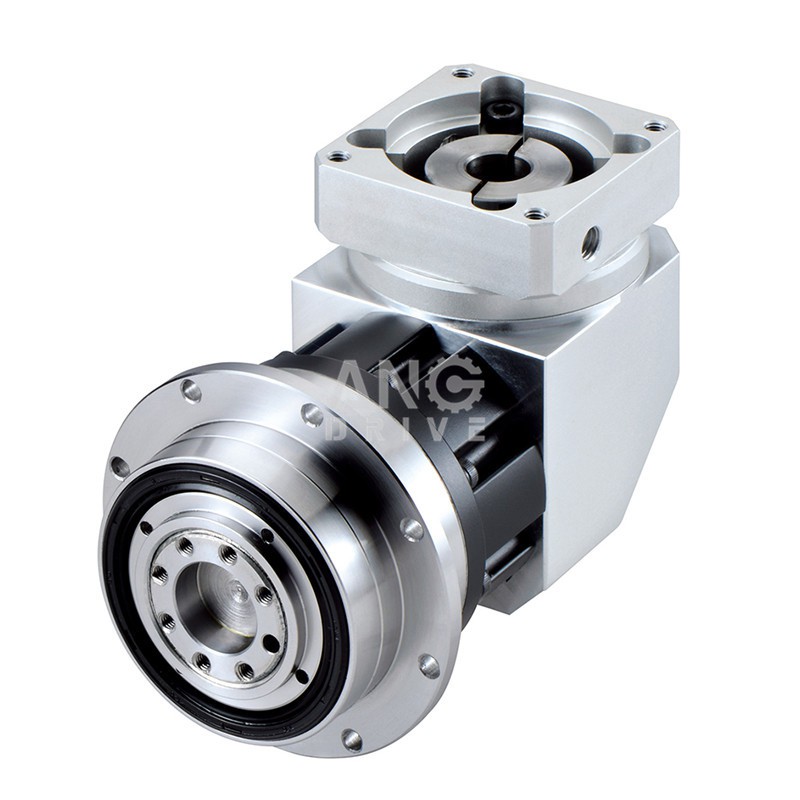

Right Angle Planetary Gearbox

Hollow-shaft Planetary Gearbox

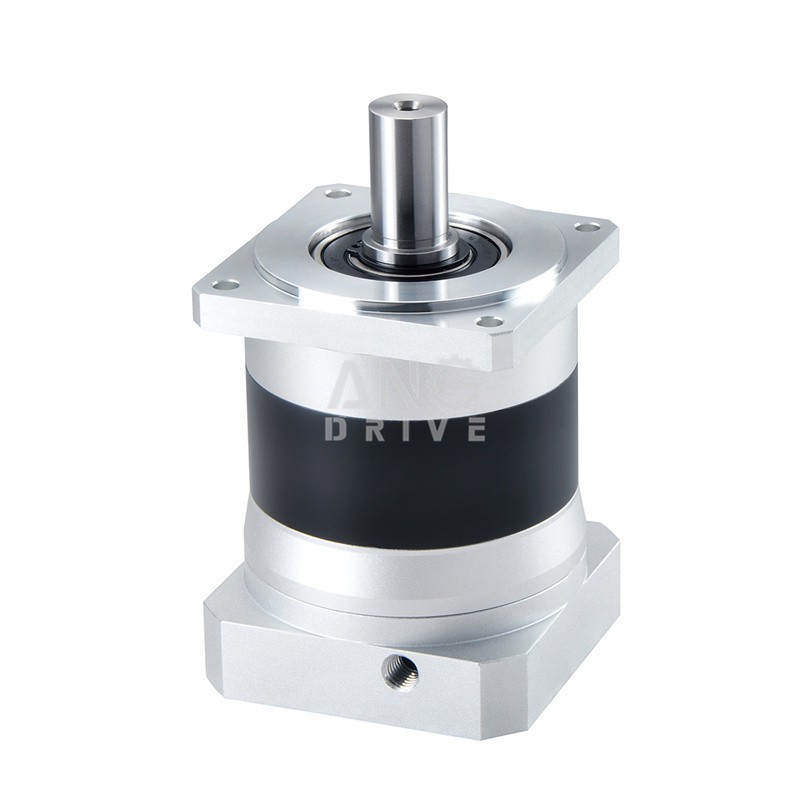

Precision Planetary Gearbox

Precision Planetary Gear Unit

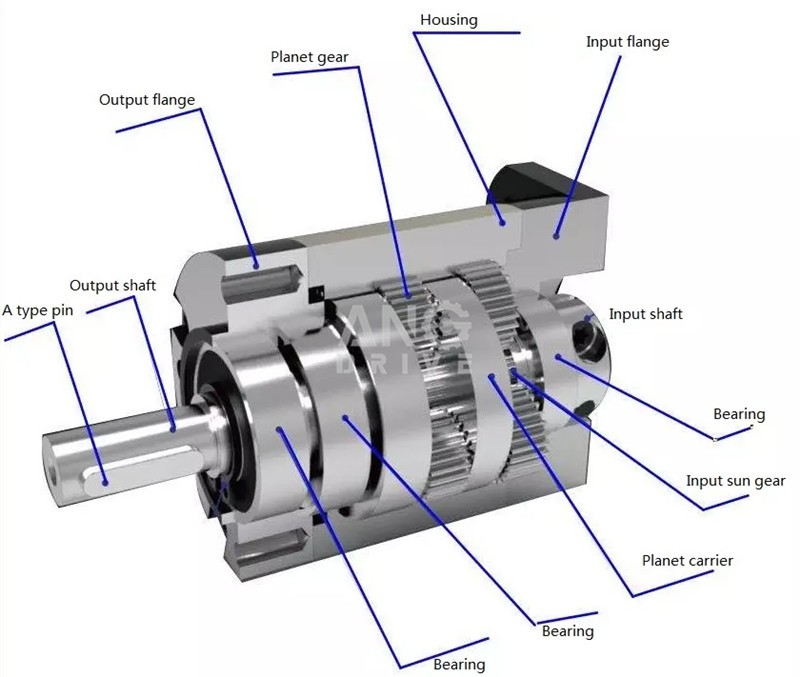

Precision Reducer Structure

General applications

Automatic Industry Arms

CNC Machine

Medical Equipment

FAQ

Q: Can you make the gearbox with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.

Q: Do you provide samples?
A: Yes. The sample is available for testing.

Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
