Worm Gearox For Packer
video

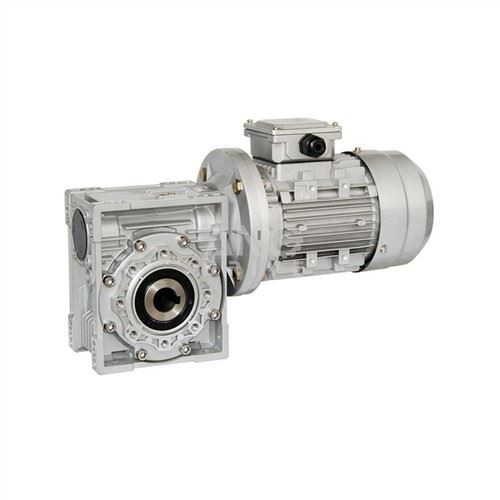

Worm Gearox For Packer

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of Worm Gearbox For Packer, which is free from oil leakage, low noise, low-temperature rise, long service life, etc.
Send Inquiry
Product Introduction

Quality is the basis of brand realization.

The company now has a group of front-line employees and production managers with more than ten years of casting experience. Their precise control of each process is the premise of ensuring quality. Customizing the quality of products and demanding the perfection of each process is the basic way for ANG people to ensure quality, and is also the premise for us to upgrade the status of the industry and realize customer reputation and brand recognition.



Model






Worm Gearbox For Packer Characteristics

1.RV - Sizes:030-040-050-063-075-105-110-130-150

2.Input Options: with input shaft, With Square flange, With Input Flange

3.Input Power 0.06 to 11 kW

4.RV-Size from 030 to 105 in die-cast aluminum alloy body and over 110 in cast iron

5.Ratios between 5 and 100

6.Max torque 1550 N.m and admissible output radial loads max 8771 N

7.Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity

8.Worm wheel: Copper (KK Cu).

9.Loading capacity by: ISO 9001:2015/GB/T 19001-2016

10.Size 030 and over are painted with RAL 5010 blue

11.Worm gear reducers are available with different combinations: NMRV+NMRV, NMRVpower+NMRV, JWB+NMRV

NMRV, NRV+VS, NMRV+AS, NMRV+VS, NMRV+F

12.Options: torque arm, output flange, Viton oil seals, low/high-temperature oil filling/drain/breather/level plug.



Details Images



NMRV structure



NMRV worm gear box new designNRV worm gearboxNMRV worm gearbox and output flange

NMRV worm gearbox with output ShaftNMRV worm gearbox nema flangeNMRV worm gearbox with Torque Arm

DC worm gear motorDC brushless worm gear motorAC worm reducer motor

Products Description

NMRV REDUCER



Catalog for NMRV gearbox

NMRV Diameter of Shaft1

NMRV Drawing1

Our Advantages

NMRV

Company Profile

ANJO

gear motor

Honor And Qualification

Motor certificates

Production and Delivery



Production and testing

Product packing

Related Products

contact

small ac motorSmall gear motordc gear motorac motormedium gear motorSERVO MOTORstepper motor

helical gear motorrc gearboxnmrv gearboxhypoid gearboxwp gearboxindustrial gearboxplanetary gearbox

screw jack gearboxbevel gearboxpc gearboxshaft mounted gearboxhanging gearboxcontrollervibration motor



udl gearboxirrigation gear motorbldc motorprecision gearboxstainless steel gearboxstainless steel motorstainless steel gear motor

FAQ

FAQ

modular-1
More products and information

Product page is only part of our products, if you do not find a suitable product, please contact our sales staff for consultation.

Send Inquiry Now



Hot Tags: worm gearox for packer, China, suppliers, manufacturers, factory, wholesale, price
