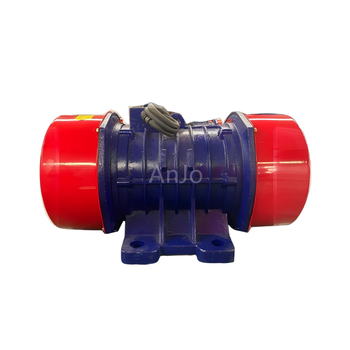

VB-322-W Vibration Motor

VB-322-W Vibration Motor General specification:

Model Type	VB
Phase	3 phase
Vibratory Force	3 KN
Rated Power	0.2 KW
Speed	2600 RPM
Installation dimension	160*90 MM
Rated Voltage	220/380V/400V/660V
Duty	Continuous S1
Frequency	50/60 HZ
Protection Class	IP54/IP55
Insulation Class	B/F/H



As a core power component in the field of industrial vibration, the reliability of VB vibrating motors directly affects the overall operational efficiency of the equipment. Selection must be based on the dynamic parameters of the application, and regular maintenance during use can significantly extend their service life (typically reaching 8,000 to 15,000 hours or more). For special environments (such as explosion-proof or high-temperature conditions), corresponding specialized models must be selected.



Common Fault Handling

Fault Symptom	Possible Cause	Solution
Reduced Vibration	Eccentric Block Shift	Readjust the angle between eccentric blocks
Abnormal Noise	Bearing Damage or Loose Bolts	Replace bearing / Tighten bolts
Motor Overheating	Overload or Poor Lubrication	Check load / Replenish grease
Oil Leakage	Seal Aging	Replace oil seal



Adjustable Force & Flexibility

Stepless Adjustment: 0%-100% vibration force via eccentric block angle adjustment (for screening/feeding).

Multi-Motor Sync: Multi-motor config for linear/circular/elliptical vibration (fits screens, feeders).

---

Full Specs & Wide Use

Models: 50+ standard models, 0.12-25KW, 2/4/6/8 poles optional.

Cross-Industry Apps

Metallurgy: Ore screening (10,000t/h capacity).

Mining: Coal classification (±0.5mm precision).

Power: Prevents arching in silos/hoppers over 3m.

---

Premium Design & Reliability

Optimized Craft: Steel-molded shell, 15% lower core loss (computer-optimized electromagnetic params).

Heavy-Duty Bearings: SKF/C&U bearings, 20,000h theoretical life (high-load).
