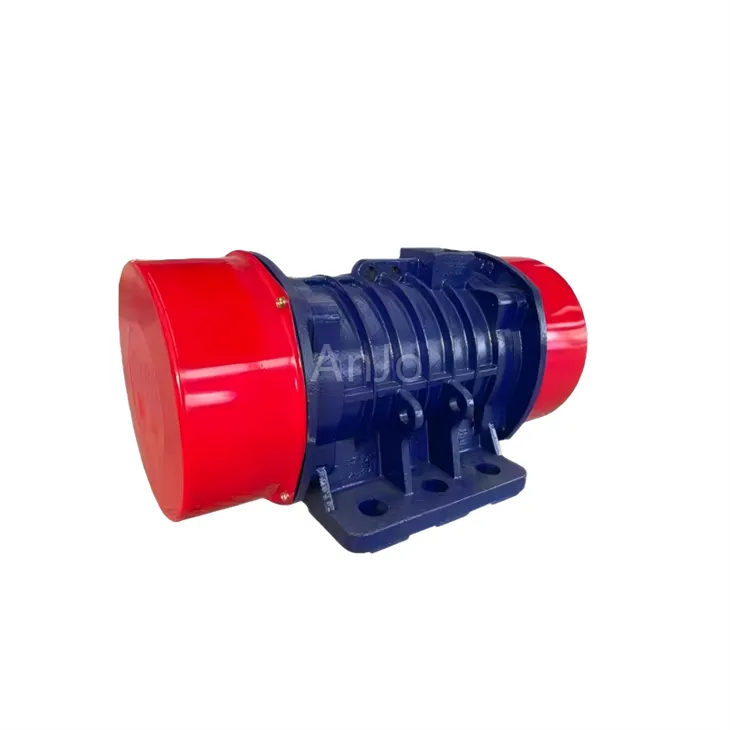

VB-20182-W Vibration Motor

VB-20182-W Vibration Motor General specification:

Model Type	VB
Phase	3 phase
Vibratory Force	20 KN
Rated Power	1.8 KW
Speed	2850 RPM
Installation dimension	260*200 MM
Rated Voltage	220/380V/400V/660V
Duty	Continuous S1
Frequency	50/60 HZ
Protection Class	IP54/IP55
Insulation Class	B/F/H



Usage Precautions

Regular Inspection

Tightness of bolts (recommended weekly check).

Wear and tear of cables.

Bearing temperature.

Lubrication Requirements

Use specialized lubricating grease.

Replace grease after the first 100 hours of operation; thereafter, replenish every 500 hours.

Avoiding Resonance

The natural frequency of the equipment should be kept away from the motor's operating frequency to prevent structural damage.

Storage Requirements

When not in use for extended periods, store in a dry environment. Rotate the shaft manually at regular intervals to prevent bearing rust.



High-Quality Materials and Optimized Design
The motor housing is manufactured using one-time precision casting technology, ensuring exceptional rigidity and structural integrity. Advanced methods such as lost-foam casting or full-steel mold casting are employed to deliver both superior mechanical properties and a smooth, visually refined finish.
The protective cover is formed through a single-stretch molding process, achieving excellent sealing to reliably prevent the ingress of dust and moisture.

Robust and Adjustable Vibration Force
Through thickened and enlarged eccentric blocks, the motor provides enhanced vibratory output compared to conventional models of the same specification.
The excitation force can be continuously and precisely adjusted by altering the angle between the eccentric blocks, allowing flexible adaptation to diverse operational needs.

Efficient, Energy-Saving, and Stable Performance
Designed with a compact and lightweight structure, the motor delivers high starting torque and operational efficiency.
Vibration is generated through smooth rotational motion, resulting in low noise levels during operation.
