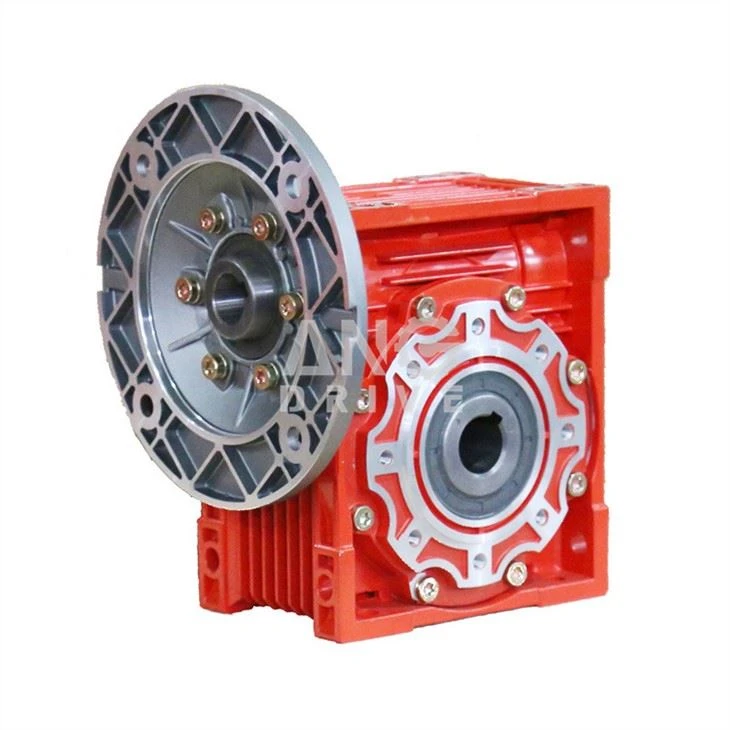

Conveyor Worm Reducer

A conveyor worm reducer, also commonly referred to as a worm gear reducer when used in conjunction with a conveyor system, is a specific type of mechanical transmission device.

Definition and Function

Definition: A conveyor worm reducer is a gear reducer that employs a worm and worm wheel mechanism to reduce rotational speed and increase torque. It is specifically designed for use in conveyor systems.

Function: The main function of a conveyor worm reducer is to match the motor speed to the conveyor speed, ensuring smooth and efficient operation. By reducing the speed, it increases the torque output, making it suitable for driving heavy loads such as those found in conveyor systems.

What is the Operating Principles of Conveyor Worm Reducer?

When the input shaft (connected to the motor) rotates, it drives the worm to rotate.

The worm engages with the worm wheel, causing it to rotate at a slower speed but with increased torque.

The output shaft (connected to the conveyor) rotates at a reduced speed, driving the conveyor belt or chain to move the material.

Key Components

Worm: A spiral-shaped gear that engages with the worm wheel. It has fewer teeth than the worm wheel, which allows for a reduction in speed and an increase in torque.

Worm Wheel: A gear that meshes with the worm. It has a larger diameter and more teeth than the worm, providing the necessary torque to drive the conveyor.

Gearbox Housing: Encloses the worm and worm wheel, protecting them from dirt and debris while providing a stable environment for their operation.

Lubrication System: Ensures that the worm and worm wheel are adequately lubricated, reducing friction and wear.

Considerations for Use

When selecting a conveyor worm reducer, consider factors such as the required torque, speed reduction ratio, and operating environment.

Ensure proper installation, alignment, and lubrication to maximize performance and longevity.

Regularly inspect and maintain the reducer to prevent premature failure.

In summary, a conveyor worm reducer is a crucial component in conveyor systems, providing the necessary torque and smooth operation to drive heavy loads efficiently. By understanding its definition, function, key components, operating principles, applications, benefits, and considerations for use, you can ensure optimal performance and longevity in your industrial applications.

1. Large transmission ratio: It can achieve a larger reduction ratio. Generally, the single-stage transmission ratio can be between 5:1-100:1, and the two-stage transmission ratio can reach 100:1-3600:1, etc.
2. Compact structure: Compared with other types of reducers, under the same transmission ratio and torque output, it is smaller in size and lighter in weight, which is convenient for installation on conveying equipment with limited space.
3. Self-locking: When the helix angle of the worm is less than the equivalent friction angle of the meshing surface, the worm gear reducer has a self-locking function, which can prevent the reversal of equipment such as conveyor belts in the event of power outages or other accidents, thereby improving the safety of the conveying system.


1. High Torque Output: The meshing of the worm and worm wheel enables the reducer to output high torque,
2. Low Noise Level: The meshing process of the worm and worm wheel is relatively smooth, resulting in small impact and vibration, thus generating low noise.
3. Compact Structure: Compared with other types of reducers, for the same transmission ratio and torque output, the conveyor worm reducer has a smaller volume and lighter weight.
