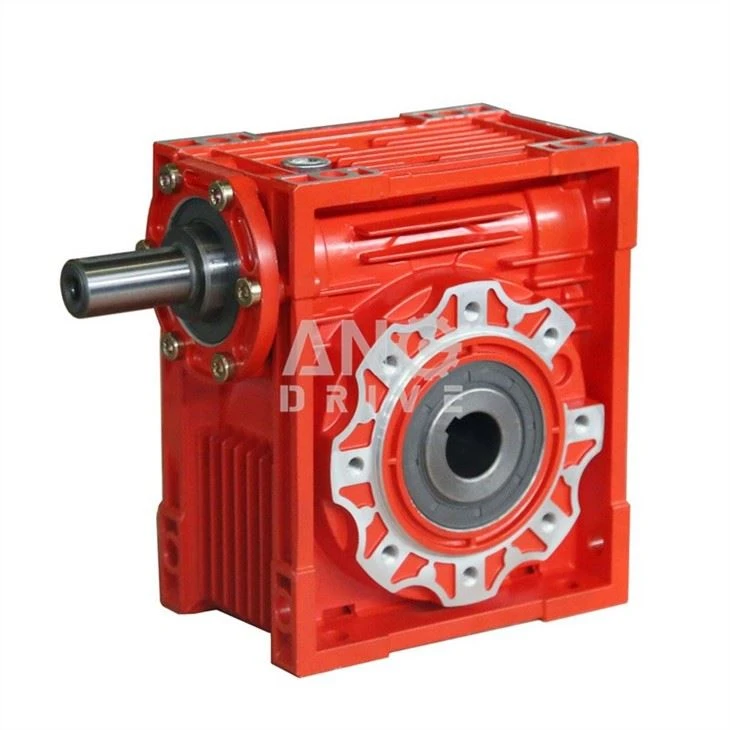

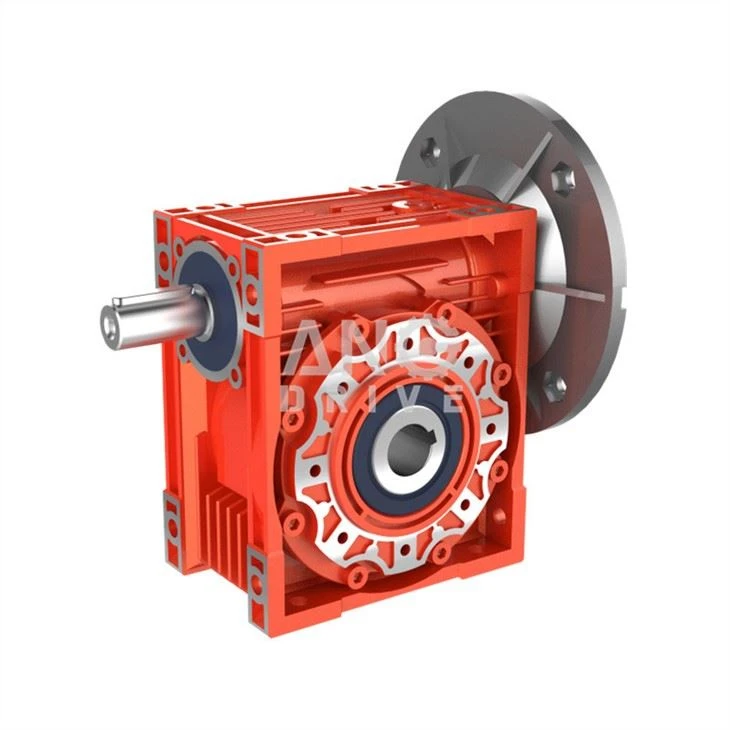

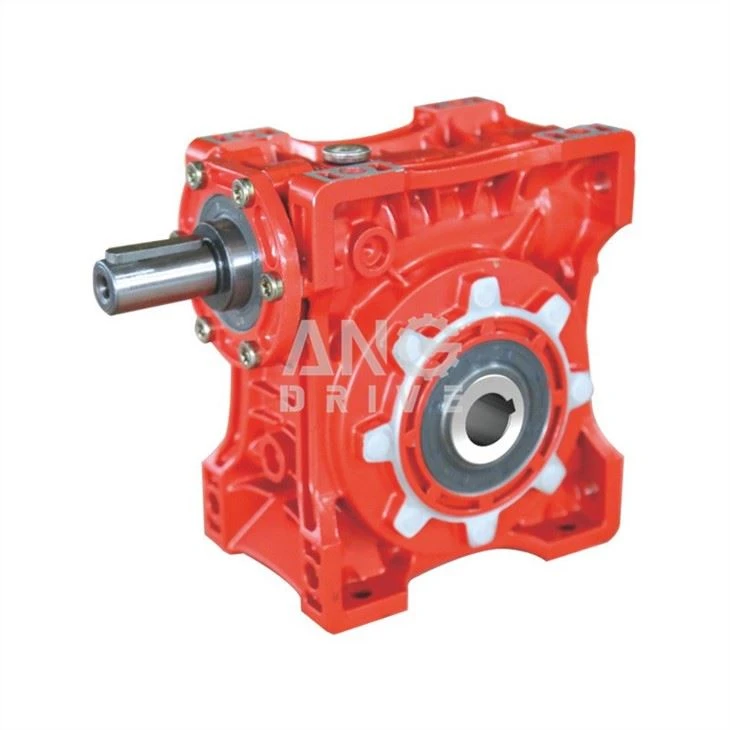

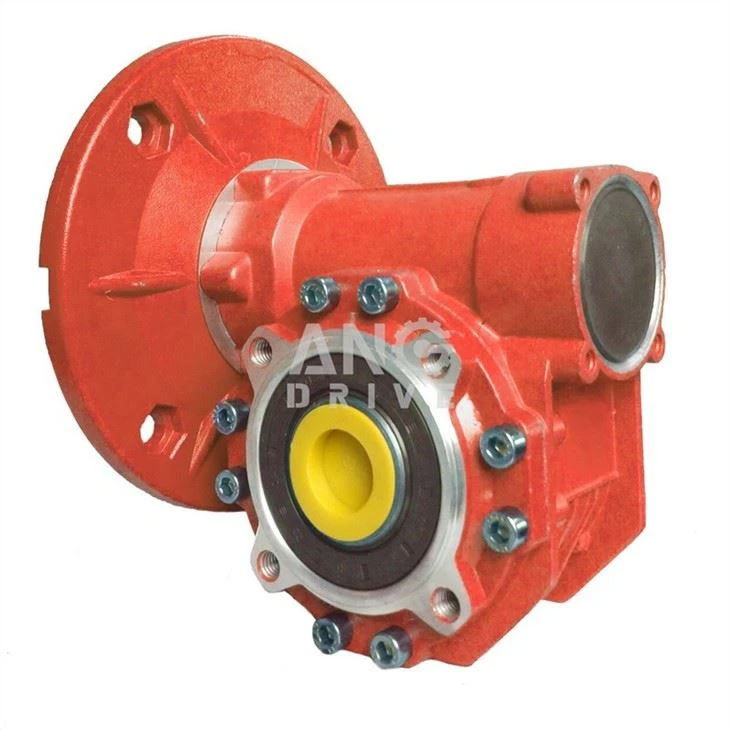

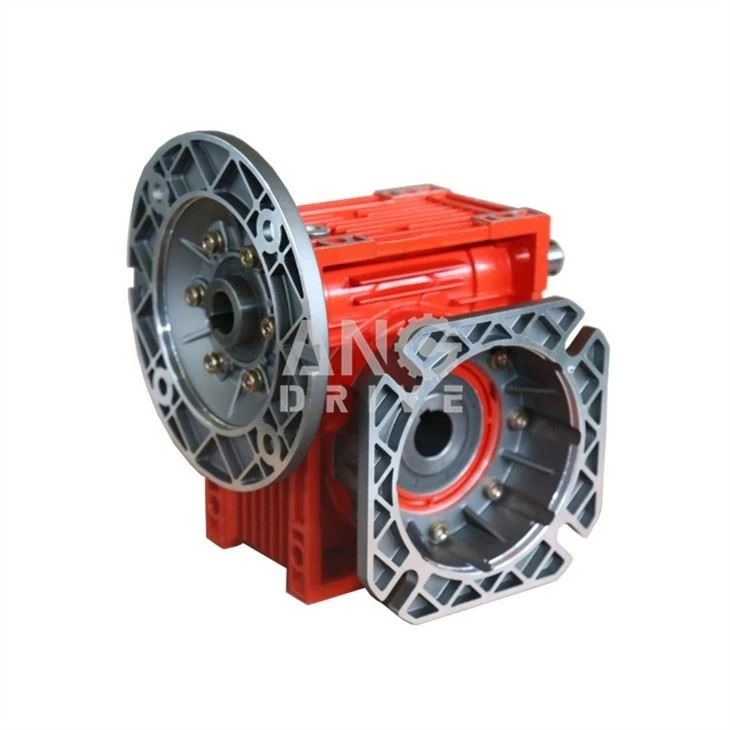

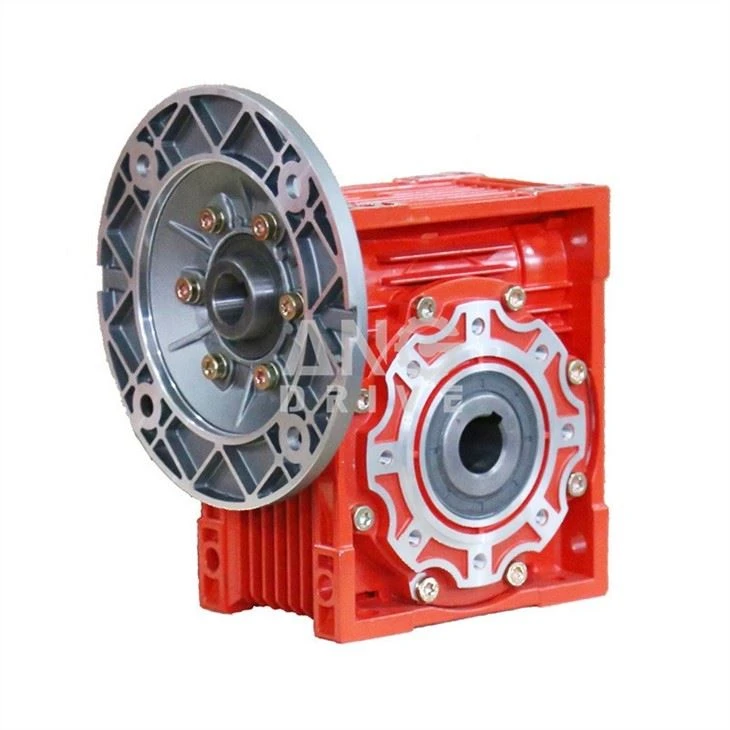

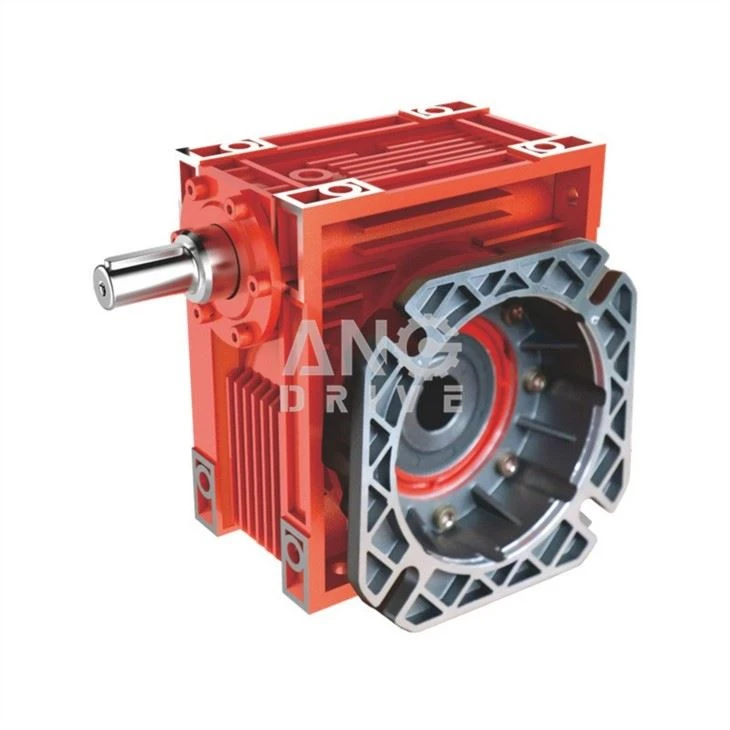

NMRV Reductor
Technical parameters of NMRV reductor:
Model number | NMRV 025 ~ 150 or 2 stage reductor like 030/063 |
Motor power | 0.06 kw ~ 15 kw |
Input speed | 750rpm ~ 1800rpm |
Gear ratio | 1/5 ~ 1/100 (single stage) |
Motor type | AC (1 phase or 3 phase) / DC / BLDC / Stepper / Servo |
Output type | Solid shaft / Hollow shaft / Output flange… |
Dimension | Metric size / Inch size |
Material of housing | die-cast aluminum / Cast iron / Stainless steel |
Accessories | Flange / Solid shaft / Torque arm / Cover … |
Features of NMRV reductor:
1. Made of high-quality aluminum alloy, light in weight and non-rusting.
2. Smooth in running and low in noise, can work a long time in dreadful conditions.
3. High in radiating efficiency.
4. Good-looking in appearance, durable in service life, and small in volume.
5. Suitable for Omni-bearing installation.
Main Materials of NMRV reductor:
1. Housing: Die-cast aluminum alloy(frame size 025-090); cast iron(frame size 110-150)
2. Worm shaft: 20CrMnTi, carbonize heat treatment make the hardness of gear's surface up to 56-62 HRC. Retain carburization layer's thickness between 0.3 and 0.5mm after precise grinding
3. Worm wheel: wearable tin bronze alloy
