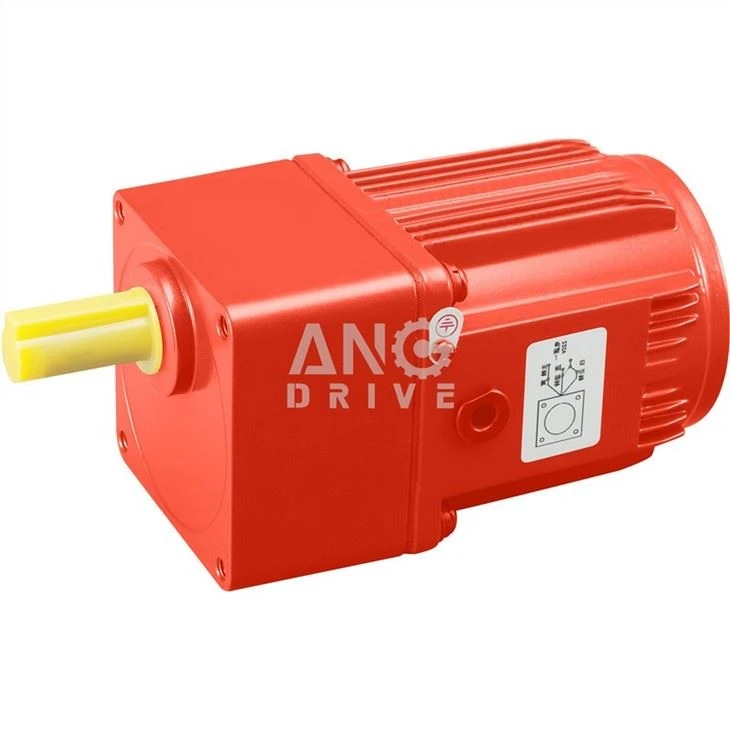

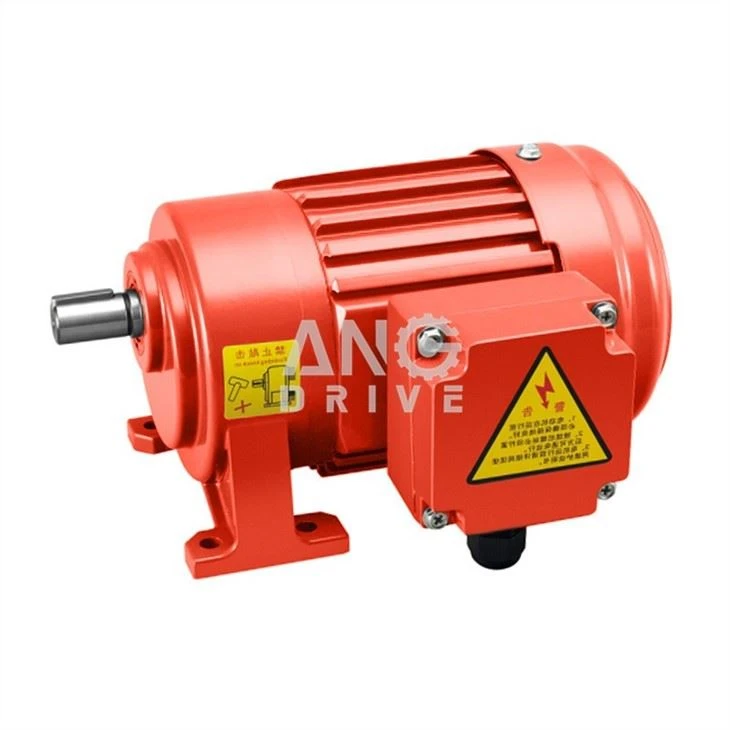

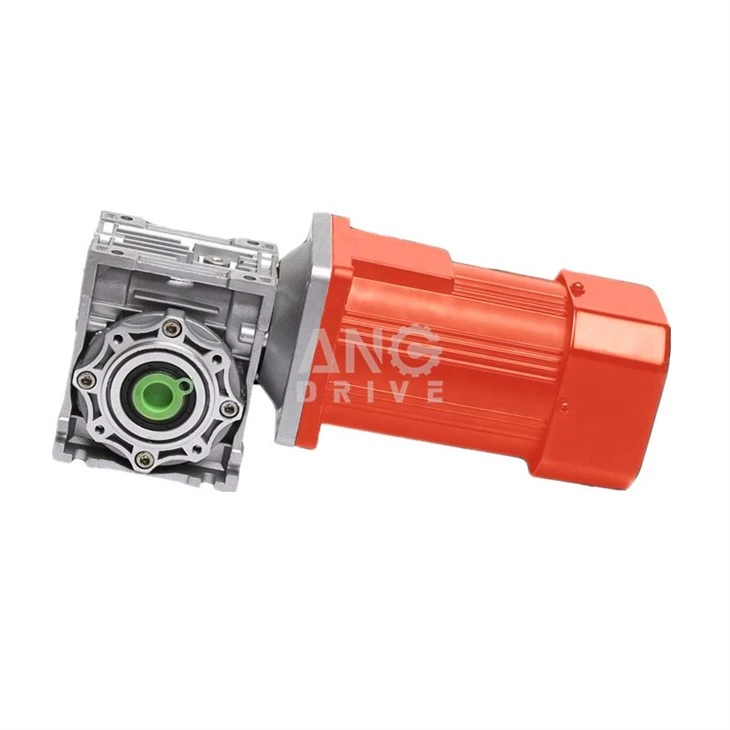

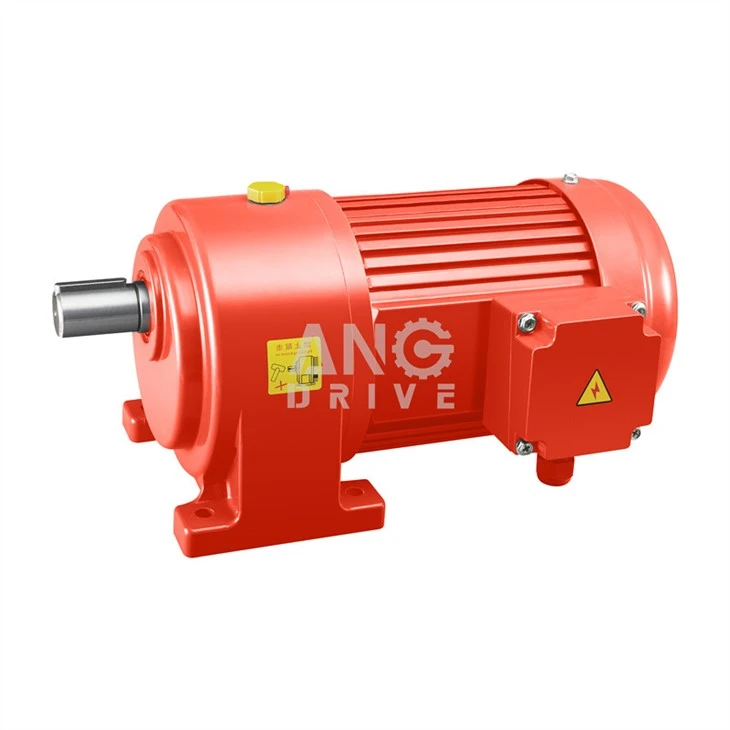

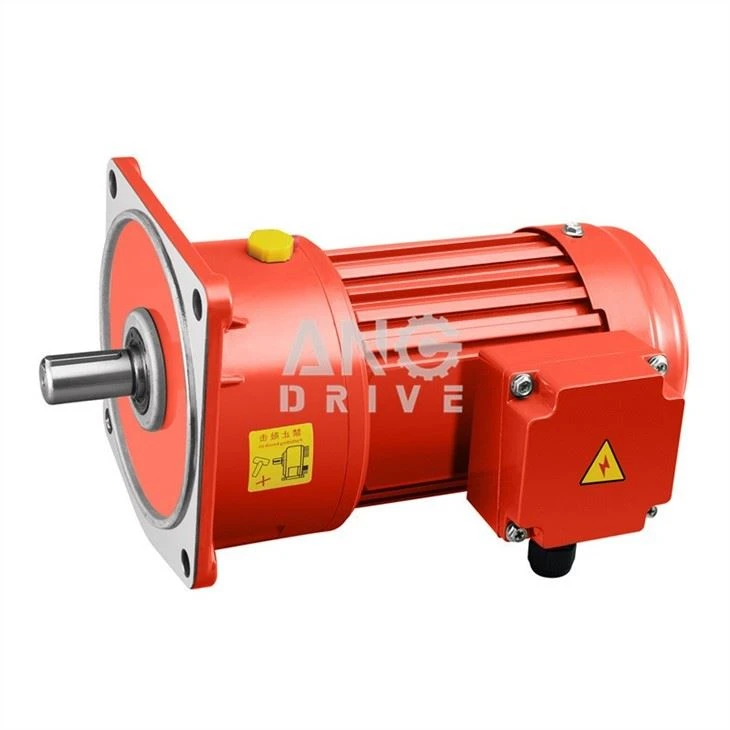

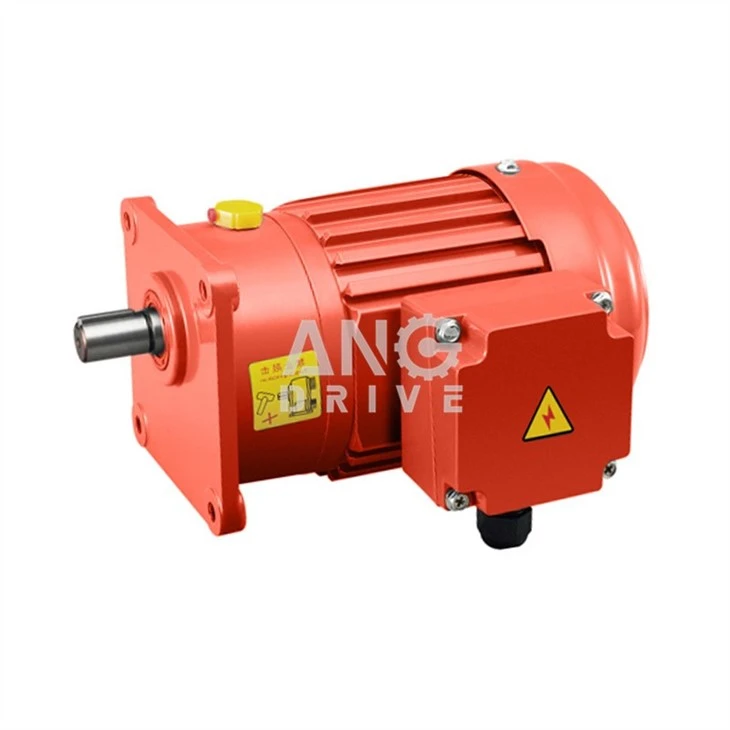

0.75KW Geared Motor
video

0.75KW Geared Motor

ANG Drive manufactures 0.75kW geared motors with multiple gear ratios, voltage options, output speeds and mounting configurations. Custom AC gear motors are available for industrial machinery. Contact us for specifications and quotations.
Send Inquiry
Product Introduction
The 0.75kW geared motor combines an AC motor with a reduction gearbox to provide suitable output speed and torque for industrial machinery. Different gear ratios, voltage options, output shaft designs and mounting configurations are available to meet various application requirements. Customized configurations are also available.

Products Features

1. Multiple Gearbox Configurations

Available with parallel shaft, right angle and other gearbox arrangements to suit different equipment layouts and installation requirements.

2. Flexible Reduction Ratios

Different gear ratios are available to achieve the required output speed and torque. Single-stage and multi-stage reduction options can be selected according to the application.

3. Multiple Motor Options

Available in single-phase and three-phase AC motor configurations, with different voltage and frequency options to meet regional power supply requirements.

4. Flexible Installation Options

Different mounting arrangements, including B3, B5 and B14, are available depending on the motor and gearbox configuration.

5. Optional Accessories

Brake, speed controller and other accessories can be selected according to operating requirements.

Details Images

010206

Products Description

Parameter

Specification

Product Name

0.75kW Geared Motor

Rated Power

0.75kW / 1HP

Motor Type

AC Induction Motor

Phase

Single Phase / Three Phase

Voltage

220V / 380V / Customized

Frequency

50Hz / 60Hz

Rated Speed

1400rpm / 1500rpm (50Hz configurations, as applicable)

Reduction Ratio

3:1–200:1 (depending on gearbox)

Gearbox Type

According to configuration

Output Shaft

Solid Shaft / Hollow Shaft

Optional Accessories

Brake / Encoder / Other options

Catalog for small gear motor

Our Advantages

-



Company Profile

ANJO

gear motor

Honor And Qualification

Motor certificates

Production and Delivery



Production and testing

Product packing

Related Products

contact

small ac motorSmall gear motordc gear motorac motormedium gear motorSERVO MOTORstepper motor

helical gear motorrc gearboxnmrv gearboxhypoid gearboxwp gearboxindustrial gearboxplanetary gearbox

screw jack gearboxbevel gearboxpc gearboxshaft mounted gearboxhanging gearboxcontrollervibration motor



udl gearboxirrigation gear motorbldc motorprecision gearboxstainless steel gearboxstainless steel motorstainless steel gear motor

FAQ

Q1: What is a 0.75kW geared motor used for?

A 0.75kW geared motor is used to drive industrial equipment that requires reduced output speed and increased torque. Common applications include conveyors, packaging machines, mixers and automated production equipment.

Q2: Can I customize the gear ratio of a 0.75kW geared motor?

Yes. Different reduction ratios are available. Please provide your required output speed or gear ratio so we can recommend a suitable configuration.

Q3: Is the 0.75kW geared motor available in single-phase and three-phase versions?

Yes. Single-phase and three-phase motor configurations are available, depending on the motor series. Voltage and frequency can be selected according to your requirements.

Q4: Can you supply a 0.75kW geared motor with a brake?

Yes. Brake motors are available as an optional configuration. Please confirm the required voltage and braking requirements.

Q5: Are you a manufacturer of 0.75kW geared motors?

Yes. Hangzhou ANG Drive Co., Ltd. is a motor and gearbox manufacturer in China. We provide standard and customized geared motor solutions for industrial applications.
