Cycloidal Drive

Cycloidal Drive Product Introduction

A cycloidal drive, also known as a cycloidal speed reducer, is a mechanical device designed to reduce the speed of an input shaft while increasing torque. It operates based on the principle of cycloidal motion, which involves the movement of a point on a circle as it rolls along a straight line or another circle. This unique mechanism enables cycloidal drives to offer several distinct advantages over traditional gear-based speed reducers.

1.Compact Design: Cycloidal drives are engineered to be highly compact, making them suitable for applications where space is limited. Their efficient design allows for a high reduction ratio within a relatively small footprint, making them ideal for use in robotics, automation, and other precision machinery.​

2.High Torque Capacity: These drives are capable of handling high torque loads, making them suitable for applications that require substantial power transmission. The cycloidal motion distributes the load evenly across multiple teeth, resulting in a high torque output relative to the size of the drive.​

3.Low Backlash: Cycloidal drives are designed to have minimal backlash, which is the play or clearance between meshing gears. This makes them ideal for applications where precise positioning and accurate motion control are critical, such as in machine tools and robotics.​

4.Smooth Operation: The cycloidal motion of the drive results in smooth and continuous operation, reducing vibration and noise levels. This makes them suitable for applications where quiet operation is desired, such as in medical equipment and office machinery.​

5.High Efficiency: Cycloidal drives are designed to be highly efficient, with power transmission efficiencies typically ranging from 90% to 95%. This makes them an energy-efficient choice for a wide range of applications.

1.Precision and Accuracy: The low backlash and smooth operation of cycloidal drives make them ideal for applications that require precise positioning and accurate motion control. This makes them a popular choice in industries such as robotics, aerospace, and medical equipment.​

2.Durability and Reliability: Cycloidal drives are built to withstand high torque loads and harsh operating conditions, making them a durable and reliable choice for industrial applications. Their robust design and high-quality construction ensure long service life and minimal maintenance requirements.​

3.Flexibility and Versatility: Cycloidal drives are available in a wide range of sizes and configurations, making them suitable for a variety of applications. They can be easily integrated into existing systems and customized to meet specific requirements, providing flexibility and versatility in design.​

4.Energy Efficiency: The high efficiency of cycloidal drives results in reduced energy consumption, making them an environmentally friendly choice for industrial applications. This can lead to significant cost savings over the life of the equipment.​

5.Cost-Effective: Despite their advanced design and high performance capabilities, cycloidal drives are often more cost-effective than traditional gear-based speed reducers. Their compact size, high efficiency, and long service life make them a cost-effective solution for a wide range of applications.

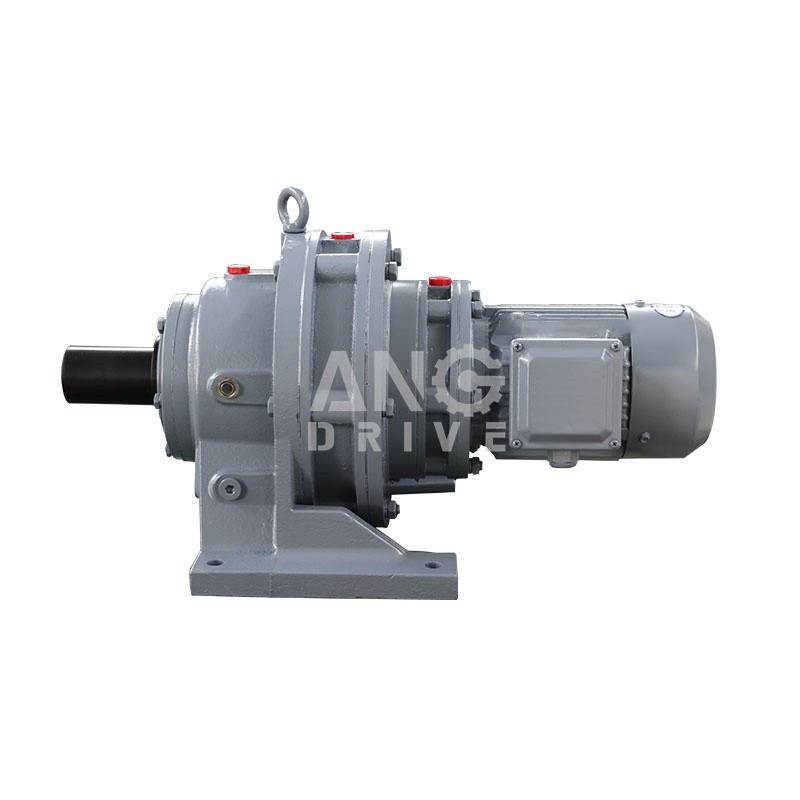

WB series light-duty cycloidal gear motor:
1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
