160 Kw 213 HP Gear Motor
160 Kw 213 HP Gear Motor
160 Kw 213 HP Gear Motor General specification:
ANG Helical Gear Motor | |
Type | K167 ~ 187 |
Input power | 160kw 213HP |
Input speed | 750rpm ~ 3000rpm |
Reduction ratio | 1/12.65 ~ 1/53.36 |
Input motor | AC (1 phase or 3 phase)/ DC/ BLDC motor |
Installation Mode | Foot/ Flange mounted |
Output Torque | 10700 ~ 36400Nm |
Stage | 2, 3 |
Input form | Direct Motor, IEC Standard Motor, Solid input Shaft |
Output form | Solid shaft |
160 Kw 213 HP Gear Motor Industrial Application
Can the gearbox increase the speed?
There are gearboxes that increase the speed in the world. But our gearbox is a reduction gearbox. Increase the torque by reducing the rotation speed.
Speed and torque are inversely proportional.
The k Series combines high efficiency and reliability, low maintenance costs and a wide torque range. The right angle layout between INPUT and OUTPUT makes the K Series particularly compact. The gear set combination makes this right-angle product the most efficient and durable in ANG's light- and medium-duty portfolio. The K Series can be completed with a wide range of electric motors entirely manufactured by ANG. Asynchronous motors both IEC and compact, servomotors and reluctance motors can be coupled with the K Series.

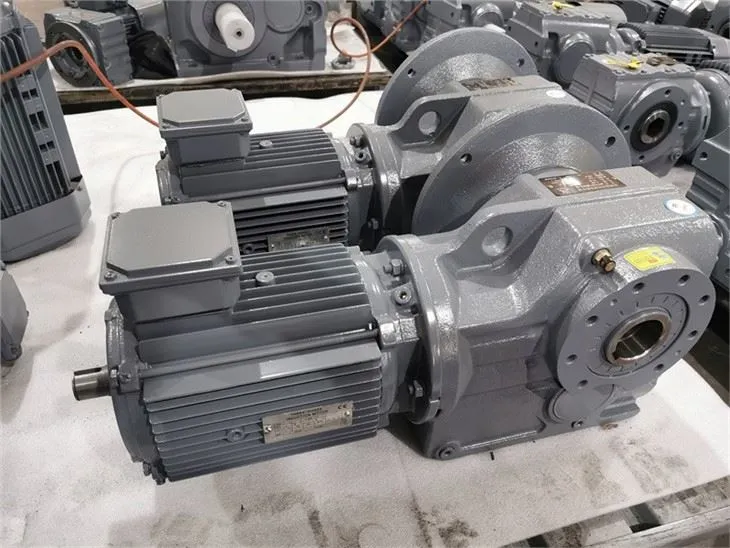

Picture of motor
Why to choose our products?
