Worm
General specification of worm gear reducer:
Model | 025 ~ 150 or double stage like 040/075 |
Power | 0.06kw ~ 15kw |
Input speed | 750rpm ~ 2000rpm S1, can be 3000-4000rpm S2 |
Reduction ratio | 1/5 ~ 1/100 |
Input motor | AC (1 phase or 3 phase) / DC / BLDC / Stepper / Servo |
Output types | Solid shaft / Hollow shaft / Output flange… |
Dimension standard | Metric size / Inch size |
Material of housing | die-cast aluminum / Cast iron / Stainless steel |
Accessories | Flange / Solid shaft / Torque arm / Cover … |

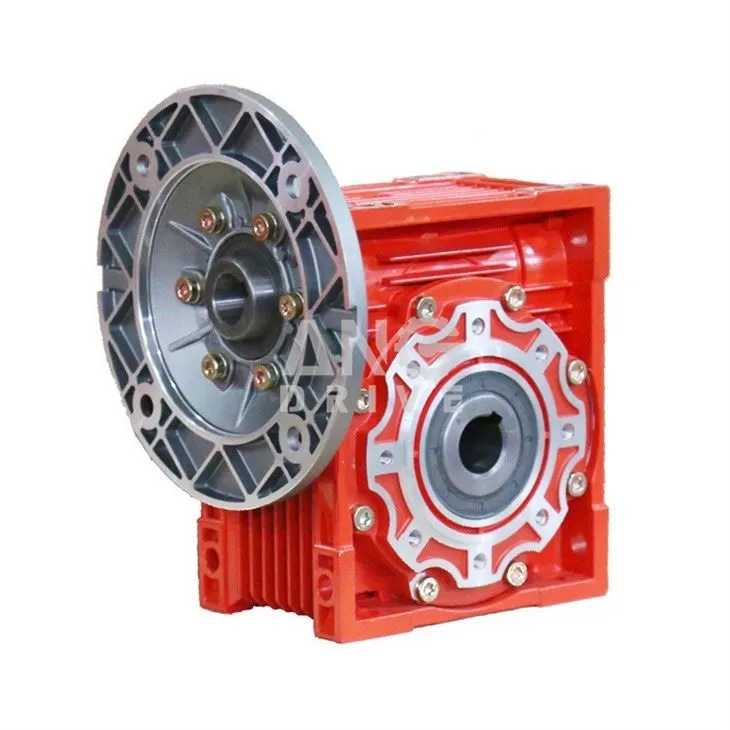

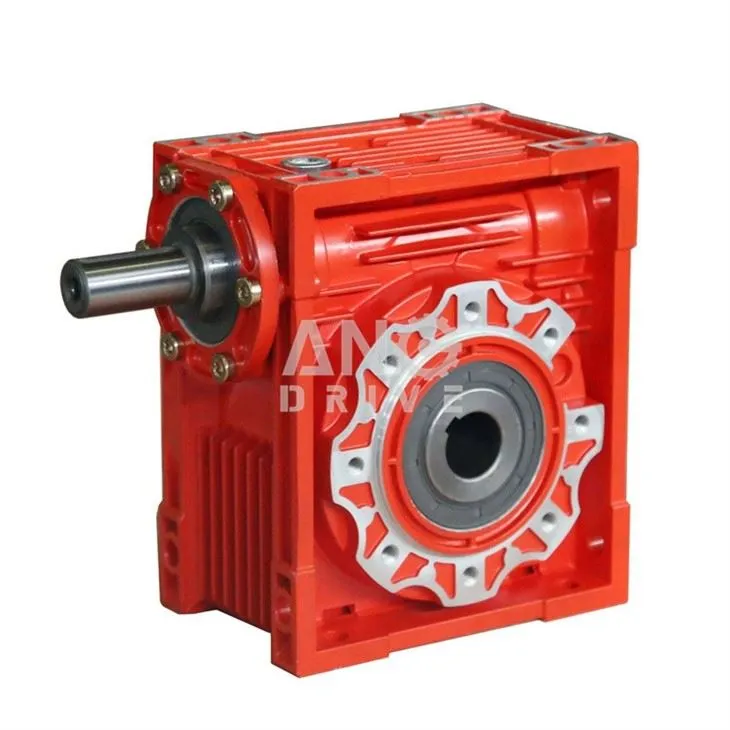

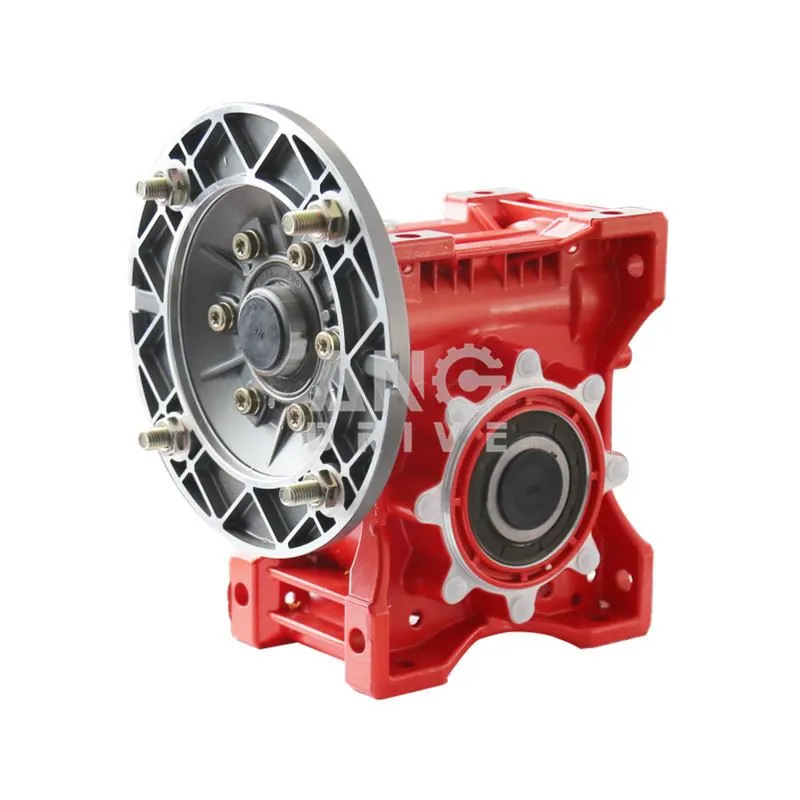

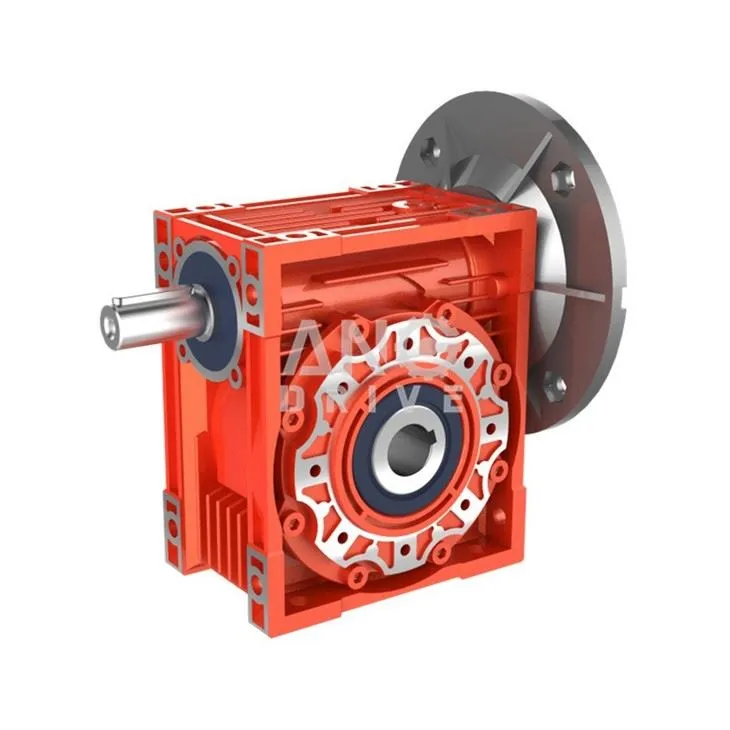

Product photo
Why Choose our worm drive:
Advantages ● Free from oil leakage ● Low noise ● Low temperature rise ● Favorable price ● Long warranty |
|
| Updated configuration
● The gearbox is free from oil leakage ● Total performance is 15% better ● More stiffener ribs for cooling
|
Multiple motor inputs types
● AC motor: 1 phase or 3 phase ● DC brush motor ● DC brushless motor ● Stepper motor ● Servo motor |
|
| Multiple design
● New design like left photo ● Metric size or Inch size ● Square or Round shape ● Aluminum or stainless steel |
| ●High Driving Force ●Stable Performance ●Exquisite appearance ●High efficiency and energy saving |
●Technology for heating processing of #45 steel ●Good hardness ●Strong wear resistance |
|
| ●Beautiful appearance ●Good lacquer
|
●Thick shell ●Heavy weight ●Strong bearing capacity ●Long service life |
|
Some Regular Types:

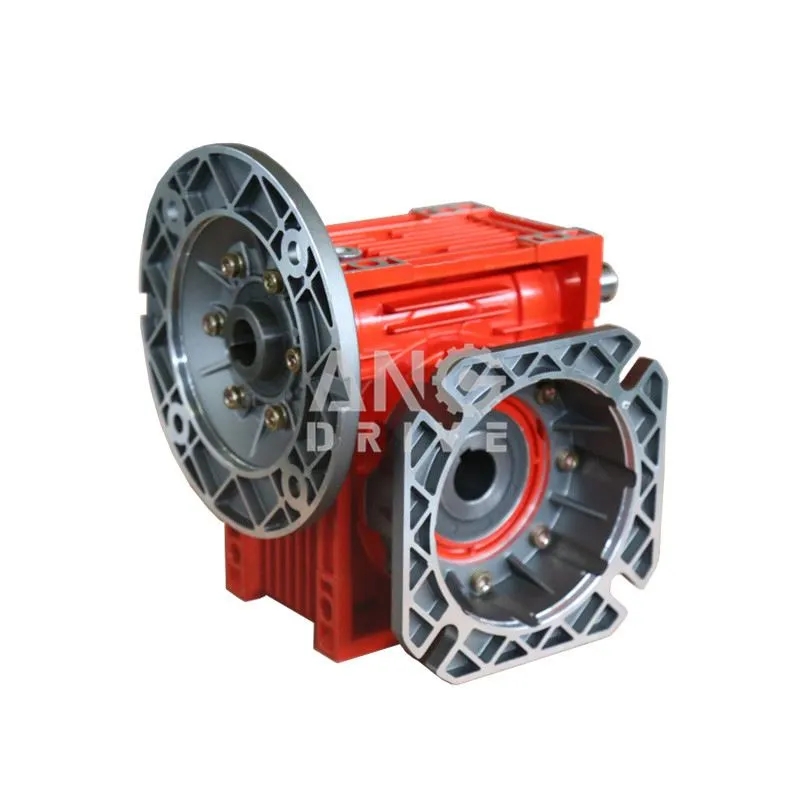

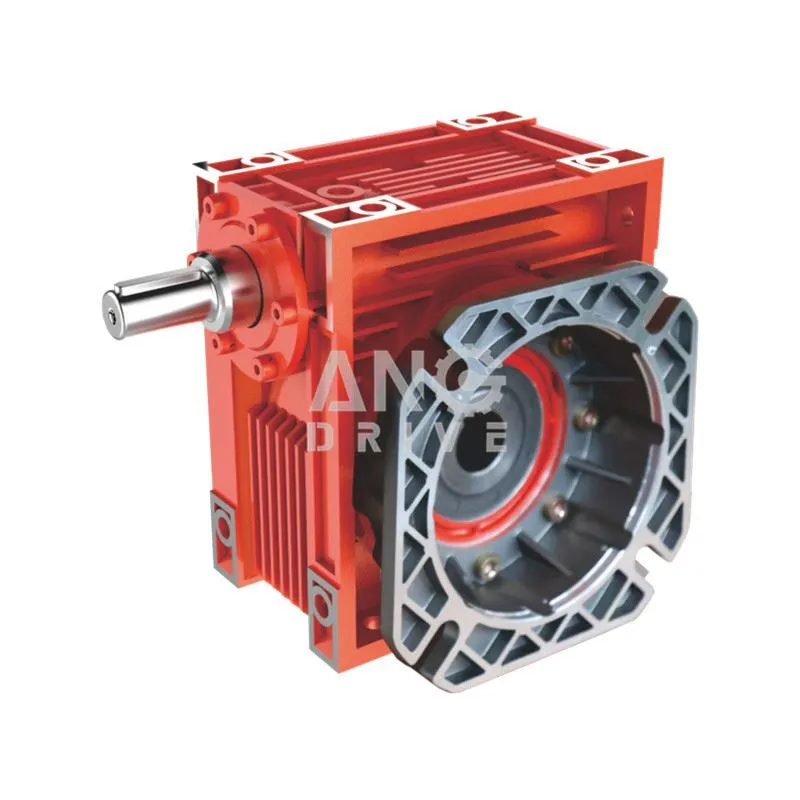

Hollow Shaft | Square Input Flange | Round Input Flange |
|
|
|

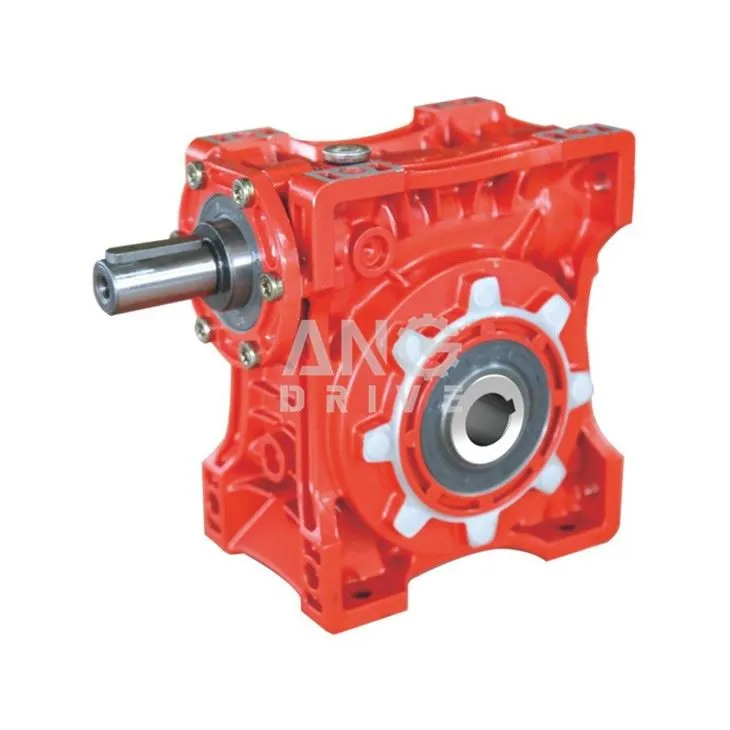

Single Input Shaft | Double Input Shaft | Double Input Shaft with Flange |
|
|
|
FAQ
Q: Can you make the worm reducer with customization?
A: Yes, we can customize per your request, like flange, shaft, color, configuration, material, etc.
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What is your MOQ?
A: It is 20pcs for the beginning of our business.
Q: What is your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company has design and development team, we can provide technical support if you need it.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
