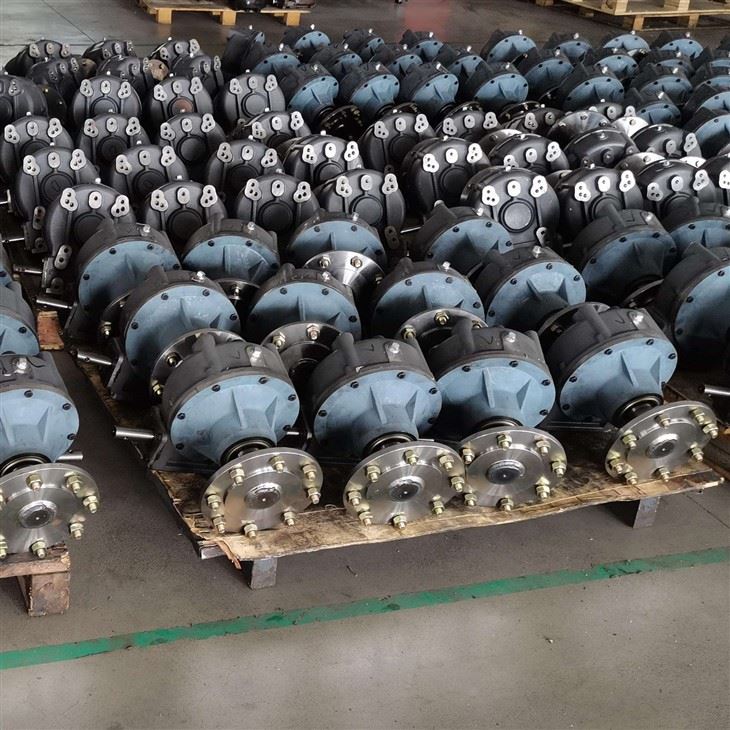

The Valley center pivot gearbox is a crucial component in modern irrigation systems, designed to provide efficient and reliable operation for center pivot irrigation machines.
This gearbox ensures smooth and consistent movement of the pivot, contributing to even water distribution and optimal crop growth.

Send Inquiry

Product Introduction

Products Features

Durable housing resists corrosion and environmental stress.

Smooth torque transmission for reliable sprinkler head rotation.

Compact design for easy integration into existing systems.

Low-maintenance construction with sealed internal components.

Compatible with various drive systems and sprinkler models.

Products Advantages

Long service life: With the selection of high-quality materials and reasonable structural design, and after strict heat treatment and surface treatment processes, the reducer has high wear resistance, fatigue resistance and reliability, and a long service life.

Smooth operation: The gears are precisely processed and assembled, the vibration and noise are small during the transmission process, and the operation is smooth, which can ensure the stable operation of the irrigation equipment.

Strong torque amplification ability: Through different gear combinations and reduction ratio designs, the torque of the motor can be amplified several times or even dozens of times to meet the needs of irrigation equipment for large torque.

Details Images

0.75HP

1.5HP

Model: 740U(short shaft)

Model: TNT gearbox

Model: 740UV(long shaft)

Products Description

Model	Valley center pivot gearbox
Power	0.75HP~2.5HP
Input speed	1500RPM
Ratio	1/50, 1/52
Weight	51-57KG
Input motor	AC(single phase or three phase)
Output type	Solid shaft/ Square flange/ Round flange

WPA175-00-740U00

WPA175-00-740UV00

Model	Irrigation Motor
Hardness	Soft Tooth Surface
Toothed Portion Shape	Double Helical Gear
Reduction Ratio	1/25, 1/30, 1/40, 1/50
Changes Way	Stepped
Type	Worm and Wormwheel
Input Power	0.75HP, 1.5HP
Weight	25KG
Warranty	1 year
HS code	8483409090
