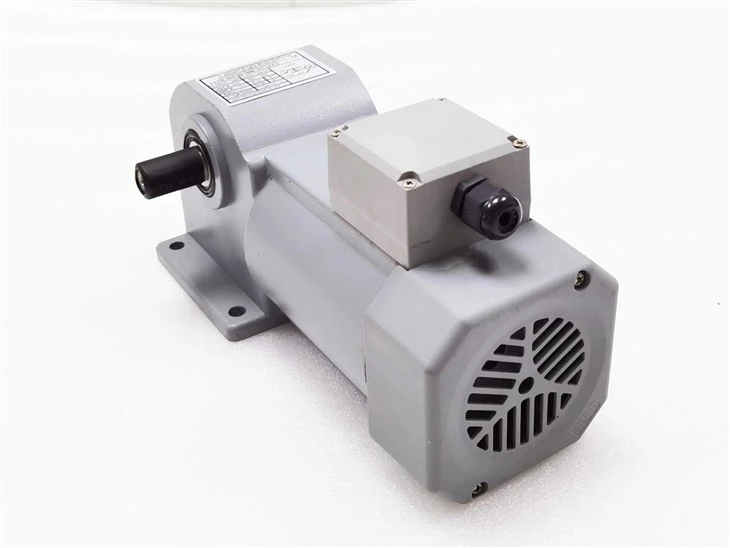

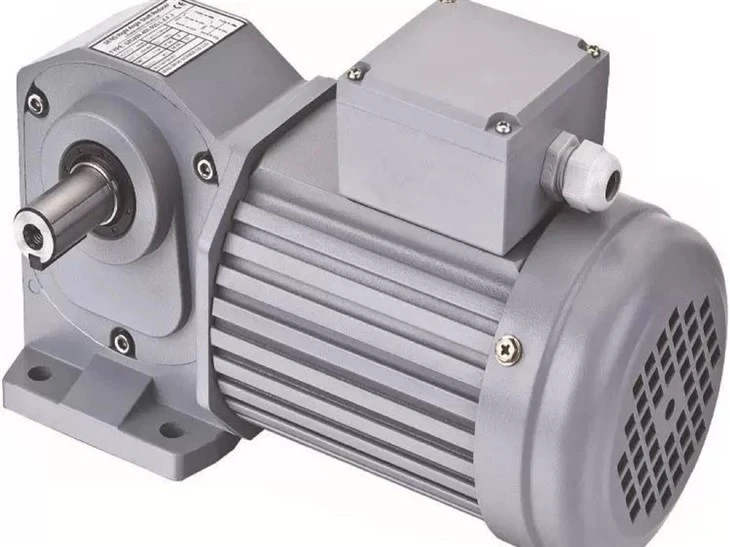

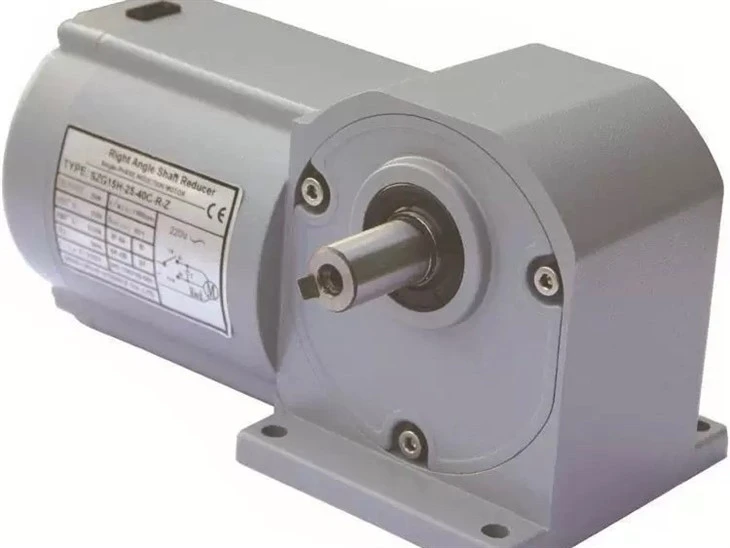

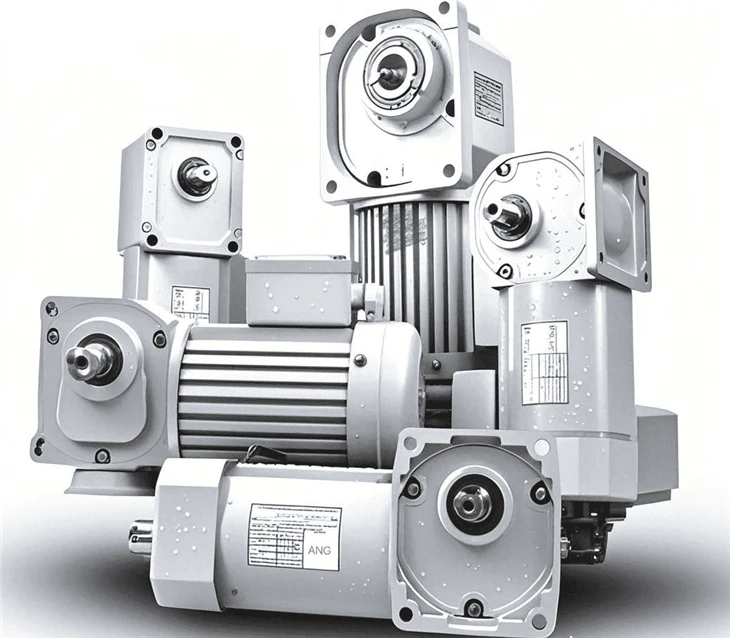

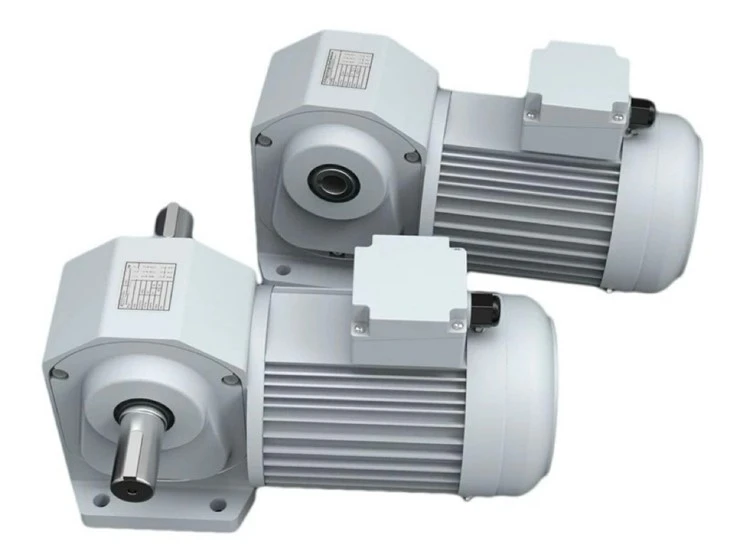

Right Angle Bevel Helical Gear Motor

Product Introduction of Right Angle Bevel Helical Gear Motor​

Right Angle Bevel Helical Gear Motor, a widely - used power transmission device in the industrial transmission field, is mainly used to change the direction of power transmission and achieve the functions of speed reduction and torque increase during this process, meeting the operation requirements of different mechanical equipment.​

Its working principle is to use bevel gears to achieve a 90 - degree change in the power direction, while helical gears are responsible for speed reduction. Through a clever gear combination design, this motor can convert the high - speed rotation output by the motor into low - speed and high - torque output, providing stable and suitable power support for various devices.

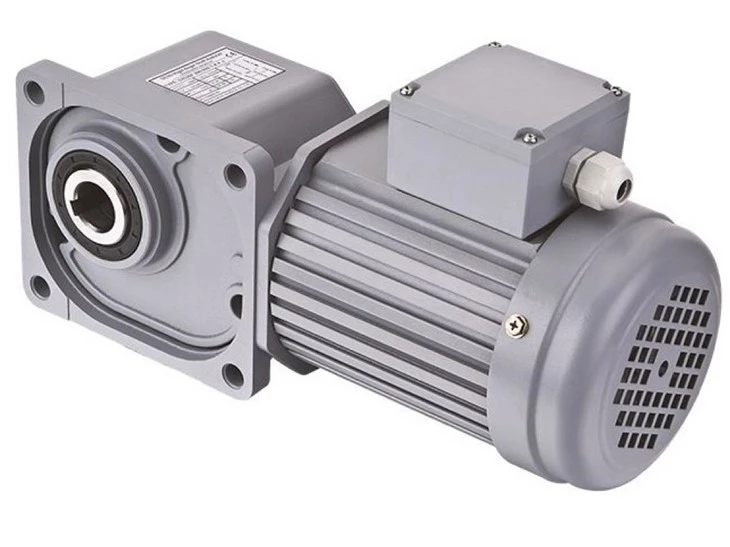

Compact Structure Design: With a unique right - angle layout, a compact spatial structure is formed between the input and output, which greatly saves installation space and is especially suitable for equipment with strict space requirements.​

Multiple Input Modes: It supports two methods, namely motor connection flange and shaft input. You can flexibly choose according to different application scenarios and equipment requirements, which is convenient for connecting with various power sources.​

High - Precision Gear Manufacturing: The gears are made of high - quality alloy steel and processed by precision processes such as carburizing, quenching, and grinding. The tooth surface has high hardness and precision, ensuring smooth and accurate transmission.​

Wide Range of Transmission Ratios: It has a wide range of transmission ratios with fine division, which can meet various working conditions from low - speed high - torque to high - speed low - torque, and has rich application scenarios.​

Modular Design Concept: Based on modular design, it has a variety of combination methods, installation types, and structural designs, which is convenient for customization according to actual usage conditions and improves the overall adaptability of the equipment.

Green - Friendly Design: During the manufacturing process, environment - friendly lubricating materials are selected to reduce harmful substance emissions. At the same time, the heat - dissipation structure of the motor is optimized, reducing energy consumption while also reducing the additional energy consumption caused by heat - dissipation requirements.

High Load - Bearing Capacity: Made of high - strength materials and processed by special processes, it has a strong load - bearing capacity and can operate stably in high - load and high - pressure working environments.​

Smooth Operation and Low Noise: The gears are finely meshed and combined with an optimized structural design. The operation process is smooth and the generated noise is extremely low, providing a quiet and comfortable working environment for operators.​

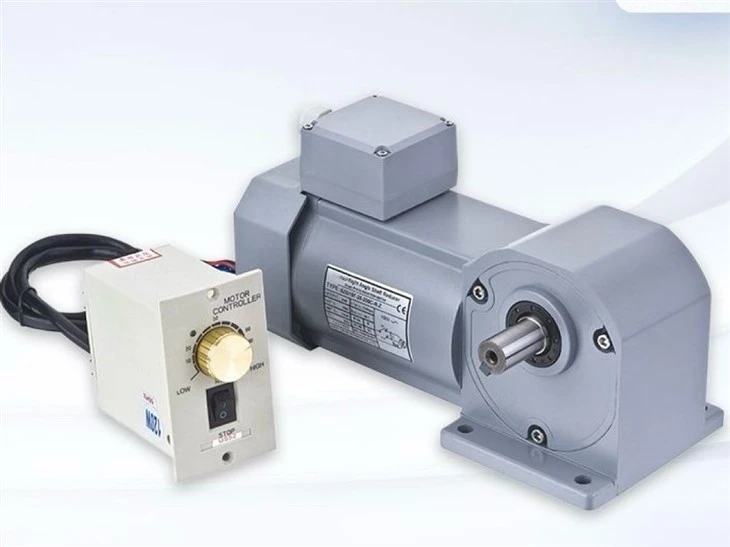

Long Service Life: High - quality materials, exquisite manufacturing processes, and strict quality inspections endow the product with excellent wear - resistance and fatigue - resistance performance, extending the overall service life of the equipment.​

Good Adaptability: There are a variety of specifications and models to choose from, which can be matched with different types of motors or power sources. At the same time, customized production can be carried out according to special requirements of customers, adapting to various complex industrial application scenarios.

Model description
