0.75kw Motor

The ANG 0.75kW AC Brake Gear Motor is a three-phase geared motor for industrial machinery, automation equipment and other applications requiring speed reduction and controlled stopping. The 0.75kW gear motor is available in AH horizontal and AV vertical configurations, with multiple frame sizes and reduction ratio options. Both normal-duty and light-load versions are available, while the miniaturized light-load design is intended for space-limited applications without large inertia.

Send Inquiry

Product Introduction

Products Features

1. 0.75kW Three-Phase AC Motor

The motor provides 0.75kW / 1HP rated power and is designed for speed reduction applications in industrial machinery and equipment.

2. Horizontal and Vertical Configurations

The gear motor is available in AH horizontal and AV vertical configurations, making it easier to integrate into machinery with different installation layouts.

3. Normal-Duty and Light-Load Options

Different frame designs are available for different operating requirements. The normal-duty type is intended for regular load applications, while the light-load miniaturized type is designed for space-limited applications with relatively light loads.

4. Multiple Reduction Ratio Options

Different frame sizes cover different reduction ratio ranges, allowing the gear motor to be selected according to the required output speed and equipment configuration.

5. Integrated Brake

The integrated brake provides controlled stopping and holding performance for equipment that requires the motor to stop at a defined position or remain stationary after power-off.

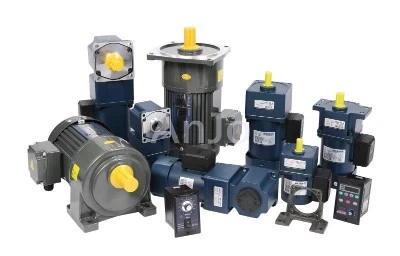

Details Images

gearbox motor product-800-800 horizontal foot mounted medium ac gear motor

Products Description

Main parameters:

Name	0.75kw motor
Motor power	0.75kw(1HP)
Motor speed	1350rpm at 50Hz, 1650rpm at 60Hz
Reducer ratio	1:3 ~ 1:200
Reducer torque	1.1 ~ 82.8Nm
Reducer shaft	Diameter28mm: length 45mm, Diameter32mm: length 55mm
Central height	Diameter28mm: 116mm, Diameter32mm:138.5mm
Foot holes distance	Diameter28mm: 140mm, Diameter32mm: 170mm
Total weight	Diameter28mm: 15.5kg, Diameter32mm: 27.6kg, Diameter*40mm: 42.3kg
Total length	343mm/377mm/412mm with brake (including shaft)
Advantages	● 100% No oil leakage ● 10%+ Lower noise ● 10%+ Lower temperature rise ● 10%+ Higher load capacity ● 100% current test and debug before delivery.
