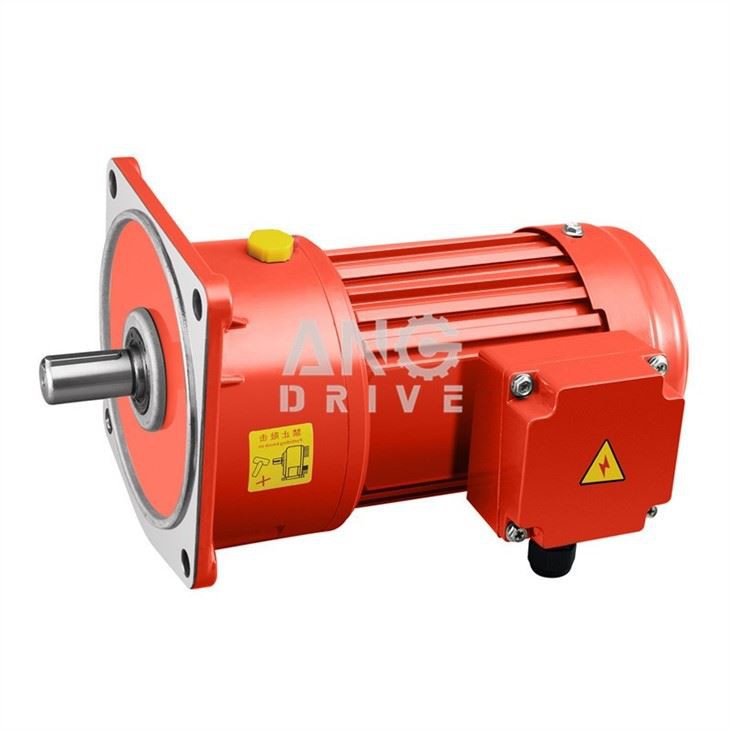

0.4kw Motor

Motor power

0.4kw, 1/2HP

Motor speed

1350rpm at 50Hz, 1650rpm at 60Hz

Reducer ratio

1:3 ~ 1:200

Reducer torque

0.6 ~ 36Nm

Reducer shaft

Diameter*22mm and length 40mm, Diameter*28mm and length 45mm

Central height

Diameter*22mm: 97.5mm, Diameter*28mm: 116mm, Diameter*32mm: 138.5mm

Foot hole distance

Diameter*22mm: 130mm, Diameter*28mm: 140mm, Diameter*32mm: 170mm

Total weight

Diameter*22mm: 11.1kg, Diameter*28mm: 14.2kg, Diameter*32mm: 27kg

Total length

335mm/327mm/362mm/395mm with brake (including shaft)

Advantages

●   100% No oil leakage

●   10%+ Lower noise

●   10%+ Lower temperature rise

●   10%+ Higher load capacity

●   100%   current test and debug before delivery.
