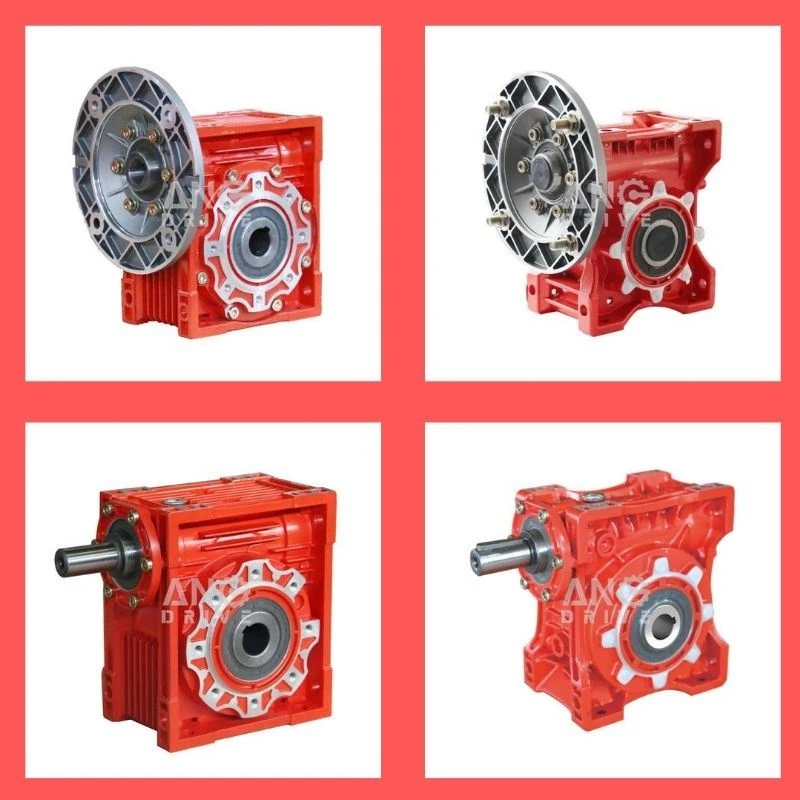

RV Gear Unit

1. Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized
layer after precise grinding
4. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC-normalized Motor Flange
Solid Shaft Input
5. Output Configurations:
Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output

A worm gearbox is a style of reduction gear that is definitely employed to convert substantial motor speed input into decrease speed output though also preserving large torque. The worm producer consists of a gear within the kind of a screw meshed to the machine which outputs while in the proper angle orientation. The worm gearbox is primarily manufactured from bronze with steel or stainless steel worm. The dimension from the worm reducer is extremely modest and sleek in comparison with other gear reducers which helps make it quite helpful for rated motor velocity and area problems.

RV Gear Unit Technical data:

(1)  Iput power:0.06kw-15kw

(2)  Output torque:4-2320N.M

(3)  Speed ratio: 5/10/15/20/25/30/40/50/60/80/100

(4)  With IEC input flange: 56B14/71B14/80B5/90B5

FAQ

Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.

Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.

Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
