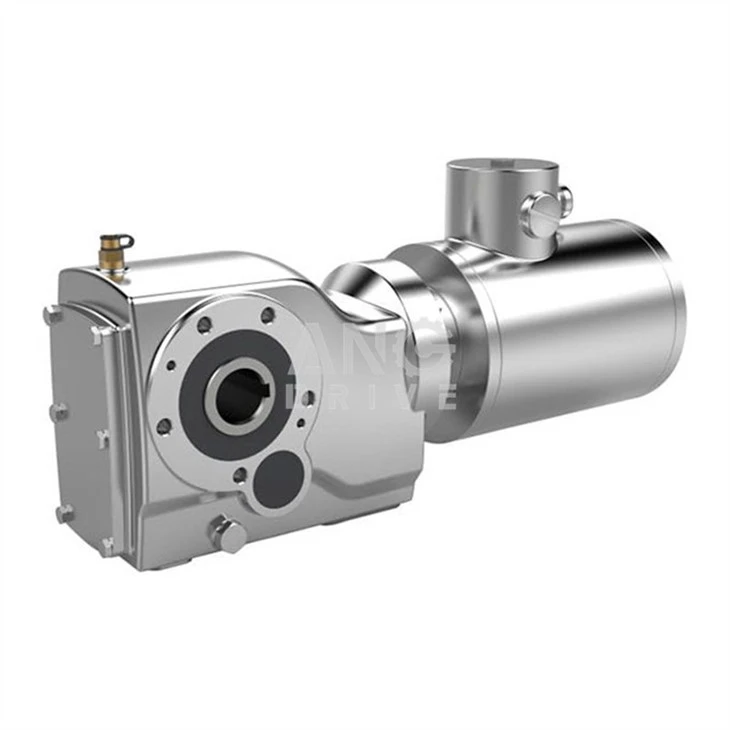

Flushable Gear Motor
Technical Parameters of flushable gear motor:
Name | IP67 flushable gear motor |
Place of Origin | Zhejiang, China |
Warranty | 1 year |
Brand Name | ANG |
Model Number | MS, ML, Frame 63, 71, 80 or 90 |
Type | Asynchronous Motor |
Frequency | 50/60Hz |
Phase | Single phase or Three phase |
Typical Power | 0.18kw 63B14 0.37kw 71B14 0.55kw 71B14 0.75kw 71B14 0.75kw 80B14 0.37kw 80B14 |
Protect Feature | Drip-proof |
AC Voltage | 110V, 208-230 / 240 V, 380v |
Efficiency | IE 2, IE 3 |
Rated Speed | Constant Speed 1500rpm |
Material of housing | Aluminum |
Package | Carton and pallet |
Mounting Type | B14 flange mounting |
Ambient Temperature | -15 ~ +40 °C |
Protection class | IP67 waterproof |
Insulation Class | Class F |
Used for | The flushable gear motor is mainly used for poultry farms, meat processing, medicine processing, beverage line, washing machine, etc. |
What Applications DO NOT Use Gear Motors?
Due to the flexibility and widespread use of electric gear motors, it is actually easier to explore applications that DO NOT use them. Any application that requires high shaft speed will not benefit from the use of a gear motor. This includes fans, pumps and engine starters. In these cases, the speed of the motor’s shaft rotation is the most important factor.
Gear motors are used in applications that require lower shaft speed and higher torque output. This describes a wide range of applications and scenarios, including many of the machines and equipment we interact with on a daily basis. From ATV wipers to hospital beds, security check conveyor to packaging equipment, paint mixers to juice dispensers, gear motors are used to power a significant number of machines and applications.
