NMRV063 Reducer

   The application field and popularity of the RV reducer made of aluminum alloy are even better than other types of reducer. It is a kind of reducer with high practicability, and also a combination of advanced technology at home and abroad.



1.High Reduction Ratio & Compact DesignWorm gears boast unmatched high reduction ratios in a streamlined, space-saving structure. With just one gear pair, you can achieve remarkable torque increase or substantial speed reduction-a feat that demands multi-stage setups in traditional gearboxes. The result is fewer parts, less risk of breakdowns, and a compact design that maximizes your equipment layout flexibility.

2.Self-Locking Capability for SafetyThe unique friction between the worm and worm wheel creates a built-in self-locking function, effectively preventing reverse drive from the output to the input shaft. This anti-back-driving feature makes the NMRV063 the top choice for lifting, load-holding, and positioning tasks where operational safety is a priority.

3.Stable Operation Without Additional Backstop DevicesUnlike ordinary gear systems vulnerable to external load-induced rotation, worm gear reducers offer inherent anti-back-driving protection. There is no need for extra backstop devices, which simplifies installation, reduces procurement costs, and enhances long-term operational stability.

NMRV063 reducer is widely used in the following fields.

1.Processing & Manufacturing

Petrochemical Industry | Food Machinery | Beverage Production | Tobacco Machinery

2.Logistics & Transportation

Transportation Systems | Logistic Handling Equipment

3.Green Tech & Healthcare

Environmental Protection Machinery | Medical Instruments

4.Others

Oil & Foodstuff Processing and more

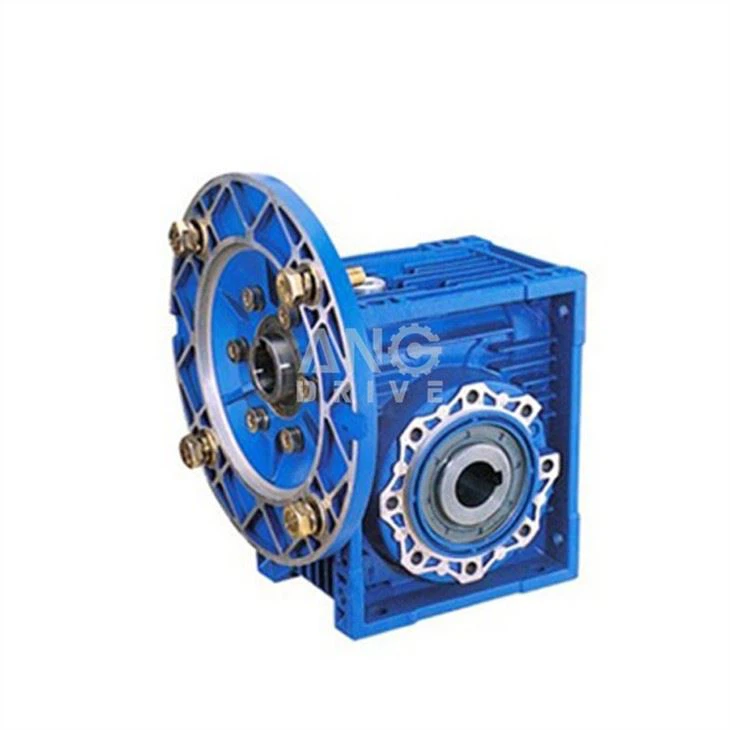

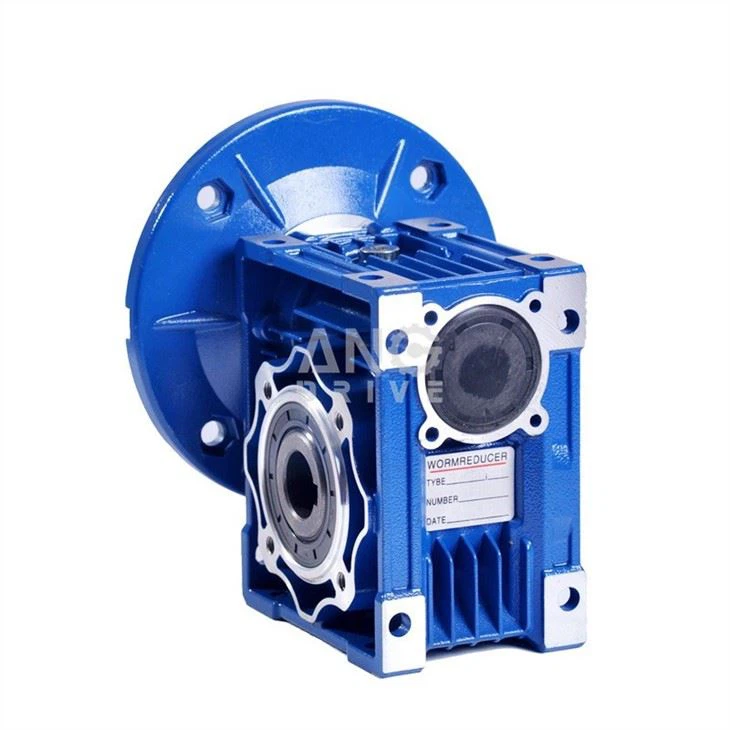

Input flanges of NMRV063 reducer

NMRV	PAM IEC	N	M	P	D
					5	7.5	10	15	20	25	30	40	50	60	80	100
063	90B5	130	165	200	-	24	24	24	24	24	24	-	-	-	-	-
	90B14	95	115	140
	80B5	130	165	200	-	19	19	19	19	19	19	19	19	19	-	-
	80B14	80	100	120
	71B5	110	130	160	-	-	-	-	-	-	-	14	14	14	14	14
	71B14	70	85	105



FAQ

Q: Can you make the worm reducer with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.



Q: Do you provide samples?
A: Yes. Sample is available for testing.



Q: What is your MOQ?
A: It is 20pcs for the beginning of our business.



Q: What is your lead time?
A: Standard products need 5-30days, a bit longer for customized products.



Q: Do you provide technical support?
A: Yes. Our company has a design and development team, we can provide technical support if you need it.
