120W Gear Motor
Favorable price, fast delivery, timely service-- ANG is your reliable supplier of 120w gear motor which is free from oil leakage, low noise, low temperature rise, long service life, etc.
Send Inquiry
Product Introduction
Main Characteristics:
Name | 120w gear motor |
Size | 80mm*80mm |
Power | 120w |
Current | 0.31A-2.1A |
Torque | 764~ 910mNm |
Capacitor | 6uF ~ 30uF |
Motor shaft diameter | 15mm |
Reducer Ratio | 1:3 ~ 1:500 |
Reducer torque | 2.11~ 19.6Nm |

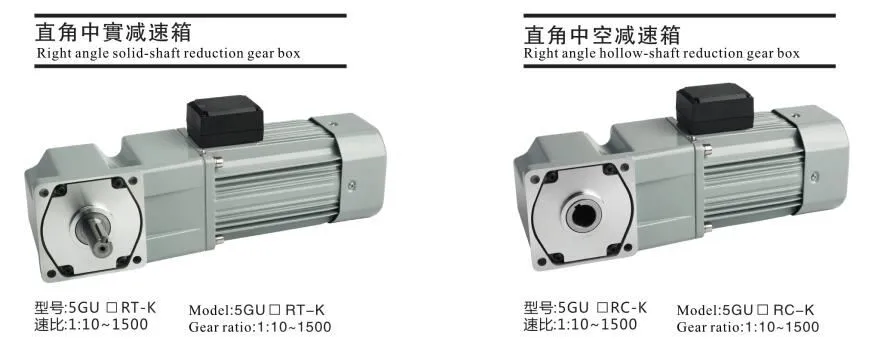

Reducer shaft dia. | 15mm for solid shaft, 17mm for hollow shaft |
Total weight | 5.8kg/5.9kg/6kg/6.5kg/6.6kg |
Total length | 291mm/341mm |
Why choose us? | ● 100% No oil leakage ● 10%+ Lower noise ● 10%+ Lower temperature rise ● 10%+ Higher load capacity ● 100% current test and debug before delivery. |
Our geared motor power range is from 6W-3.7KW(1/125HP to 5HP), the speed ratio is from 1: 3 to 1: 3000, output speed from 0.5rpm-500rpm, 12V,24V,48V,110V-120V, 220V-240V, 380V -415V ,AC and DC motors, all Can be made. Special motors also can be designed and manufactured.
