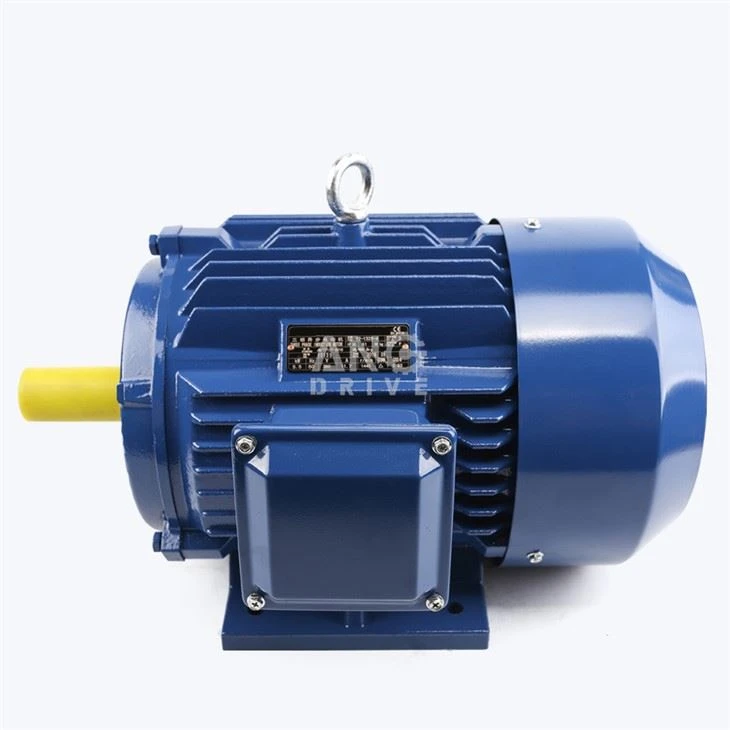

Y2 Electrical Motor

Three-phase motors offer significant efficiency over other types of motors. They operate on three distinct waveforms that are 120 degrees out of phase with each other. This allows them to create a rotating magnetic field that can drive the motor's rotor, which results in a smoother and more efficient operation. Three-phase motors have a higher power-to-weight ratio, which makes them more efficient in various applications.

Send Inquiry

Product Introduction

General parameters of AC electrical motor:

Power	0.06 ~ 315kw
Frame Size	56 ~ 355
Phase	Single or Three
Efficiency Class	IE1 ~ IE4
Poles	2, 4, 6, 8 poles
Protection Class	IP44, IP54, IP55, IP67
Insulation Class	B, F, H
Mounting Type	B14, B3, B5, B35, B34
Ambient Temperature	-15 ~ +40 °C
Altitude	≤1000M
Material	Aluminum/Cast Iron/Stainless steel

Why Choose Us?

	● 100% Copper Coils ● High efficiency ● Running stable and safe ● New stators with 100% output power
● Precision bearing ● Long service life ● High strength material- carbon steel ● Good dust proof
	● High precision rotor ● Brand new international standard rotor ● Multiple precision machining processed ● Running stable and low noise
●High quality cold rolled silicon steel sheet ● Low temperature rise ● Long service life ● Strong magnetic ● Running stable

Details:

	●Strong shaft ● Multiple reuse ● Efficient
● Beautiful shell ● Dustproof
	● Good terminal box ● Die-cast with high precision ● Not easily deformed
● Precision machining cover ● Use high strength material
	● Efficient heat dissipation holes ● Big area of heat dissipation ● Geart heat dissipation performance

Typical applications:


Mechanical engineering	Mining equipment	Electricity equipment

Heavy duty industrial	Food processing	Metallurgy equipment

OPERATING CONDITIONS

Y2 series motors can be widely applied to various of driving equipments such as machine tools, blowers, pumps, gearboxes, compressors, transporters, agricultural machines and so on.

Ambient temperature:15℃≤≤40℃.Altitude :no higher than 1000 meters from seal level.

Rated voltage: 380V. Rated frequency: 50HZ,

Connection: Y connection is adopted for motors below 3KW (3KW included) and △ connection is adopted for others above 4KW (4KW included ).Working ration: continuous working system(S1).

F class insulation, the temperature rising of the stator winding examined at 80K(by resistance method).

Protection grade: on the main body is IP54, on the terminal box can reach IP55. Cooling method: IC411.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Product Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer's demand.
