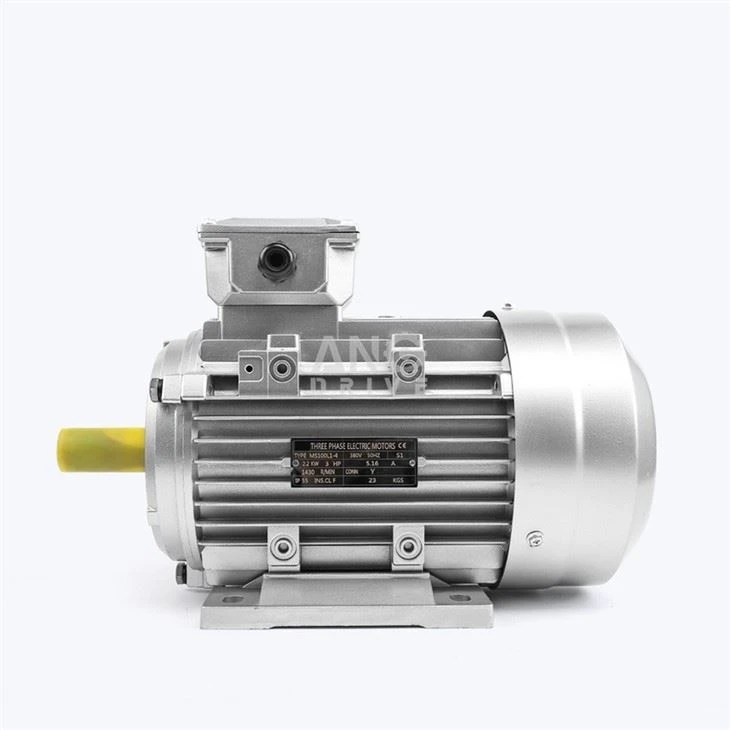

Three-phase motors are a type of ac power motor that is a specific example of a polyphase motor. These motors can be either an induction motor or a synchronous motor. The motors consist of three main components – the stator, the rotor, and the enclosure.

Send Inquiry

Product Introduction

SPECIFICATIONS

1. 100% copper winding and inserting stator (manual and semi-automatically)
2. Stator Vacuum impregnation and drying
3. CNC machining motor shaft, frame, end shields, etc
4. Professional workman inspecting spare parts every processing
5. Electric motor assembly product line
6. Electric motor will 100% test before painting.
7. Electric motor spray-paint on motor painting product line
8. Electric motor will 100% check again before packing.
An electric motor from material to finish motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.

General specification of AC motors:

Power	0.06 ~ 315kw
Frame Size	56 ~ 355
Phase	Single or Three
Efficiency Class	IE1 ~ IE4
Poles	2, 4, 6, 8 poles
Protection Class	IP44, IP54, IP55, IP56, IP65, IP67
Insulation Class	B, F, H
Mounting Type	B14, B3, B5, B35, B34
Ambient Temperature	-15 ~ +40 °C
Altitude	≤1000M
Material	Aluminum/Cast Iron
