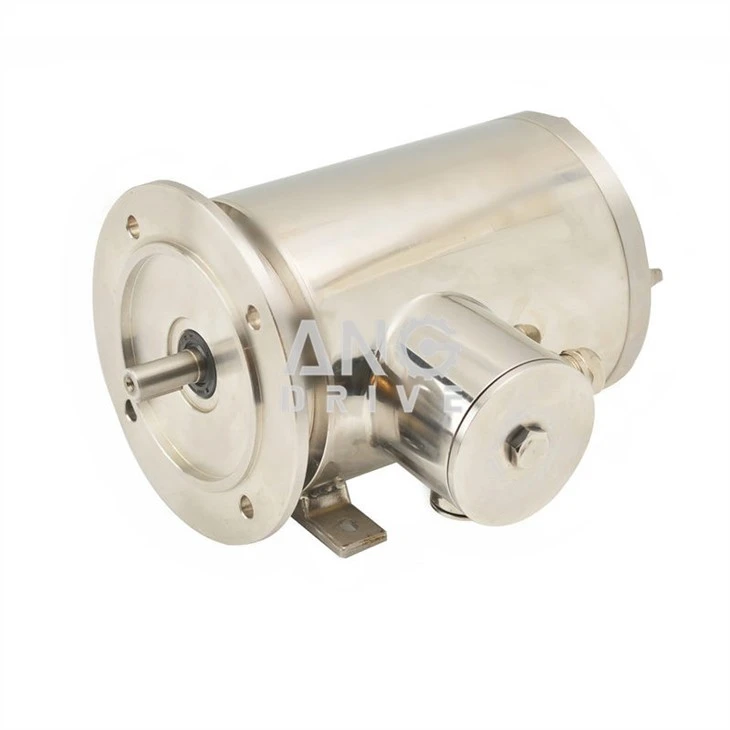

Stainless Steel Electrical Motor

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of stainless steel electrical motor which is high efficiency, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

We offer below stainless steel gearbox and motors:

1. Stainless steel electrical motor: IEC metric size, Nema inch size.

2. Stainless steel geared motor: helical geared motor, worm geared motor, bevel geared motor.

3. Stainless steel worm gearbox: IEC dimension and inch dimension.

4. Stainless steel hypoid gearbox.

Parameters of stainless steel electrical motor:

Power Range	1/4HP~20HP
Frame Size	IEC 63-90 B5 B14, NEMA 56, 140T-280
Motor Phase	Single phase or Three phase
Voltage	110V 220V 380V, etc.
Poles	2, 4, 6, 8 poles
Protection Class	IP69
Cooling method	TENV or TEFC
Mounting Type	B14, B3, B5, B35, B34
Ambient Temperature	-15 ~ +40 °C
Altitude	≤1000M
Material	Stainless steel 304

Parameters of stainless steel worm gearbox:

Model	NMRV030, NMRV040, NMRV050, NMRV063
Power	0.06kw ~ 1.5kw
Motor speed	750rpm ~ 2000rpm
Gear ratio	1:5 ~ 1:100
Motor type	IEC or NEMA (1 phase or 3 phase)
Output type	Hollow shaft, solid shaft, flange
Housing material	304 or 316 stainless steel material
Dimension standard	Metric size / Inch size
Lubrication oil	Food grade oil
Accessories	Input flanges, Output flanges, Solid output shaft, Torque arm, etc.
