1.5 Hp Electric Motor
1.5 hp Motor
1.5HP ac Motor
1.5HP electromotor
1.5HP electrical Motor
1.5hp single phase electromotor
1.5hp single phase elektromotor
1.5HP three phase Motor

1.5 Hp Electric Motor

1.5 HP electric motors provide convenient mechanical power for industrial use. ANGF provides a wide range of electric motors with different powers and speeds.

Send Inquiry

Product Introduction

ANG 1.5HP motor is an induction motor. It is also an asynchronous AC motor where power is transferred to the rotor by electromagnetic induction, much like transformer action.

Main Parameters:

Product name	1.5 hp electric motor
Warranty period	12 months
Brand name	ANG
Series and frame	MS, ML, Frame 80 or 90
Type	Asynchronous Motor
Frequency	Fixed 50/60Hz, or adjustable frequency
Phase	Single-phase or three phase
Power	1.5hp 1.1kw
Typical voltage	110V, 220V, 230V, 380V, 660V
Efficiency	IE2, IE3, IE4
Output Speed	Fixed speed or Adjustable speed
Shell material	Aluminum or Cast Iron or Stainless steel
Package type	Carton and pallet
Mounting Type	B14, B3, B5, B35, B34
Protection class	IP55
Insulation	Class F
Duty Type	S1 S2

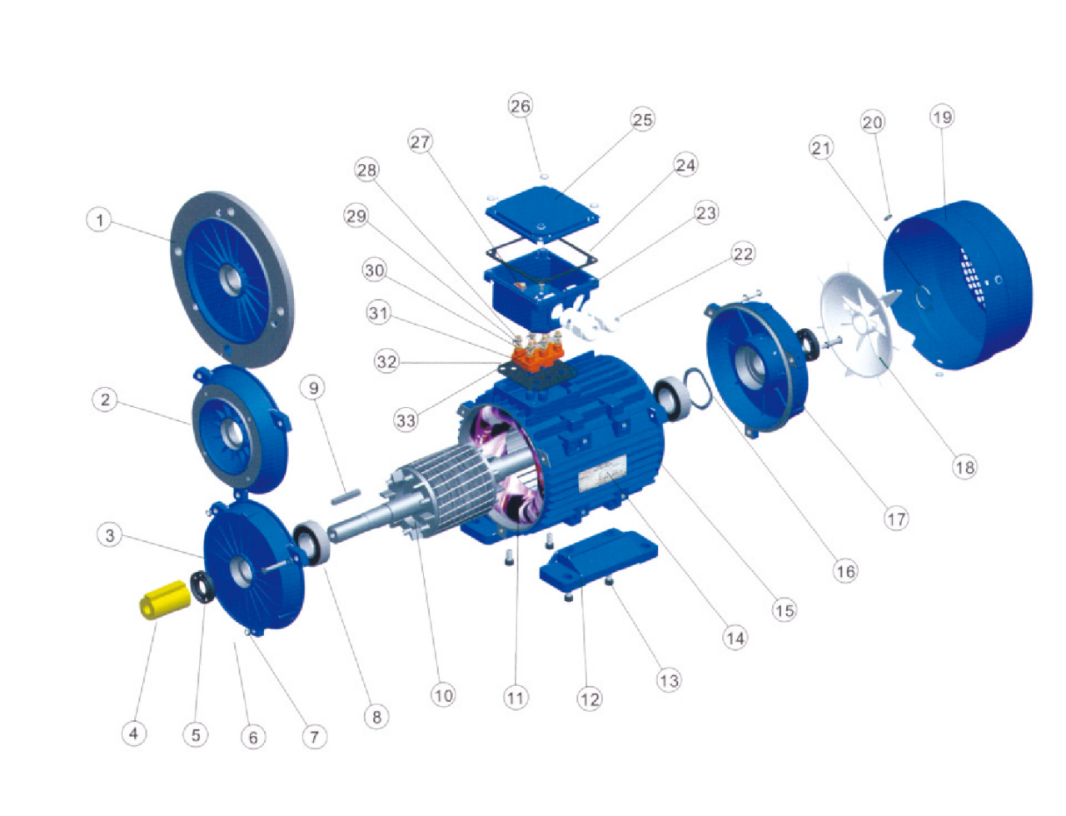

Exploded View

20230428143629

1. B5 Flange	13. Pedstal bolt	25. Terminal box lid
2. B14 Front windshield	14. Nameplate	26. Screw
3. Front windshield	15. Frame	27. Earth mark
4. Shaft cover	16. Waveform	28. Brass washer
5. Spring washer	17. Rear windshield	29. Deduction cap
6. Vring Oil seal	18. Fan	30. Brass net
7. Bolt	19. Fan Cowl	31. Terminal board
8. Bearing	20. Fan cowl Screw	32. Leather washer
9. Key	21. Fanclamp	33. Brass lug
10. Rotor	22. PG
11. Stator	23. Terminal box base
12. Pedstal	24. Gasket

Typical applications:

1. HVAC systems: Induction motors are used in heating, ventilation, and air conditioning systems to power the fan or blower that circulates air through the building.

2. Water pumps: Induction motors are commonly used to power water pumps in residential, commercial, and industrial settings, including irrigation systems, water treatment plants, and swimming pools.

3. Industrial machinery: Induction motors are used to power a variety of industrial machinery, such as conveyor belts, compressors, and mixers.

4. Household appliances: Induction motors power a wide range of household appliances, including washing machines, dishwashers, and vacuum cleaners.
