Solar Motor

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of Gear Motor which is high efficiency, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

Solar motor description

The solar motor is also named solar tracking system controlling motor, it is used for solar power generation equipment by rotating the solar panel according to the orbit of the sun. The solar motor has a very low speed, normally 1~3 rpm which accords with the feature of the DC planetary gear motor. Because the reduction ratio of the planetary gearbox can be very large to achieve very low speed.

The following motors can resist and work well in bad weather conditions with their safe and reliable use, and meet the demands of various types of automatic tracking systems.

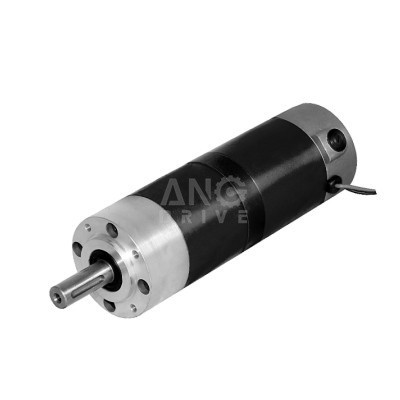

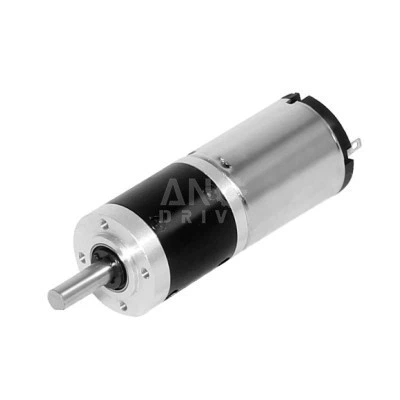

Solar motor photo

42mm solar motor

52mm solar motor

56mm solar motor

Application photo

solar equipment

solar equipment

solar equipment

Features of solar motor

1. Compact structure and simple assembly;
2. Wide speed ranges and high torque;
3. Low noise, good sealing performance, high efficiency;
4. Stable and safe, long lifetime, universal;
5. Multi-structure, various assembling methods

Specification

Dimensions (mm)	Rated Voltage (VDC)	Rated Speed ( r/min )	Reduction Ratio	Rated Torque (N.m)
22	12	2200-8700	1:3.7-1:516	0.011-1.0
24	12	3600-8700	1:3.7-1:516	0.034-1.0
28	12~24	3800-5100	1:3.7-1:516	0.023-3.0
36	12~24	2400-4300	1:3.7-1:720	0.017-3.0
45	12~24	2400-3600	1:3.71-1:369	0.15-10.0
56	12~24	1600-4000	1:3.6-1:575	0.22-30.0
71	12~24	1600-2600	1:4-1:308	0.72-54.0
82	12~24	1700-2750	1:4-1:329	1.2-120.0
92	12~24	960-2400	1:4.3-1:422	0.9-450.0
120	12~24	1600-2800	1:4.8-1:427	3.4-600.0
