Reducer Motor
General specification:
ANG Reducer Motor | |
Type | single stage RX(F)57-107, 2-3 stage R(F)17-187 |
Input power | 0.06kw ~ 180kw |
Input speed | 700rpm ~ 2800rpm |
Gear ratio | 1/3 ~ 1/290 |
Input motor | AC motor (1 phase or 3 phase) / Servo motor |
Installation Mode | Foot mounted or Flange mounted |
Output Torque | up to 50000Nm |
Stage | 1, 2, 3 |
Input form | Direct to Motor, Adaptor for IEC motor, Solid input Shaft, Squre flange for servo motor |
Output form | Solid shaft, output flange |
Production Introduction of reducer motor

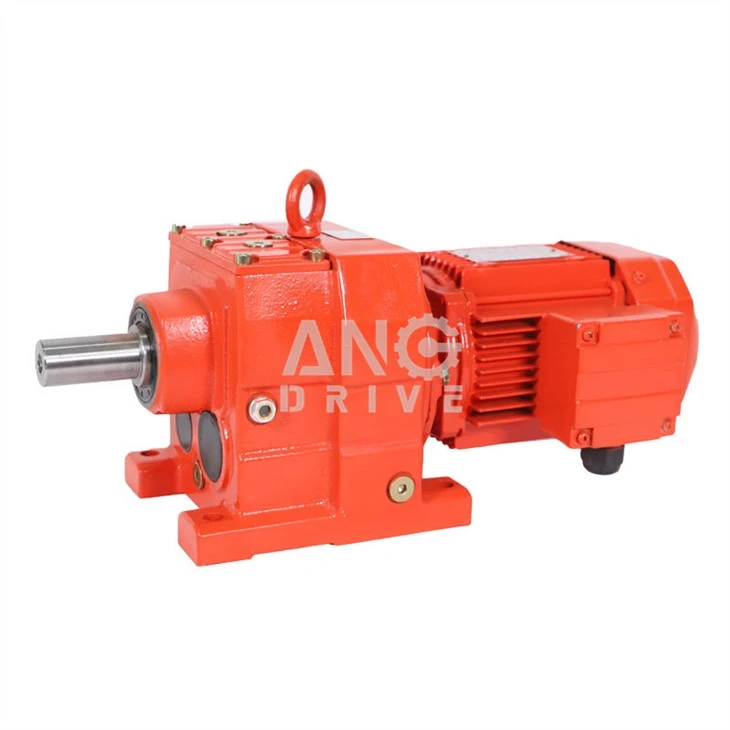

1. R series inline helical reducer motor
2. High torque, various configuration, wide ratio range, compact structure, competitive price with stable performance, these make the R series become perfect choice of reducer motor.
Product pictures
Features:
1. Compact structure, modular design
2. 1 stage, 2 stage and 3 stage transmission, efficiency from 94% to 98%
3. Wide reduction ratio and high torque
4. Long life time
Production Application area
Conveyors, Industrial pump, Industrial fans, Packaging equipment
Why do you choose us?
| Advantages of motor and gearbox
● Free from oil leakage ● Higher efficiency ● Low noise ● High torque ● Competitive price ● Low energy consumption ● Precision transmission ● Export high quality
|
Gears
● High precision grade 6 ● Heat treatment to increase strength ● Able to undertake heavy load ● High hardness, stable performance ● Surface carburizing, precision grinding
|
|

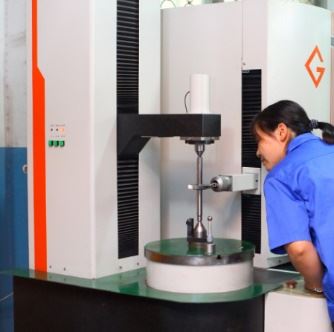

| Inspection
● 100% running inspection ● Oil leakage inspection ● Noise inspection ● Vibration inspection ● Professional airtightness inspection
|
Housing
● HT250 high strength cast iron ● Trinity processing of each side ● Concentricity is guaranteed
|
|
| High temperature resistant copper coil
● 100% output power, life is 10 times than ordinary coil. ● Insulation class F, ensure that the motor is stable, durable, efficient and safe. ● 100% pure copper coil ● The drip coating of three layer high density paint can effectively block dust and resist high temperature |
FAQ
Q: What information should I offer in my inquiry?
A:
1. Type of the reducer motor, with parameters, like ratio, input and output type, input power, mounting position, output speed, etc.
2. Housing color, the standard is blue and grey.
3. Purchase quantity.
4. Other special requirements, like delivery methods, shipping terms, etc.
Q: What is your production time?
A: Standard product need 10 to 30days, a little longer for customized reducer motor.
Q: Can you make the gear unit with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. The sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company have design and development team, we can provide technical support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C are preferred, with a different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
