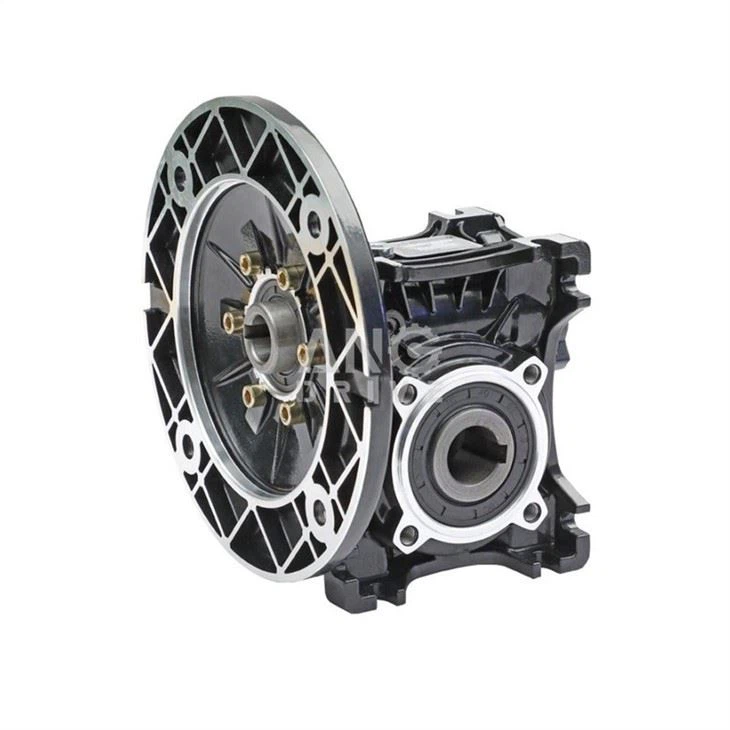

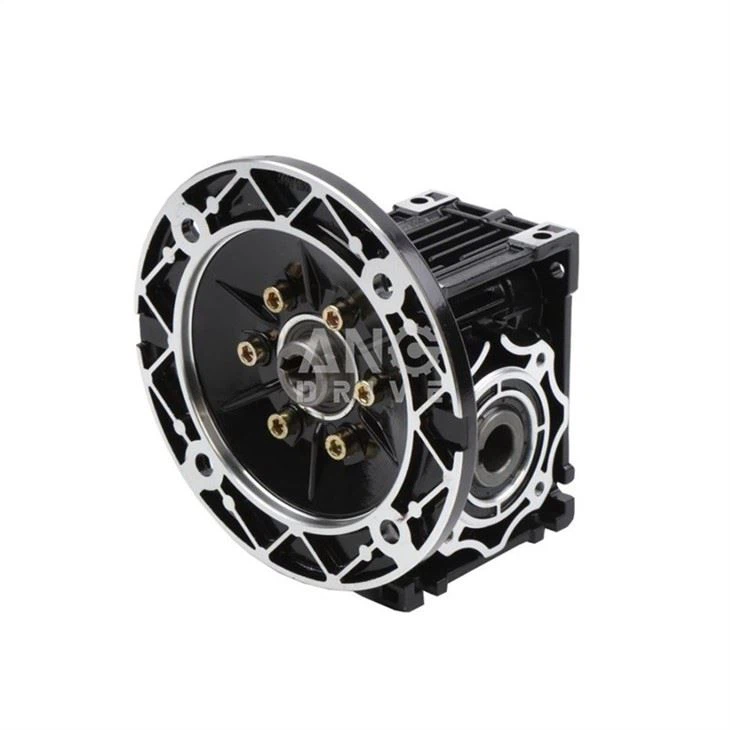

NMRV063
The application field and popularity of the RV reducer made of aluminum alloy are even better than other types of reducer. It is a kind of reducer with high practicability, and also a combination of advanced technology at home and abroad.
Technical data as follow:
We use standard ADC12 high quality aluminium alloy die casting into forming for housing.
The worm wheel material is ZCuSn10P1 or ZCuA19Fe4.
The material of worm shaft is 20Cr or 40Cr carburizing quenching.

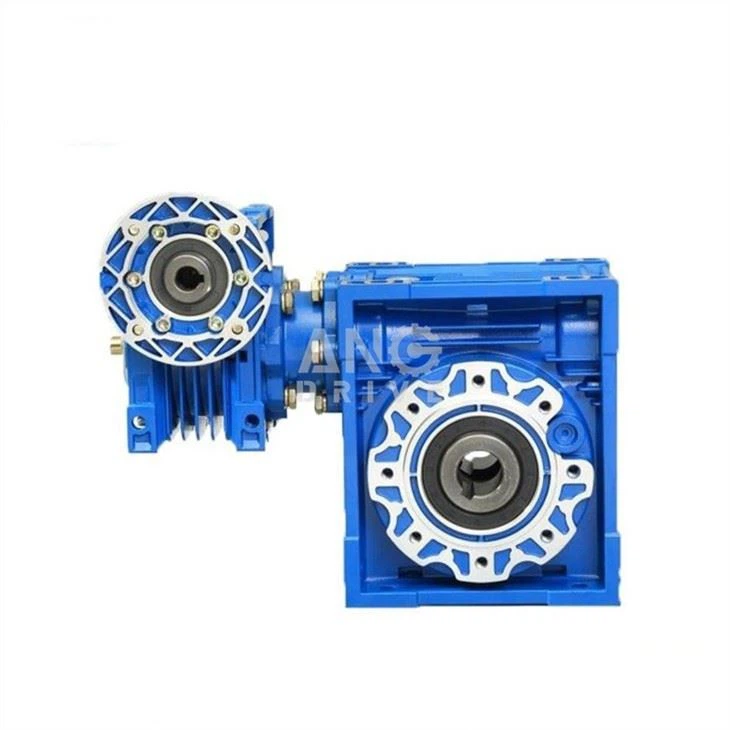

it is available to match PC prestage reducer or variator to change raio and structure.
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,Woodworking
Input flanges of NMRV063:
NMRV | PAM | N | M | P | D | |||||||||||
5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |||||
063 | 90B5 | 130 | 165 | 200 | - | 24 | 24 | 24 | 24 | 24 | 24 | - | - | - | - | - |
90B14 | 95 | 115 | 140 | |||||||||||||
80B5 | 130 | 165 | 200 | - | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | - | - | |
80B14 | 80 | 100 | 120 | |||||||||||||
71B5 | 110 | 130 | 160 | - | - | - | - | - | - | - | 14 | 14 | 14 | 14 | 14 | |
71B14 | 70 | 85 | 105 | |||||||||||||
