Industrial Gear Box

Type

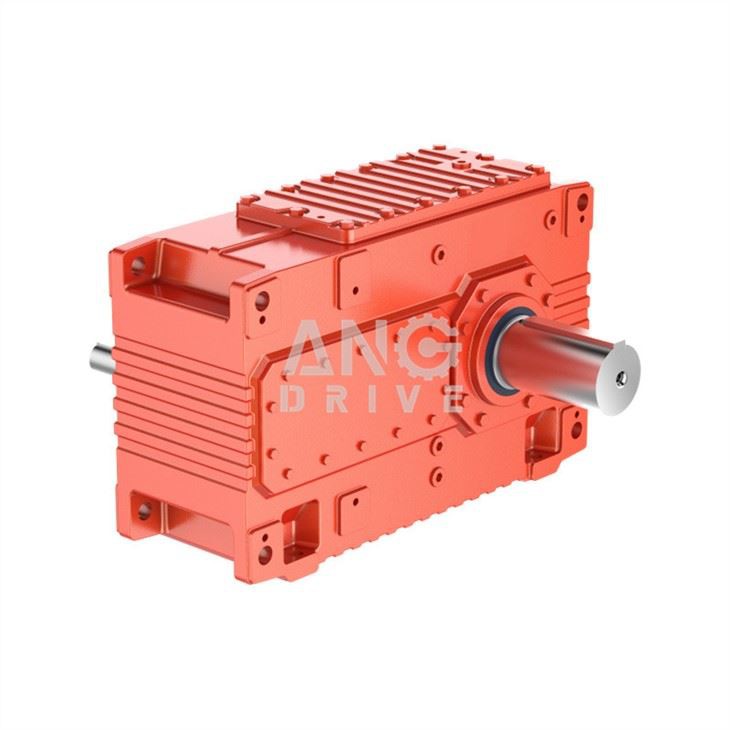

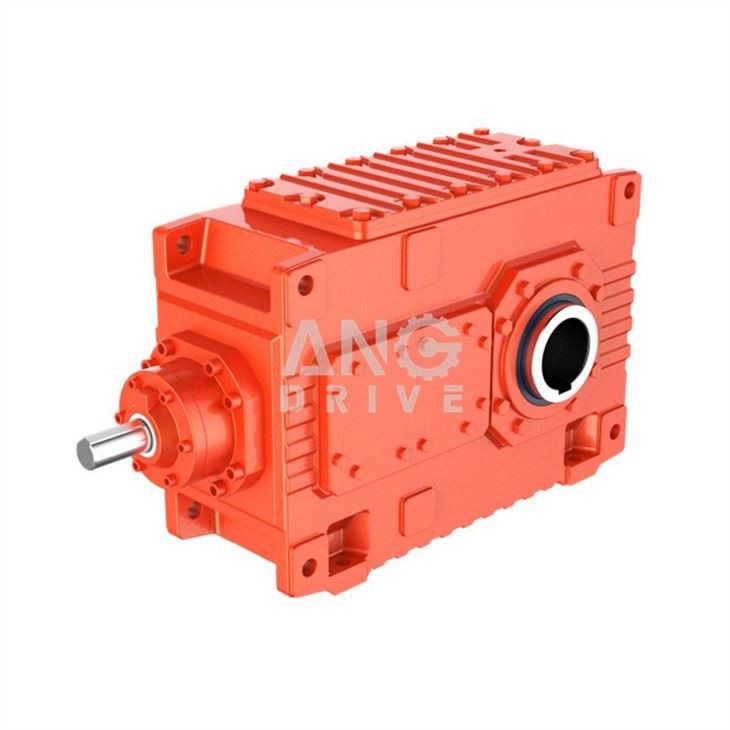

Helical parallel shaft gear box, Bevel helical right angle gear box

Model

H series and B series, size 1 ~ 26

Input power

3 ~ 5278 KW

Input speed

750rpm 1000rpm 1500rpm

Reduction ratio

1/1.25 ~ 1/450

Output torque

 3 ~ 900kN.m

Install type

Foot / Solid shaft / Hollow shaft / Output flange, etc.

Efficiency

1 stage 98%, 2 stage 96%, 3 stage 94%, 4 stage 92%

Precision of   gear

Accurate grinding, class 6

Design position

A / B / C / D / E   / F / G / H / I

Accessories

Back stop / Cooling fan / Cooling coil / Oil pump / Compensation tank

Gear

● High precision grade 6

● Carburizing to increase strength

● Able to work with heavy load

Inspection

● 100% running test

● Oil leakage check

● Noise check

● Vibration test

Housing

● HT250 high   strength material

● Trinity processing of each side

● Concentricity is guaranteed
