AC Gearmotor
AC Gearmotor Features
1. Compact structure to save space in your machine;
2. Wide range of output speed for you to choose;
3. Perfect sealing against dust and water;
4. 100% no oil leakage;
Product photo

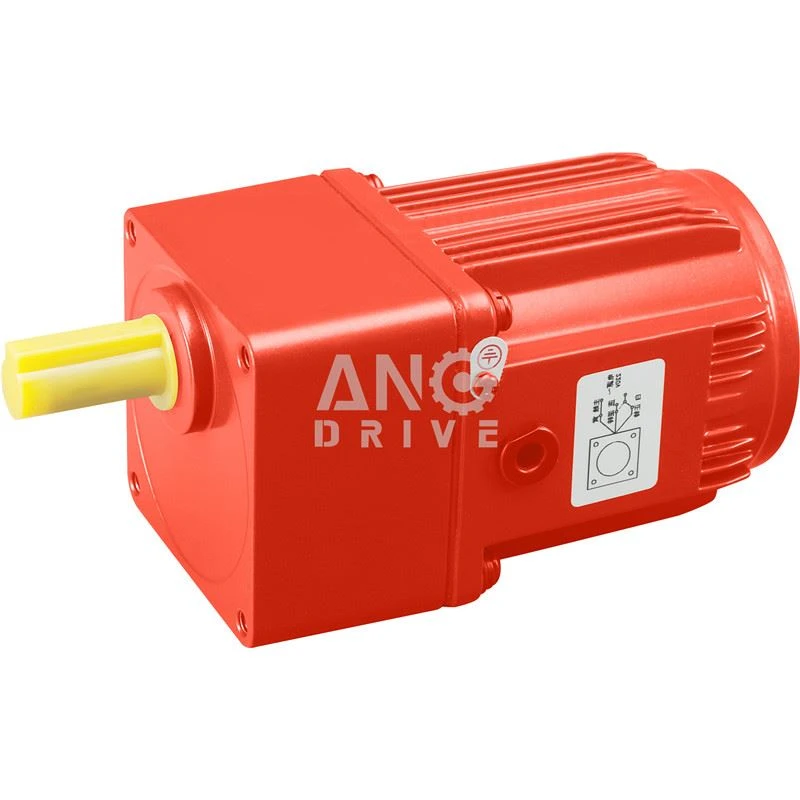

Small AC Gearmotor
Small AC Gearmotor
Small AC Gearmotor
Small AC Gearmotor
Medium AC Gearmotor
Medium AC Gearmotor
Medium AC Gearmotor
Medium AC Gearmotor
Big AC Gearmotor
Big AC Gearmotor
Big AC Gearmotor
Big AC Gearmotor
General specification
Motor type | Small AC Gearmotor (for example) |
| Typical model | 2IK10GN, 3IK15GN, 4IK25GN, 5IK40GN, 5IK60GN, 5IK90GU, 6IK120GU, 6IK180GU, etc. |
| Frame size | 60 mm ~ 104mm (small type for example) |
Output shaft | Round shaft, D-cut shaft, key-way shaft |
Running speed | 1500 rpm 50Hz 1800rpm 60Hz (without gear) |
Typical Ratio | 3 3.6 5 6 7.5 10 12.5 15 18 20 25 30 36 40 45 60 75 90 100 120 150 180 200 |
Output power | 6w ~ 7500w (small type for example) |
Voltage type | Single Phase 110V 220V 230V… |
Accessories | Brake/ Connector/ Terminal box/ Capacitor/ Speed controller/ Wire plug… |
Structure | Inline helical gearmotor Parallel shaft gearmotor Planetary center shaft gearmotor Right angle hollow worm shaft gearmotor Right angle solid worm shaft gearmotor Right angle bevel hollow shaft gearmotor Right angle bevel solid shaft gearmotor Flat type hollow shaft gearmotor Flat type solid shaft gearmotor |
Why choose our ac gearmotor?
| Advantages ● No oil leakage ● Low noise ● Low temperature rise ● Favorable price ● Long warranty |
High temperature resistant copper coil ● 100% pure copper coil high temperature enameled coil. ● Ensure that the motor is stable, durable, efficient, and safe. |
|
| Long and large number of stiffener ribs ● It makes the body stronger ● It is very helpful for heat dissipation |
Speed controller ● It helps you adjust speed easily ● High precision, wide speed range ● Two plugs are available |
|
| ● One-piece forging gear and shaft ● Heat treatment with plasma nitriding process Your gear will be fine under heavy load |
Ball bearing on each shaft side ● Small friction ● Low noise ● Improved the service life ● Improve the transmission efficiency of mechanical power. ● Reduce noise and bearing the burden, and not easy to be hot. |
|
| Improved design ● The motor is free from oil leakage ● Fine sandblasting ● Hand polished ● Smooth and high precision surface. |
| Strong Gears ● High hardness, low noise ● High precision and long life ● It adopts full ball bearings and alloy steel gears to increase the torque of the motor. ● Smooth transmission and wear resistance. ● Ensure that the reducer runs smoothly, efficiently and improves service life. ● 40CR high strength alloy steel material, international level CNC machine. |
|
| Built-in fan radiator
● Reduce the motor temperature ● Ensure the high efficiency of the motor ● Prolong the service life of the motor |
High Viscosity Gear Grease ● Excellent adhesion, ● Not easily peeled off or extruded out, the gear surface with excellent lubricity. ● Mechanical stability and colloidal stability, long service life. |
|
| Terminal box ● High protection level ≥IP55 ● Terminal block against damage from pulling lead wire ● Inside capacitor makes it easier for wire connection ● The iron plate helps avoid damage from mounting screw |
Our product range
