Helical Bevel Gearbox

Helical Bevel Gearbox Features

1. Adopt optimized design, module combination, right-angle output, space reduction
2. High strength and longevity gears
3. Can be combined with various motors, wider ratio range
4. Big output torque, smoothly startup, high efficiency

Specification of Helical Bevel Gearbox

1. Ratio range: 5.36…179.86

2. Input power: 0.12…200KW (n1=1400r/min)

3. Permit torque range: 200…50000Nm

4. Output speed: 0.3~205 r/min

5. Housing form: K: Foot mounted
                            KA: Without foot mounted but with 4 screw thread holes on the bottom plate

6. Output form: A: Hollow shaft
                          H: Hollow shaft with shrink disk
                          V: Hollow shaft with involute spline
                          Ignore: solid shaft

7. Input form:  IEC flange motor adapter,
                       Input shaft(AD1, AD2, AD3, AD4, AD5, AD6)

8. Mounting method:  B: Foot mounted
                                    F: Output flange mounted
                                    T: torque arm mounted
                                    Z: B14 flange mounted

Typical Applications of Helical Bevel Gearbox

Wastewater treatment

Dredgers

Metalworking mills

Conveyors

Cranes

Mixer

Crusher

Cooling towers

Paper machine

Cableways

Cement industry

Petroleum industry

Textile machinery

Typical Models of Helical Bevel Gearbox

JRTK37/JRTK47/JRTK57/JRTK67/JRTK77/JRTK87/JRTK97/JRTK107/JRTKR127/JRTK157/JRTK167/JRTK187/JRTKA127/JRTKA157/JRTKA167/

JRTKA187/JRTKF37/JRTKF47/JRTKF57/JRTKF67/ JRTKF77/JRTKF87/JRTKF97/JRTKF107/JRTKF127/ JRTKF157/JRTKAF37/JRTKAF47/JRTKAF57/ JRTKAF67/JRTKAF77/JRTKAF87/JRTKAF97/ JRTKAF 107/JRTKAF127

TK37/ TK47/ TK57/ TK67/ TK77/ TK87/ TK97/ TK107/ TK127/ TK157/ TK167/ TK187

TKA37/ TKA47/ TKA57/ TKA67/ TKA77/ TKA87/ TKA97/ TKA107/ TKA127/ TKA157/ TKA167/ TKA187

TKF37/ TKF47/ TKF57/ TKF67/ TKF77/ TKF87/ TKF97/ TKF107/ TKF127/ TKF157/ TKF167/ TKF187

TKAF37/ TKAF47/ TKAF57/ TKAF67/ TKAF77/ TKAF87/ TKAF97/ TKAF107/ TKAF127/ TKAF157/ TKAF167/ TKAF187

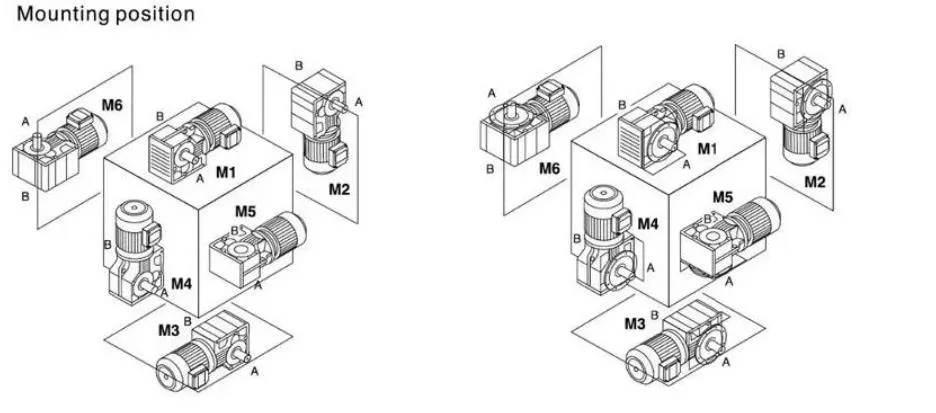

Helical Bevel Gearbox Mounting Position

Why Choose Our Helical Bevel Gearbox?

Other Gearbox and Electric Motor

FAQ

Q: Do you provide samples?

A: Yes. A sample is available for testing.

Q: What is your MOQ after sample testing?
A: It is 10pcs for the beginning of our business.

Q: What is your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
