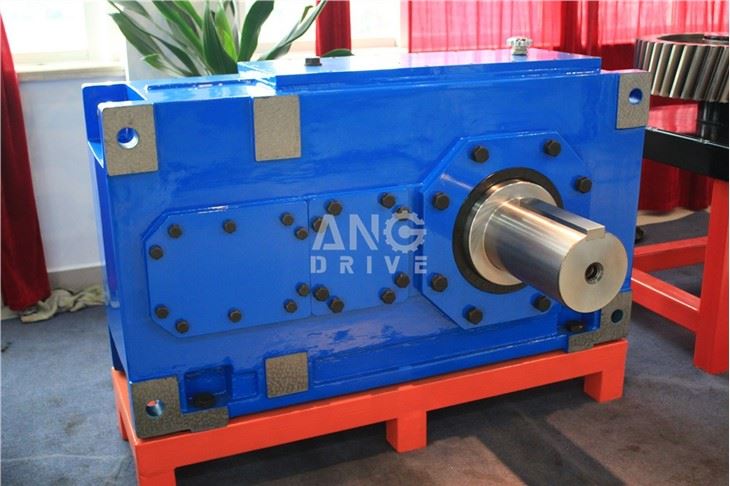

Drawing Machine Gearbox

Features of drawing machine gearbox:

1. High efficiency and save power.

2. Wide speed ranges and high torque.
3. Multi-structure, various assembling methods.

4. High loading support, stable transmitting, and low noise level.

5. Excellent sealing, wide range of industrial applications.

6. It adopts various cooling and lubricating modes.



B3HV10-18-A-F drawing machine gearbox.

Model: B3HV10-18-A-F

Ratio: 18

No. of stages: 3

Output shaft design: Hollow shaft

Mounting: Vertical mounting

Size: 10

Flanged mounted

B series is Bevel Industry Gear unit, which is standardized gear unit solutions for higher power rating ranges condition. It uses a Modular design system and a High-stainless cast-iron case.

1: Compacted structure and higher strength.

2: Reliable operation, higher transmission efficiency.

3: Providing the output shaft with a Flange disc, which can meet the mounting requirements of narrow space.

Outstanding innovations: More sizes with a reduced variety of parts; Higher operational reliability combined with increased power capacity; Flanged output shafts facilitate assembly of gear reducer in confined spaces.



How to judge whether the load of drawing machine gearbox is normal?

Operating Parameters

Current: Monitor motor current; over-rated current indicates overload, and under-rated may suggest a light load or fault.

Speed: Compare actual and theoretical speeds; a deviation over ±5% may signal issues.

Temperature: Check with an infrared thermometer; excessive heat suggests overload, while too low could mean light load or malfunction.

Sound and Vibration

Sound: Normal operation should be quiet; unusual noises may indicate overload or damage.

Vibration: High vibration or abnormal frequencies suggest load imbalance or poor installation.

Performance

Output Torque: Measure with a torque tester; high torque indicates overload, and low suggests light load or fault.

Power Consumption: Excessive power suggests overload, while low could mean light load or inefficiency.



Our service

1. We supply detailed answers to technical questions.

2. Give our customers high performance, competitive prices, and more suitable transmission solutions.

3. Fast response in English, Spanish, Russian, German, Chinese, Arabic, and other languages.

4. Different kinds of payments are available for you.

5. 100% running test and debug before delivery.

6. At least 12 months warranty period.

7. Any questions you can contact us, we will respond as soon as possible.



FAQ

Q: Can you make the gearbox with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.



Q: Do you provide samples?
A: Yes. A sample is available for testing.



Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.



Q: What's your lead time?
A: Standard products need 25 - 30 days, a bit longer for customized products.
