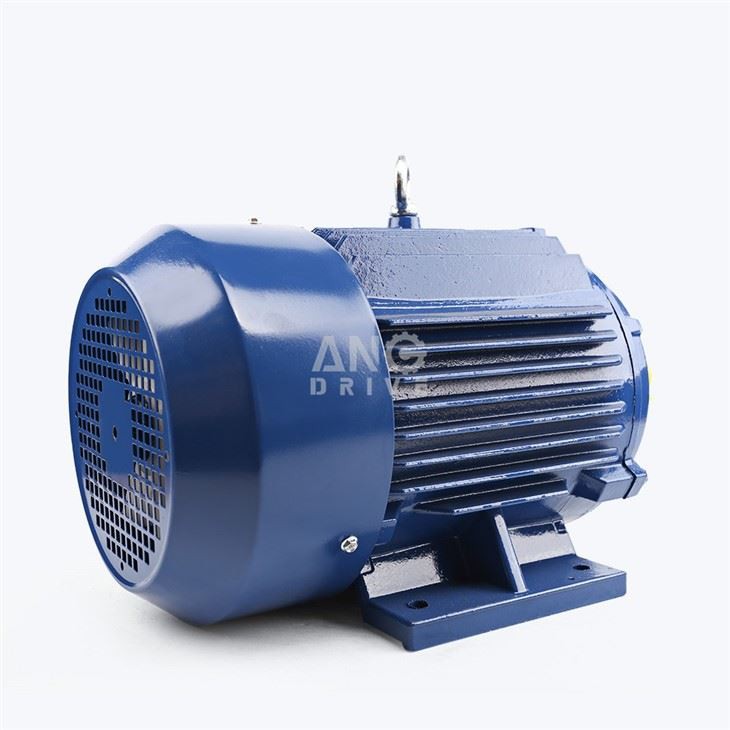

Y2 series high efficiency 5.5kw three phase electrical motor
helical gear motor
parallel shaft gear motor
worm gear motor
right angle gear motor

Brake Gearbox Motor

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of brake gearbox motor, which is high efficiency, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

Who We Are?

Hangzhou ANG Drive Co., Ltd. specializes in electric motor, gearbox, gear motor, and controlling system developing, manufacturing, quality controlling, and trading.

What do We Make?

1. AC electric motor

2. DC electric motor - brushed & brushless

3. Brake gear motor

4. Worm gearbox

5. Helical gearbox

Range of brake gearbox motor:

Type AC or DC

Power 6w ~ 250kw

Voltage 110v 220v 380v, etc.

Frequency 50Hz 60Hz

Speed 1rpm ~ 3600rpm

Technical datas of brake gearbox motor:

SYNCHRONOUS OUTPUT SPEED=1000RPM FREQUENCY=50HZ VOLTAGE=380V

MODEL	POWER (KW)	SPEED (RPM)	CURRENT (A)	EFF	POWER FACTOR	IST/IN	TST/TN	TMAX/TN	Static brake torque is not less than N.m	Excitation voltage UF(V)	Moment of inertia GB²	NOISE dB(A)
YEJ-90S-6	0.75kw	910rpm	2.2	79.9	0.72	6	2	2	14.7	170	0.01514	0.25
YEJ-90L-6	1.1kw	910rpm	3.8	78.1	0.73	6	2	2	29.4	170	0.01815	0.25
YEJ-100L-6	1.5kw	940rpm	3.8	79.8	0.74	6	2	2	39.2	170	0.03573	0.3
YEJ-112M-6	2.2kw	940rpm	5.4	81.8	0.74	6	2	2	73.6	170	0.07639	0.35
YEJ-132S-6	3kw	960rpm	7.4	83.3	0.74	6.5	2	2	73.6	170	0.15437	0.4
YEJ-132M1-6	4kw	960rpm	9.6	84.6	0.74	6.5	2	2	73.6	170	0.1906	0.4
YEJ-132M2-6	5.5kw	960rpm	12.9	86	0.75	6.5	2	2	93.6	170	0.2384	0.4
YEJ-160M-6	7.5kw	970rpm	17	87.2	0.79	6.5	2	2	147.2	170	0.45813	0.5
YEJ-160L-6	11kw	970rpm	24.2	88.7	0.79	6.5	2	2	147.2	170	0.59079	0.5
YEJ-180L-6	15kw	970rpm	31.6	89.7	0.81	6.5	1.8	2	215.8	170	0.9919	0.6
YEJ-200L1-6	18.5kw	970rpm	38.1	90.4	0.81	6.5	1.8	2	294.3	170	1.6609	0.7
YEJ-200L2-6	22kw	970rpm	44.5	90.9	0.82	6.5	1.8	2	294.3	170	1.838	0.7
YEJ-225M-6	30kw	980rpm	58.6	91.7	0.81	6.5	1.8	2	441.5	170	2.639	0.8
