Ball Screw Jack

Ball screw jack introduction

The screw jack is a type of jack that is operated by turning a screw rod. It is commonly used to lift moderately heavy weights, such as cars; to raise and lower the horizontal stabilizers of aircraft; and as adjustable supports for heavy loads, such as the foundations of houses.

It is featured with compact structure, stable lifting, high reliability, and safety self-locking.

Ball screw jack specification

1. Lifting speed: 150mm per minute ~1800mm per minute.
2. Input power: 0.75HP ~ 30HP.
3. Screw range: 5 ~ 16mm.
4. Load range: 2,000kg ~ 100,000kg.
5. Input options: flange or solid shaft.

Why choose our ball screw jack?

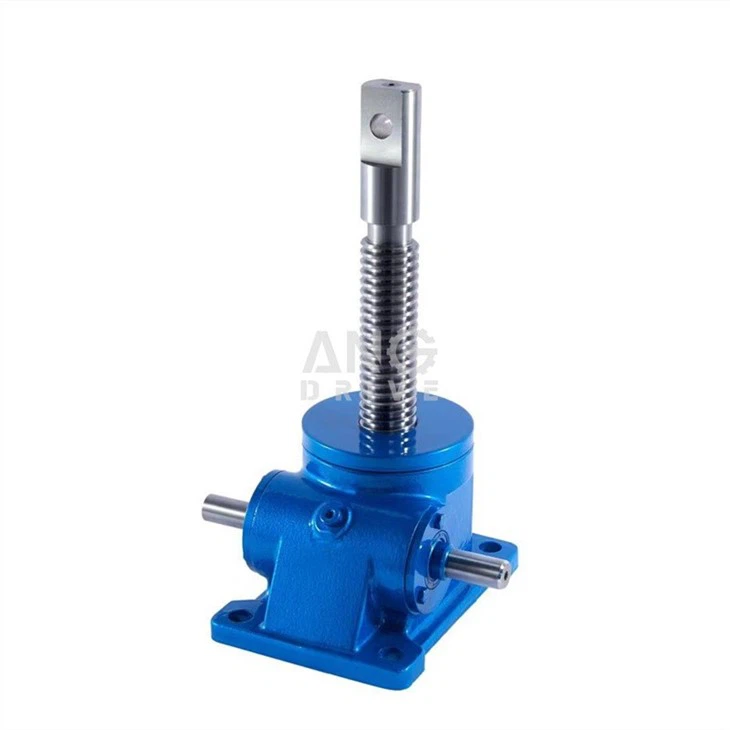

Jack photos

Column type

Bolt hole type

T-coping type

Round plate type

Flange input

Shaft end fixed

Worm screw jack structure

General applications

The large area of sliding contact between the screw threads means jacks have high friction and low efficiency, around 30%–50%. So they are not often used for continuous lifting of high power, but more often in intermittent operating applications.

In heavy duty applications, such as screw jacks, a square thread or buttress thread is used, because it has the lowest friction and wears.

SWL jack and HK jack

Our service

1. We supply detailed answers to technical questions.

2. Give our customers high performance, competitive prices, and more suitable transmission solutions.

3. Fast response in English, Arabic, and Chinese languages.

4. Different kinds of payments are available for you.

5. 100% current test and debug before delivery.

6. One-year warranty period.

7. Any questions you can contact us, we will respond as soon as possible.
