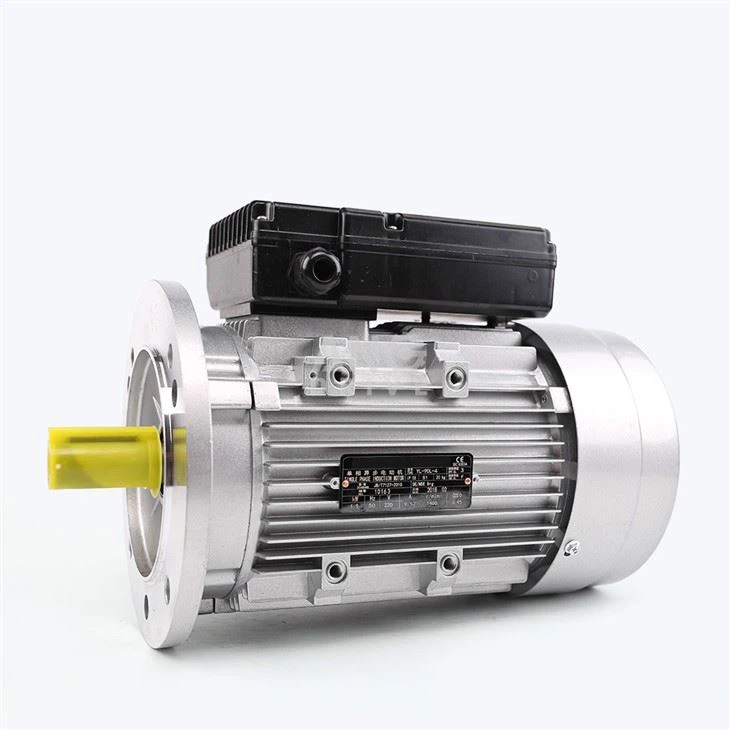

B5 Mounting Motor

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of 3hp electric motor which is high efficiency, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

B5 Mounting Motor Features

1. The foot can be removable and various mounting modes are available.

2. Be widely used in many fields, such as pumps, fans, ventilators, mixers, crushers, agitators, compressors, machine tools, food machines, transport machines, agriculture machines, etc.

3. Can be equipped with PTC if requested.

B5 Mounting Motor Specification

Motor Series	MS series, YL series, etc.	Rated Power	6w ~ 750w, below 1HP, Such as 1/8HP 1/6HP 1/4HP 1/3HP 1/2HP 3/4HP
Number of Poles	2Pole, 4Pole, 6Pole, 8Pole	Efficiency	IE1 / IE2 / IE3 / IE4
Voltage	110V 115V 220V 230V 380V 400V 415V 440V	Frequency	50Hz, 60Hz
Protection Class	IP54, IP55, IP56, IP65, IP66, IP67, IP69K waterproof	Insulation Grade	F
Cooling Method	IC411, IC410, IC416, TENV, TEFC	Continuous Working Duty	S1, S2, S3, S4, S5, S6, S7, S8
Starting Mode	Direct on-line Starting	Transport Package	Plywood case
Frame Material	Aluminum alloy or Stainless steel	Origin	Hangzhou, China
Mounting Position	IMB3/B5/B35/B14/B34	HS Code	8501520000 / 8501530090
Certification	CE	Specification	56B5, 56B14, 63B5, 63B14, 71B5, 71B14, 80B5, 80B14, 90B5, 90B14
Accessories	Helical gearbox, worm gear reducer, planetary reduction unit, thermal protector, forced cooling fan, rain cover, etc.	Warranty time	12 months

Why Choose Our B5 Mounting Motor?

advantage of ac motor

B5 Mounting Motor Details

description of ac motor

Multiple application

Generally, it is applied on water pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in a damp, dusty, or dirty environment.


Mechanical engineering	Mining equipment	Electricity equipment

Industrial	Food processing	Metallurgy

B5 Mounting Motor

Model		Output			Current			Speed			Eff.			P. F.			Torque			Ist			Tst			Tmax			Noise			Weight
		kW	hp		Amps			r/min			η%			cos ϕ			Nm			In			Tn			Tn			dB(A)			kg
Synchronous Speed 3000 r/min = 2-Poles (50Hz)
YE2	801-2	0.75		1			1.77			2855			77.4			0.83			2.51			6.8			2.3			2.3			62			17
YE2	802-2	1.1		1.5			2.50			2855			79.6			0.83			3.68			7.1									62			18
YE2	90S-2	1.5		2			3.34			2875			81.3			0.84			4.98			7.3									67			22
YE2	90L-2	2.2		3			4.73			2875			83.2			0.85			7.31			7.6									67			25
YE2	100L-2	3		4			6.19			2880			84.6			0.87			9.95			7.8			2.2						74			34
YE2	112M-2	4		5.5			8.05			2900			85.8			0.88			13.2			8.1									77			45
YE2	132S1-2	5.5		7.5			10.9			2900			87			0.88			18.1			8.2									79			67
YE2	132S2-2	7.5		10			14.7			2900			88.1			0.89			24.7			7.8									79			72
YE2	132M-2	9		12			0.9			2900			88.1			0.88			30.3			7.8									79			77
YE2	160M1-2	11		15			21.0			2940			89.4			0.89			35.7			7.9									81			102
YE2	160M2-2	15		20			28.4			2940			90.3			0.89			48.7			7.9									81			114
YE2	160L-2	18.5		25			34.4			2940			90.9			0.89			60.1			8									81			128
YE2	180M-2	22		30			40.7			2955			91.3			0.89			71.1			8.1									83			166
YE2	200L1-2	30		40			55.0			2965			92			0.89			96.6			7.5			2						84			230
YE2	200L2-2	37		50			67.5			2965			92.5			0.89			119			7.5									84			244
YE2	225M-2	45		60			81.8			2970			92.9			0.89			145			7.5			2.2						86			286
YE2	250M-2	55		75			100			2975			93.2			0.89			177			7.6									89			382
YE2	280S-2	75		100			135			2975			93.8			0.89			241			6.9			1.8						91			508
YE2	280M-2	90		125			160			2975			94.1			0.89			289			6.9									91			544
YE2	315S-2	110		150			195			2980			94.3			0.9			353			7						2.2			92			868
YE2	315M-2	132		180			233			2980			94.6			0.9			423			7									92			908
YE2	315L1-2	160		220			279			2980			94.8			0.91			513			7.1									92			1014
YE2	315L2-2	200		270			348			2980			95			0.91			641			7.1									92			1168
YE2	355M1-2	220		300			382			2980			95			0.91			705			7.1			1.6						100			1640
YE2	355M2-2	250		340			435			2980			95			0.91			801			7.1									100			1682
YE2	355L1-2	280		375			487			2980			95			0.91			897			7.1									100			1768
YE2	355L2-2	315		430			548			2980			95			0.91			1009			7.2									100			1818
Synchronous Speed 1500 r/min = 4-Poles (50Hz)
YE2	802-4	0.75	1			1.88			1390			79.6			0.76			5.15			6.4			2.3			2.3			56			17
YE2	90S-4	1.1	1.5			2.67			1400			81.4			0.77			7.50			6.6									59			18
YE2	90L-4	1.5	2			3.48			1400			82.8			0.78			10.2			6.7									59			22
YE2	100L1-4	2.2	3			4.90			1430			84.3			0.81			14.7			7.3									64			30
YE2	100L2-4	3	4			6.50			1430			85.5			0.82			20.0			7.5									64			32
YE2	112M-4	4	5.5			8.6			1440			86.6			0.82			26.5			7.5									65			42
YE2	132S-4	5.5	7.5			11.5			1440			87.7			0.82			36.5			7.5			2						71			56
YE2	132M1-4	7.5	10			15.3			1440			88.7			0.83			49.7			7.3									71			70
YE2	132M2-4	9	12			18.4			1440			88.7			0.83			61.0			7.3									71			75
YE2	160M-4	11	15			22.2			1460			89.8			0.85			72.0			7.4									73			106
YE2	160L-4	15	20			29.6			1460			90.6			0.86			98.1			7.5									76			130
YE2	180M-4	18.5	25			35.8			1470			91.2			0.86			120			7.6									76			162
YE2	180L-4	22	30			42.4			1470			91.6			0.86			143			7.7			2.1						76			180
YE2	200L-4	30	40			57.4			1470			92.3			0.86			195			7.1									78			234
YE2	225S-4	37	50			69.7			1480			92.7			0.86			239			7.3									78			278
YE2	225M-4	45	60			84.4			1480			93.1			0.86			290			7.3			2.2						79			314
YE2	250M-4	55	75			103			1480			93.5			0.86			355			7.3									80			406
YE2	280S-4	75	100			139			1480			94			0.88			484			6.8									80			512
YE2	280M-4	90	125			167			1490			94.2			0.88			577			6.9									88			516
YE2	315S-4	110	150			201			1490			94.5			0.89			705			6.9			2.1			2.2			88			898
YE2	315M-4	132	180			241			1490			94.7			0.89			846			6.9									88			956
YE2	315L1-4	160	220			288			1490			94.9			0.9			1026			6.9									88			1064
YE2	315L2-4	200	270			359			1490			95.1			0.9			1282			6.9									88			1212
YE2	355M1-4	220	300			393			1490			95.1			0.9			1410			6.9			2						95			1640
YE2	355M2-4	250	340			444			1490			95.1			0.9			1602			6.9									95			1682
YE2	355L1-4	280	375			497			1490			95.1			0.9			1795			6.9									95			1768
YE2	355L2-4	315	430			559			1490			95.1			0.9			2019			6.9									95			1818
Synchronous Speed 1000 r/min = 4-Poles (50Hz)
YE2	90S-6	0.75		1			2.09			910			75.9			0.72			7.87			5.8			2			2			57			20
YE2	90L-6	1.1		1.5			2.93			910			78.1			0.73			11.5			5.9									57			22
YE2	100L-6	1.5		2			3.81			940			79.8			0.74			15.2			5.9									61			28
YE2	112M-6	2.2		3			5.38			940			81.8			0.74			22.4			6.2									65			38
YE2	132S-6	3		4			7.20			960			83.3			0.74			29.8			6.4			2.1						69			58
YE2	132M1-6	4		5.5			9.5			960			84.6			0.74			39.8			6.6									69			68
YE2	132M2-6	5.5		7.5			12.6			960			86			0.75			54.7			6.8									69			76
YE2	160M-6	7.5		10			17.0			970			87.2			0.78			73.8			6.8			2						73			106
YE2	160L-6	11		15			24.2			970			88.7			0.79			108			6.9									73			130
YE2	180L-6	15		20			31.4			970			89.7			0.82			148			7.3									73			176
YE2	200L1-6	18.5		25			37.5			970			90.4			0.81			182			7.2			2.1						73			216
YE2	200L2-6	22		30			43.8			970			90.9			0.82			217			7.3									73			226
YE2	225M-6	30		40			57.8			980			91.7			0.82			292			6.8			2						74			292
YE2	250M-6	37		50			70.9			980			92.2			0.84			361			7			2.1						76			364
YE2	280S-6	45		60			85.8			980			92.7			0.86			439			7.2						2			78			472
YE2	280M-6	55		75			104			980			93.1			0.86			536			7.2									78			512
YE2	315S-6	75		100			141			990			93.7			0.85			723			6.5			2						83			806
YE2	315M-6	90		125			169			990			94			0.85			868			6.6									83			958
YE2	315L1-6	110		150			206			990			94.3			0.85			1061			6.6									83			990
YE2	315L2-6	132		180			244			990			94.6			0.86			1273			6.6									83			1050
YE2	355M1-6	160		220			291			990			94.8			0.87			1543			6.7			1.9						85			1634
YE2	355M2-6	185		250			336			990			95			0.86			1785			6.7									85			1680
YE2	355M3-6	200		270			363			990			95			0.87			1929			6.8									85			1735
YE2	355L1-6	220		300			400			990			95			0.87			2122			6.8									85			1800
YE2	355L2-6	250		340			454			990			95			0.87			2412			6.8									85			1850
YE2	355L3-6	280		375			509			990			95			0.87			2701			6.8									85			1900
