4HP Electric Motor is widely used in industries such as manufacturing, automotive, agriculture, and construction, where they are relied upon to power machines and equipment.-- ANG is your reliable supplier of 4hp electric motors.

Send Inquiry

Product Introduction

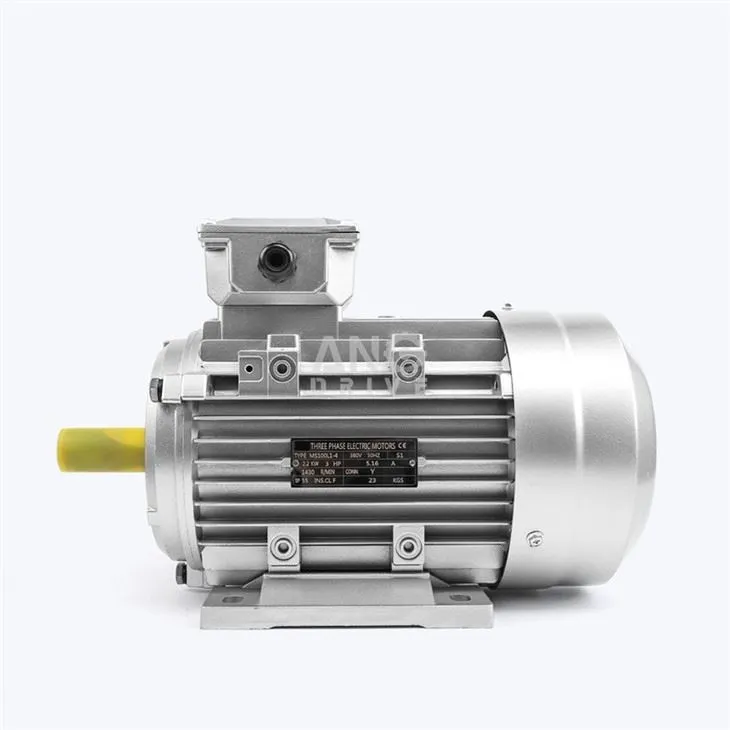

4HP Electric Motor is a type of AC motor that works on the principle of electromagnetic induction. They consist of a stator which houses a set of windings and a rotor which is typically made up of a set of conductive bars. 4HP Electric Motor is widely used in industries such as manufacturing, automotive, agriculture, and construction.

Main Parameters:

Product	4hp electric motor
Brand	ANG Drive
Product series	YS, YL, Frame 100 or 132 depending on different speed
Types	Asynchronous Motor
Frequency	Fixed 50 or 60Hz, or adjustable frequency
Phase	Single-phase or Three phase
Power	4hp 3 kw
Protect type	Drip-proof
Typical voltage	110V, 220V, 230V, 240 V, 380v
Efficiency level	IE2, IE3, IE4
Output speed	Fixed speed or Variable speed
Material of housing	Aluminum or Cast Iron or Stainless steel
Package	Carton and wooden case or pallet
Installation types	B14, B3, B5, B35, B34
Ambient Temperature	-15 ~ +40 °C
Protection level	IP55
Insulation	Class F
Duty Type	S1, S2

Advantages

	● High-strength shaft ● High accuracy ● High efficiency ● Long service life
● Nice shell ● Rustproof ● Keep new for a long time
	● High-quality terminal box ● Die-cast with high precision ● Uneasy to deform ● Long service life
● Fine processing cover ● Use high-strength material ● Uneasy to deform ● Long lifetime
	● High-efficiency heat emission hole ● A large area of heat dissipation ● Good heat dissipation performance
