Stainless Motors

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of stainless motors which are IE3 Premium efficiency, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

Stainless Motors Introduction

Our stainless motors are corrosion-resistant, they are designed to be suitable for wet, hostile, and sterile operating environments.

The stainless solution includes:

(1) Stainless motors: IEC metric dimension, imperial Nema inch dimension.

(2) Stainless gear motors: Inline helical geared motor, right angle worm gearbox motor, right angle bevel helical reducer motor.

(3) Stainless worm gearboxes: IEC dimension and inch dimension, NMRV with smooth surface, NMRV with heat dissipation ribs, VF round inox reductor.

Stainless Motors Characteristics

1. All external surfaces are stainless steel 304.

2. Low noise, low vibration, and lightweight.

3. Completely smooth surface.

4. Ideal for food processing, packaging, outdoor and highly corrosive environments, suitable for frequent washdown.

Stainless Motors Data Sheet

Motor Power	0.09KW 0.12HP, 0.12KW 0.18HP, 0.18KW 0.25HP, 0.25KW 0.33HP, 0.37KW 0.5HP, 0.55KW 0.75HP, 0.75KW 1HP, 1.5KW 2HP, 2.2KW 3HP, 3.7KW 5HP, 4KW 5HP, 5.5KW 7.5HP, 7.5KW 10HP, 11KW 15HP, 15KW 20HP, 18.5KW 25HP, 22KW 30HP
Frame Size	IEC 63-180 B5 B14, NEMA 56 - 286
Phase	Single Phase or Three Phase induction asynchronous AC
Voltage	110 V, 115 V, 120 V, 220 V, 230 V, 240 V, 380 V, 400 V, 415 V, 440 V, 480 V, 575 V, 600 V, 660 V, etc.
Poles	2pole 3000rpm 3600rpm, 4pole 1500rpm 1800rpm, 6pole 1000rpm 1200rpm
Protection Class	IP55, IP56, IP65, IP67, IP69K
Enclosure Type	IC411, IC410, IC416, TENV, TEFC
Mounting Type	B14, B3, B5, B35, B34
Ambient Temperature	-15 ~ +40 °C
Altitude	≤1000M
Material	Stainless steel 304
Flange Options	IEC: 63B5, 63B14, 71B5, 71B14, 80B5, 80B14, 90B5, 90B14, 100B5, 100B14, 112B5, 112B14, 132B5, 160B5, 180B5 NEMA: 56C, 56HC, 143TC, 145TC, 182TC, 184TC, 213TC, 215TC, 254TC, 256TC, 284TC, 284TSC, 286TC, 286TSC
Applications	Food Machine Dairies and Milk-Processing Equipment Pharmaceutical Industry Lab Supplications Beverage Production and Bottling Device Water Supply Machinery Cosmetics Industry Meat Poultry Processing Equipment

A stainless motor costs more than an aluminum electromotor or cast iron elektromotor, but investing in a more corrosion-resistant motor saves money and time in the long run, it is more suitable and safer for food and beverage applications. Unmatched product performance in highly caustic washdown applications combined with first-class customer service makes ANG Drive your first choice for speed reductor and stainless engine, wholesale competitive price from China manufacturer suppler.

Stainless Motors and Reducer Photos

TEFC Stainless Motor

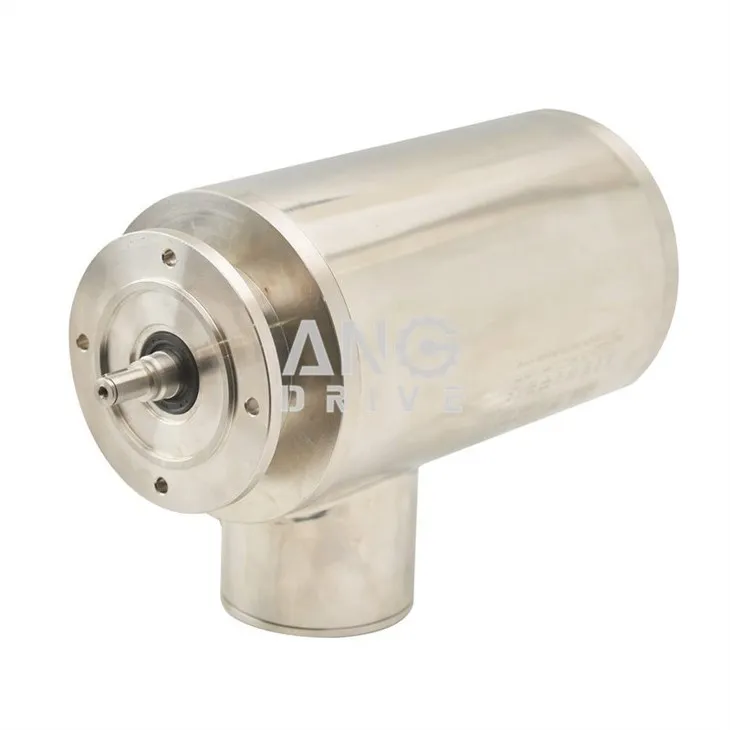

TENV Stainless Motor

Stainless Motor with Feet

Stainless Worm Reducer

Stainless Helical Gearbox

Stainless Bevel Gear Motor

Imperial Stainless Motor TEFC Data

HP	Full load r/min	Frame	Conn.	Code	Current at 460V			Torque			Efficiency			Power Factor
HP	Full load r/min	Frame	Conn.	Code	Idle	Full load (A)	Locked Rotor (A)	Full load (LB-FT)	Locked Rotor %	Break down %	Full load %	3/4 load %	1/2 load %	Full load %	3/4 load %	1/2 load %
1/4	3405	56C	2Y/Y	H	0.22	0.42	10	0.39	230	275	70.0	71.44	69.63	80	80.36	69.56
1/3	3405	56C	2Y/Y	H	0.32	0.54	10	0.51	230	275	71.0	73.56	71.40	81	78.15	66.47
1/2	3425	56C	2Y/Y	J	0.41	0.77	10	0.77	230	275	74.0	77.04	74.90	82	80.11	69.10
3/4	3410	56C	2Y/Y	H	0.59	1.12	12.5	1.16	200	275	75.5	78.11	76.88	83	81.78	71.31
1	3440	56HC	2Y/Y	J	0.63	1.45	15	1.53	185	250	77.0	81.10	79.73	84	84.96	75.53
1.5	3440	56HC	2Y/Y	H	0.87	1.99	20	2.29	175	250	84.0	82.91	82.15	84	86.20	77.77
2	3430	56HC	2Y/Y	G	0.91	2.55	25	3.07	170	240	85.5	84.61	83.99	86	89.24	82.72
1/4	1740	56C	2Y/Y	K	0.34	0.46	10	0.76	300	300	74.0	74.71	72.01	69	64.92	51.73
1/3	1735	56C	2Y/Y	J	0.46	0.58	10	1.00	300	300	76.0	76.54	72.98	70	65.19	51.84
1/2	1730	56C	2Y/Y	J	0.56	0.82	10	1.52	250	300	77.0	77.77	75.94	74	69.60	56.48
3/4	1725	56C	2Y/Y	H	0.83	1.22	12.5	2.29	275	300	78.0	79.36	78.01	74	71.14	58.37
1	1725	56HC	2Y/Y	G	1.06	1.52	15	3.05	250	280	82.5	82.88	81.73	75	71.94	59.16
1.5	1720	56HC	2Y/Y	G	1.34	2.12	20	4.59	250	280	84.0	84.58	83.88	79	75.50	63.49
2	1720	56HC	2Y/Y	G	1.64	2.78	25	6.11	235	270	84.0	85.64	85.00	80	76.83	65.21
1/4	1140	56C	2Y/Y	H	0.52	0.56	10	1.15	175	265	68.0	69.65	66.05	62	54.66	42.50
1/3	1140	56C	2Y/Y	H	0.61	0.70	10	1.52	175	265	70.0	72.74	69.69	64	56.17	43.79
1/2	1135	56C	2Y/Y	G	0.80	0.96	10	2.32	175	265	74.0	75.86	73.48	66	59.02	46.30
3/4	1135	56HC	2Y/Y	G	1.11	1.36	12.5	3.47	175	265	77.0	79.67	77.59	67	60.05	47.21
1	1135	56HC	2Y/Y	F	1.50	1.72	15	4.63	170	265	80.0	80.69	78.82	68	60.14	47.10
1.5	1130	56HC	2Y/Y	F	2.11	2.58	20	6.98	170	265	80.0	81.88	80.48	68	62.16	48.97
2	1130	56HC	2Y/Y	G	2.88	3.39	25	9.31	170	265	80.0	83.03	81.88	69	64.00	51.30

HP	Full load r/min	Frame	Conn.	Code	Current at 460V			Torque			Efficiency			Power Factor
HP	Full load r/min	Frame	Conn.	Code	Idle	Full load (A)	Locked Rotor (A)	Full load (LB-FT)	Locked Rotor %	Break down %	Full load %	3/4 load %	1/2 load %	Full load %	3/4 load %	1/2 load %
3/4	3410	143TC	2Y/Y	H	0.59	1.12	12.5	1.16	200	275	75.5	78.11	76.88	83	81.78	71.31
1	3440	143TC	2Y/Y	J	0.63	1.45	15	1.53	185	250	77.0	81.10	79.73	84	84.96	75.53
1.5	3440	143TC	2Y/Y	H	0.87	1.99	20	2.29	175	250	84.0	85.05	84.71	84	86.20	77.77
2	3430	145TC	2Y/Y	G	0.91	2.55	25	3.07	170	240	85.5	86.15	86.12	86	89.24	82.72
3	3455	145TC	2Y/Y	H	1.31	3.78	32	4.57	160	230	86.5	86.90	85.91	86	89.66	83.30
3/4	1725	143TC	2Y/Y	H	0.83	1.22	12.5	2.29	275	300	78.0	79.36	71.14	74	78.01	58.37
1	1725	143TC	2Y/Y	G	1.06	1.46	15	3.05	275	300	85.5	84.76	83.20	75	71.94	59.16
1.5	1720	145TC	2Y/Y	G	1.34	2.06	20	4.59	250	280	86.5	86.35	85.13	79	75.50	63.49
2	1720	145TC	2Y/Y	G	1.64	2.71	25	6.11	235	270	86.5	86.82	86.25	80	76.83	65.21
3	1725	145TC	2Y/Y	G	2.57	3.92	32	9.14	215	250	89.5	88.91	88.15	80	77.10	65.61
3/4	1135	143TC	2Y/Y	G	1.11	1.36	12.5	3.47	175	265	77.0	79.67	77.59	67	60.05	47.21
1	1135	145TC	2Y/Y	F	1.50	1.67	15	4.63	170	265	82.5	82.54	81.31	68	60.14	47.10
3	3510	182TC	2Y/Y	J	1.46	3.73	32	4.49	160	230	86.5	87.25	86.36	87	88.65	81.80
5	3500	184TC	2Y/Y	H	2.26	6.01	46	7.51	150	215	88.5	88.91	88.63	88	89.55	83.35
3	1765	182TC	2Y/Y	J	2.53	3.92	32	8.94	215	250	89.5	89.42	88.18	80	75.25	63.24
5	1760	184TC	2Y/Y	H	3.52	6.54	46	14.94	185	225	89.5	89.32	88.61	80	79.82	69.39
1.5	1175	182TC	2Y/Y	G	1.69	2.29	20	6.71	165	250	87.5	87.32	88.43	70	67.30	54.35
2	1170	184TC	2Y/Y	G	2.09	2.90	25	8.99	160	240	88.5	88.32	86.51	73	69.16	56.42
3	1170	184TC	2Y/Y	F	2.88	4.3	32	13.48	155	230	89.5	89.12	87.61	73	65.35	52.23
7.5	3520	213TC	2Δ/Δ	G	1.72	8.82	63.5	11.20	140	200	89.7	89.82	89.45	89	89.95	84.62
10	3520	215TC	2Δ/Δ	G	1.88	11.53	81	14.94	135	200	90.2	90.76	90.25	90	91.66	87.78
7.5	1760	213TC	2Δ/Δ	G	3.65	9.12	63.5	22.41	175	215	91.7	91.63	91.12	84	81.90	73.06
10	1760	215TC	2Δ/Δ	G	4.10	12.16	81	29.87	165	200	91.7	91.85	91.41	84	83.64	75.83
3	1175	213TC	2Y/Y	G	3.18	4.30	32	13.42	155	230	89.5	89.65	88.42	73.0	68.46	55.95
5	1170	215TC	2Y/Y	F	4.82	6.97	46	22.47	150	215	89.5	90.08	89.46	75.0	71.38	59.35
15	3560	254TC	2Δ/Δ	G	4.35	17.34	116	22.15	180	240	91.0	91.17	90.0	89	89.0	83.5
20	3560	256TC	2Δ/Δ	G	5.17	22.87	145	29.54	160	220	91.0	91.25	91.21	90	90.8	87.0
15	1765	254TC	2Δ/Δ	F	7.75	18.31	116	44.68	185	220	92.4	92.42	91.61	83	81.4	71.4
20	1765	256TC	2Δ/Δ	G	9.20	23.97	145	59.58	180	220	93.0	92.45	92.28	84	85.0	77.6
7.5	1170	254TC	2Δ/Δ	G	5.20	10.29	63.5	33.70	180	220	91.0	91.17	90.48	75	69.5	57.5
10	1170	256TC	2Δ/Δ	G	6.83	13.54	81	44.94	170	220	91.0	91.4	90.61	76	70.9	58.7
25	3560	284TSC	2Δ/Δ	F	6.60	28.68	182.5	36.92	170	220	91.7	92.05	91.76	89	89.9	85.1
30	3560	286TSC	2Δ/Δ	E	7.70	34.42	217.5	44.31	170	230	91.7	92.10	92.07	89	90.2	85.7
25	1770	284TC	2Δ/Δ	G	10.50	29.08	182.5	74.26	170	220	93.6	93.42	92.66	86	83.4	74.7
30	1770	286TC	2Δ/Δ	G	12.00	34.90	217.5	89.11	170	220	93.6	93.29	93.12	86	84.5	76.5
15	1175	284TC	2Δ/Δ	G	7.80	19.15	116	67.12	165	220	91.7	91.55	91.15	80	78.7	68.3
20	1175	286TC	2Δ/Δ	F	9.37	25.53	145	89.49	150	210	91.7	91.85	91.18	80	81.9	73.9

Imperial Stainless Motor TENV Data

HP	Full load rpm	Frame	Conn.	Code	Current at 460V			Torque			Efficiency			Power Factor
HP	Full load rpm	Frame	Conn.	Code	Idle	Full load (A)	Locked Rotor (A)	Full load (LB-FT)	Locked Rotor %	Break down %	Full load %	3/4 load %	1/2 load %	Full load %	3/4 load %	1/2 load %
1/4	3405	56C	2Y/Y	H	0.22	0.42	10	0.39	230	275	70.0	71.44	69.63	80	80.36	69.56
1/3	3405	56C	2Y/Y	H	0.32	0.54	10	0.51	230	275	71.0	73.56	71.40	81	78.15	66.47
1/2	3425	56C	2Y/Y	J	0.41	0.77	10	0.77	230	275	74.0	77.04	74.90	82	80.11	69.10
3/4	3410	56C	2Y/Y	H	0.59	1.12	12.5	1.16	200	275	75.5	78.11	76.88	83	81.78	71.31
1	3440	56HC	2Y/Y	J	0.63	1.45	15	1.53	185	250	77.0	81.10	79.73	84	84.96	75.53
1/4	1740	56C	2Y/Y	K	0.34	0.46	10	0.76	300	300	74.0	74.71	72.01	69	64.92	51.73
1/3	1735	56C	2Y/Y	J	0.46	0.58	10	1.00	300	300	76.0	76.54	72.98	70	65.19	51.84
1/2	1730	56C	2Y/Y	J	0.56	0.82	10	1.52	250	300	77.0	77.77	75.94	74	69.60	56.48
3/4	1725	56C	2Y/Y	H	0.83	1.22	12.5	2.29	275	300	78.0	79.36	78.01	74	71.14	58.37
1	1725	56HC	2Y/Y	G	1.06	1.52	15	3.05	250	280	82.5	82.88	81.73	75	71.94	59.16
1.5	1720	56HC	2Y/Y	G	1.34	2.12	20	4.59	250	280	84.0	84.58	83.88	79	75.50	63.49
2	1720	56HC	2Y/Y	G	1.64	2.78	25	6.11	235	270	84.0	85.64	85.00	80	76.83	65.21
1/4	1140	56C	2Y/Y	H	0.52	0.56	10	1.15	175	265	68.0	69.65	66.05	62	54.66	42.50
1/3	1140	56C	2Y/Y	H	0.61	0.70	10	1.52	175	265	70.0	72.74	69.69	64	56.17	43.79
1/2	1135	56C	2Y/Y	G	0.80	0.96	10	2.32	175	265	74.0	75.86	73.48	66	59.02	46.30
3/4	1135	56HC	2Y/Y	G	1.11	1.36	12.5	3.47	175	265	77.0	79.67	77.59	67	60.05	47.21
1	1135	56HC	2Y/Y	F	1.50	1.72	15	4.63	170	265	80.0	80.69	78.82	68	60.14	47.10
3/4	3410	143TC	2Y/Y	H	0.59	1.12	12.5	1.16	200	275	75.5	78.11	76.88	83	81.78	71.31
1	3440	143TC	2Y/Y	J	0.63	1.45	15	1.53	185	250	77.0	81.10	79.73	84	84.96	75.53
3/4	1725	143TC	2Y/Y	H	0.83	1.22	12.5	2.29	275	300	78.0	79.36	71.14	74	78.01	58.37
1	1725	143TC	2Y/Y	G	1.06	1.46	15	3.05	275	300	85.5	84.76	83.20	75	71.94	59.16
1.5	1720	145TC	2Y/Y	G	1.34	2.06	20	4.59	250	280	86.5	86.35	85.13	79	75.50	63.49
2	1720	145TC	2Y/Y	G	1.64	2.71	25	6.11	235	270	86.5	86.82	86.25	80	76.83	65.21
3/4	1135	143TC	2Y/Y	G	1.11	1.36	12.5	3.47	175	265	77.0	79.67	77.59	67	60.05	47.21
1	1135	145TC	2Y/Y	F	1.50	1.67	15	4.63	170	265	82.5	82.54	81.31	68	60.14	47.10

Other Gearbox and Electrical Motors

gearbox and motors

FAQ

Q: Which countries can you send stainless steel electric motor to?

A: Kenya, Ghana, India, Sri Lanka, Pakistan, Indonesia, Malaysia, Britain, Europe, England, Italy, France, Germany, Spain, Netherlands, Switzerland, Russia, Austria, Belgium, Croatia, Czech Republic, Denmark, Finland, Hungary, Iceland, Luxembourg, Monaco, Norway, Portugal, Romania, Sweden, Turkey, Ukraine, Vatican, Japan, Afghanistan, Bangladesh, Brunei, Burma, Cambodia, Laos, Maldives, Mongolia, Nepal, North Korea, South Korea, Iraq, Israel, Iran, Saudi Arabia, Syria, Australia, New Zealand, Fiji, Canada, America, USA, Belize, Bermuda, Dominica, Nicaragua, Panama, Argentina, Brazil, Chile, Columbia, Uruguay, Peru, Venezuela, Africa, Uganda, Zambia, Zimbabwe, Tanzania, Somalia, Sudan, Niger, Nigeria, Mali, Morocco, Madagascar, Libya, Egypt, Ethiopia, Jordan, Ecuador, etc.

Q: What typical models there are?

A: SS63, SS71, SS80, SS90, SS100, SS112, SS132

NSS63, NSS71, NSS80, NSS90, NSS100, NSS112, NSS132

HYW63, HHYW71, HYW80, YW90, HYW100, HYW112, HYW132, HYW160

EUT-SS, FUT-SS, FUTF-SS, GUT-SS, HUT-5/8-SS, HUTF-5/8-SS, HUT-SS, HUTF-SS, JUTF-SS, KUTF-SS, LUTF-SS, MUTF-SS, NUTF-SS, PUTF-SS

SPM TENV TEFC 63A 63B 71A 71B 80A 80B 90S 90L 100LA 100LB

WSSNV13-18-56CRD, WSSNV13-18-56CB, WSS13-18-56CRD, WSS13-18-56CB, WSSNV12-18-56CRD, WSSNV12-18-56CB, WSS12-36-56CB, WSS12-18-56CRD, NAWSS12-18-56CB, WSSNV34-18-56CRD, WSSNV34-18-56CB, WSS34-36-56CB, WSS34-18-56CRD, WSS34-18-56CB, NAWSS34-18-56CB, NAWSSE1-18-56CB, NAWSSE1.5-18-56CB, NAWSSE2-18-56CB
