Shaft is an important part of the motor, as a link between the motor and equipment mechanical and electrical energy conversion, supporting the rotating parts, transfer torque and determine the relative position of the rotating parts to the stator. Therefore, the motor shaft must have reliable strength and stiffness to ensure the realization of the preset design function.

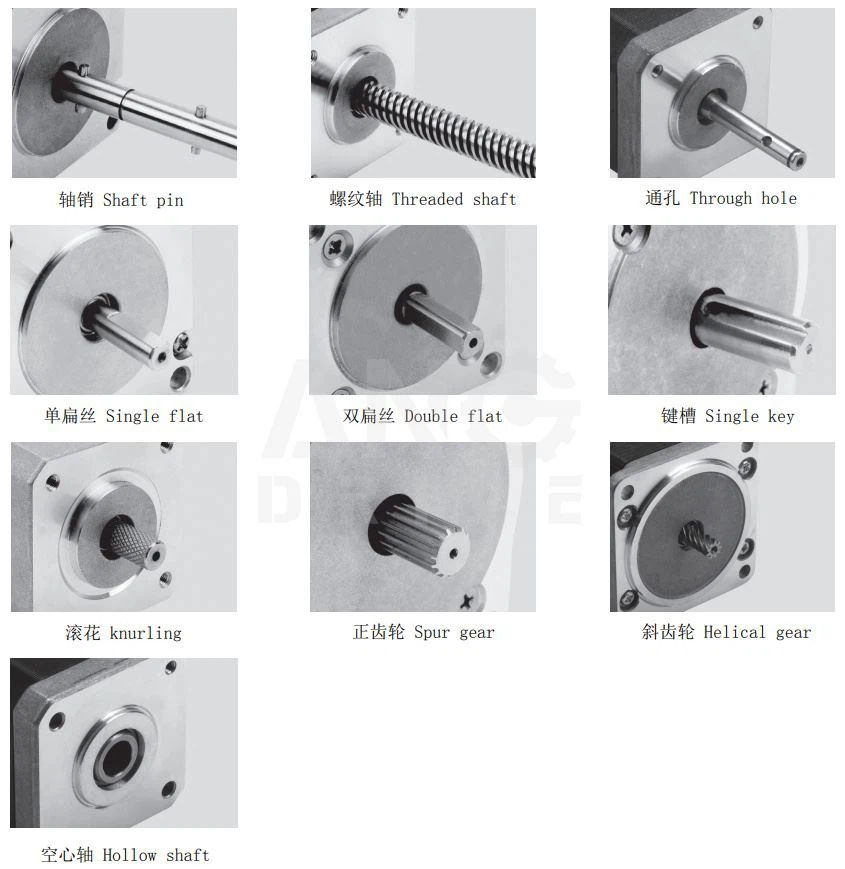

The following is a brief description of each type of output shaft to provide reference for shaft selection and design.
1. key output
The most general output mode, such as flat key, semicircle key, wedge key, section key
2. spline output
There are two output modes of rectangular spline and involute spline
3: pin output
4: gear shaft output
There are helical gear and spur gear output mode
5: hollow shaft output
6: flat shaft output
There are single flat and double flat output mode
Do you know what other types of shafts are?
