WPWEDKO Gearbox

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of WPWEDKO Gearbox which is free from oil leakage, low noise, low-temperature rise, long service life, etc.

Send Inquiry

Product Introduction

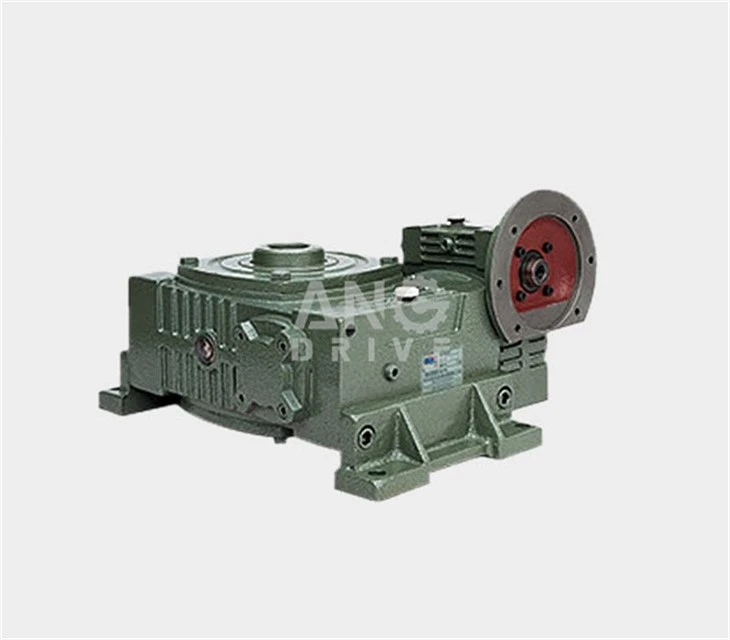

WPWEDKO Gearbox

WPWEDKO Drawing:

Parameters:

Size	Input (Kw)	Ratio	A	AB	B	BA	BC	BE	HB	CA	M	N	E	E₁	E₂	G	Z	Flange					Input Hole			Output Shaft		Weight (Kg)
																		LA	LB	LC	LE	LZ	Q	U	TxV	S	WxY
40-70	0.12	200 300 400 500 600 800 900	287	126	132	40	65	75	50	145	152	305	120	120	155	20	15	115	95	140	4	M8	31	11	4x12.8	30	8x33.3	20
50-80	0.18		314	144	150	50	70	83	65	163	174	350	140	140	180	20	15	115	95	140	4	M8	31	11	4x12.8	35	10x38.3	31
60-100	0.37		387	175	174	60	90	91	75	191	224	410	190	165	215	22	15	130	110	160	4	M8	33	14	5x16.3	40	12x43.3	48
70-120	0.37		425	193	180	70	100	109	90	229	264	494	220	195	255	25	18	130	110	160	4	M8	40	14	5x16.3	45	14x48.8	71
	0.75		445					111		231								165	130	200		M10	42	19	6x21.8
80-135	0.75		499	226	214	80	110	125	105	260	304	559	260	230	285	30	18	165	130	200	4.5	M10	48	19	6x21.8	60	18x64.4	107
	1.5																						52	24	8x27.3
100-155	1.5		570	269	256	100	140	148	130	303	345	605	290	250	305	35	21	165	130	200	4.5	M10	52	24	8x27.3	70	20x74.9	166
120-175	2.2		631	287	282	120	150	181	155	356	374	675	320	273	348	40	21	215	180	250	5	M12	63	28	8x31.3	80	22 x 85.4	211
	3.0
135-200	3.0		680	318	324	135	175	202	185	402	424	749	370	305	390	40	24	215	180	250	5	M12	63	28	8x31.3	85	22 x 90.4	307
	4.0
155-250	4.0		815	380	400	155	200	224	203	474	510	920	440	375	475	45	28	215	180	250	5	M12	63	28	8x31.3	110	28x116.4	484
	5.5							247		497								265	230	300	5	M12	83	38	10x41.3
