Favorable price, fast delivery, timely service-- ANG is your reliable supplier of stainless steel worm gearbox which is free from oil leakage, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

ANG stainless steel products are corrosion resistant, they are designed to be suitable for wet, hostile and sterile operating environments.

The solution includes:

(1) Stainless steel electric motors: IEC metric dimension, Nema inch dimension.

(2) Stainless steel gear motors: coaxial helical geared motor, right angle worm geared motor, angular bevel helical geared motor.

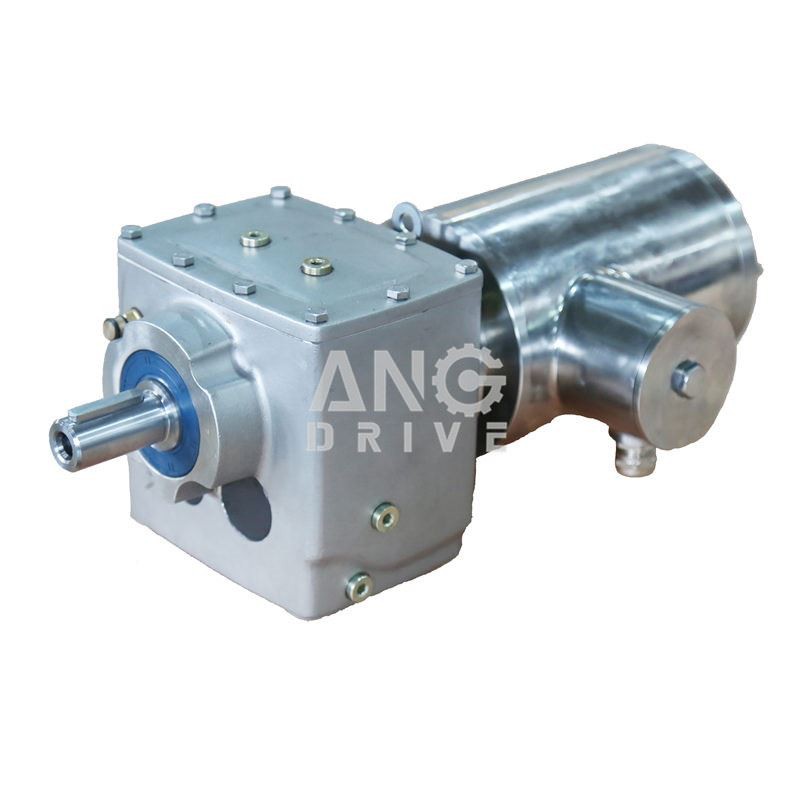

(3) Stainless steel worm gearbox: IEC series and inch series, NMRV smooth surface type, NMRV with heat dissipation ribs type, VF round type.

Main parameters of stainless steel worm gearbox:

Typical Models	NMRV030, NMRV040, NMRV050, NMRV063
Motor Power	0.06kw ~ 1.5kw
Input speed	750rpm ~ 2000rpm
Reduction ratio	1/5 ~ 1/100
Input motor	AC IEC or NEMA (1 phase or 3 phase), DC
Output type	Hollow shaft, solid shaft, flange
Housing material	304 or 316 food grade material
Dimension standard	Metric size, Inch size
Lubrication oil	Food grade oil
Accessories	Input flanges, Output flanges, Solid output shaft, Torque arm, etc.
Applications	Poultry & Meat Processing Dairy processing Pharmaceutical

Always a clean solution

Stainless steel worm gearbox from ANG is characterized by their special housing design and the use of high quality stainless steel, recesses that can collect dirt and liquid have been eliminated as much as possible. Its surface is easy to clean and highly resistant against acids and alkalis; widely application in salt spray, dusty, high temperature, and extremely wet environments to prevent any form of corrosion.

FAQ:

Q: What spare parts can you provide for stainless steel worm gearbox?
A: We can provide input flange, output flange, single solid shaft, double solid shaft, torque arm, etc, you can order the spare parts together, and replace them in your own warehouse depend on customer application.

Q: What is your MOQ?
A: We can offer a sample for your evaluation.

Q: How to ship to us?
A: It is available by air, or by sea, or by train.

Q: How long is your delivery time?
A: Generally it needs 20 ~ 60 days, depending on different products and quantities.

Photos for your reference:

stainless steel electrical motor
