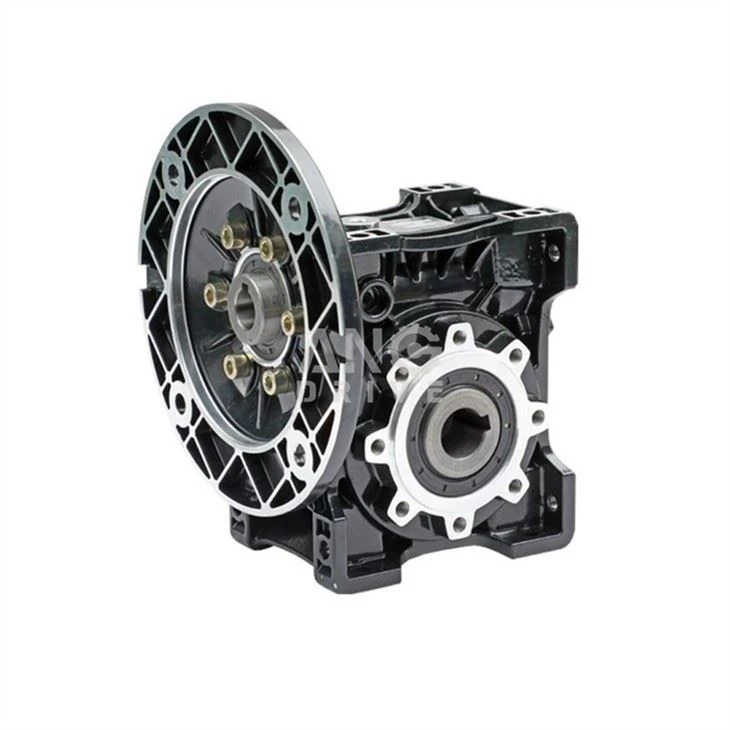

Worm Gear Unit B5 Flange

1

Model Code:  RV: Hole input with flange

V:   Shaft   input without flange

2

The central distance of the worm wheel and worm shaft

3

Speed ratio of reducer

(I=7.5;   10; 15; 20; 25; 30; 40; 50; 60; 80; 100)

4

1)     No mark   means without output flange

2)     E:   Double extension worm shaft

5

1)     No mark   means without output flange

2)     FA, FB,   FC, FD, FE(1/2): output flange and position

6

1)     No mark   means hole output

2)     AS(1/2):   Single output shaft and position

3)     AB:   Double output shaft

7

Normalized form of input flange (without motor)

8

Installation position code

9

1)     No mark means without motor

2)     Model motors (poles of power)

10

Position diagram for motor terminal box, default position 1 can be no mention

Updated Configuration

● The gearbox is free from oil leakage

● Total performance is 15% better

● More stiffener ribs cool down gearbox quickly

Multiple Motor Inputs

● AC motor: 1 phase   or 3 phase

● DC brush motor

● DC brushless motor

● Stepper motor

● Servo motor

Multiple designs

 ● A new design like the left photo

● Metric size or Inch size

● Square or Round shape

● Aluminum or stainless steel
