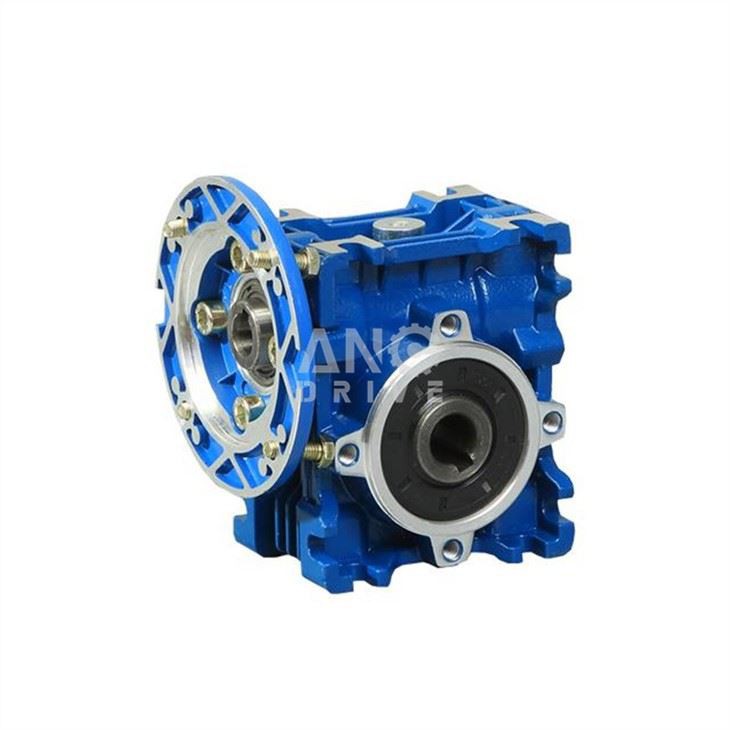

Worm Gear Box With B5 Flange
Worm Gear Box With B5 Flange Parameters:
Type: | NMRV Gearbox |
Model: | 25-150 |
Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 |
Color: | Blue/Grey Or On Customer Request |
Material: | Housing: Die-Cast Aluminum Alloy for RV25-RV90, die-cast cast iron for RV110 to RV150 |
Worm Gear-Copper-9-4# | |
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |
Shaft-chromium steel-45# | |
Packing: | Carton and Wooden Case |
Bearing: | C&U Bearing |
Seal: | SKF |
Warranty: | 12Months |
Input Power: | 0.12kw~15kw |
Usages: | Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing, |
IEC Flange: | B5/B14 |
Lubricant: | Synthetic&Mineral |
Worm Gearbox with B5 Flange Main Materials
1. Housing: Die-cast aluminum alloy(frame size 025-090); cast iron(frame size 110-150)
2. Worm shaft: 20CrMnTi, carbonize heat treatment make the hardness of gear's surface up to 56-62 HRC. Retain carburization layer's thickness between 0.3 and 0.5mm after precise grinding
3. Worm wheel: wearable tin bronze alloy
Worm Gearbox with B5 Flange Surface Painting
Aluminum alloy housing:
1. Shot blasting and special antiseptic treatment on the aluminum alloy surface
2. After the phosphate treatment, paint with RAL 5010 blue, silver, grey, red or based on customer demands
Cast housing:
First paint with red anti-rust paint, then paint with RAL 5010 blue or silvery-white paint
FAQ
Q: Can you make the worm gearbox with a B5 flange with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples of the worm gearbox with a B5 flange?
A: Yes. The sample is available for testing.
Q: What is your MOQ of the worm gearbox with a B5 flange?
A: It is 20pcs for the beginning of our business.
