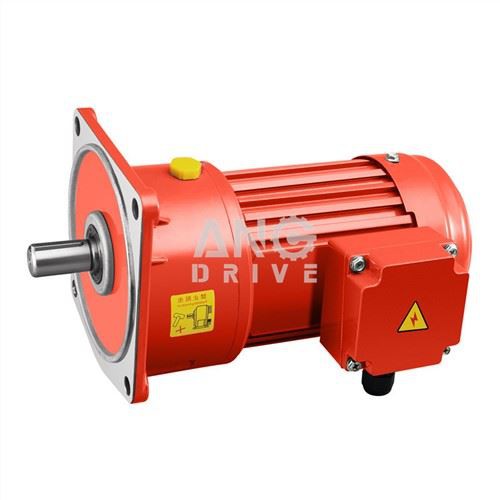

3.7kw Motor
Favorable price, fast delivery, timely service-- ANG is your reliable supplier of 3.7kw Motor which is free from oil leakage, low noise, low temperature rise, long service life, etc.
Send Inquiry
Product Introduction
Main parameters:
Name | 3.7kw motor |
Motor power | 3.7kw, 5HP |
Motor speed | 1350rpm at 50Hz, 1650rpm at 60Hz |
Reducer ratio | 1:3 ~ 1:200 |
Reducer torque | 5.5 ~ 127Nm |
Reducer shaft | Diameter*40mm: length 65mm, Diameter*50mm: length 80mm |
Central height | Diameter*40mm:160mm, Diameter*50mm:200mm |
Foot holes distance | Diameter*40mm: 210mm, Diameter*50mm: 265mm |
Total weight | Diameter*40mm: 54.8kg, Diameter*50mm: 98.5kg |
Total length | 545mm/605mm/with brake (including shaft) |
Advantages | ● 100% No oil leakage ● 10%+ Lower noise ● 10%+ Lower temperature rise ● 10%+ Higher load capacity ● 100% current test and debug before delivery. |
Hot Tags: 3.7kw motor, China, suppliers, manufacturers, factory, wholesale, price
