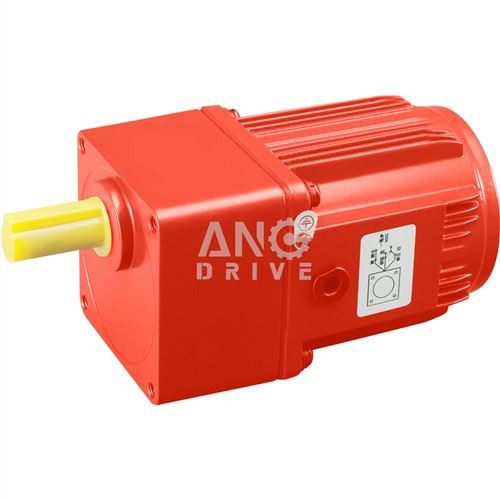

370w Gear Motor
Favorable price, fast delivery, timely service-- ANG is your reliable supplier of 370w gear motor which is free from oil leakage, low noise, low-temperature rise, long service life, etc.
Send Inquiry
Product Introduction
Main Characteristics:
Name | 370w gear motor |
Motor Size | 100mm*100mm |
Motor Power | 370w |
Motor Current | 1.2A-3.0A |
Motor Rated Torque | 2280~ 2624mNm |
Motor Capacitor | 15uF ~ 36uF |
Motor shaft diameter | 15mm |
Motor weight | 5kg |
Gearbox Ratio | 1:3 ~ 1:250 |
Gearbox torque | 6.22~ 43Nm |
Gearbox shaft dia. | solid shaft: 20mm, hollow shaft: 22mm |
Total weight | 8.7kg/8.8kg/8.9kg/9.4kg/9.5kg |
Total length | 166mm/235mm/279mm |
Advantages | ● 100% No oil leakage ● 10%+ Lower noise ● 10%+ Lower temperature rise ● 10%+ Lower price ● 10%+ Higher load capacity ● IP55 full protection |
