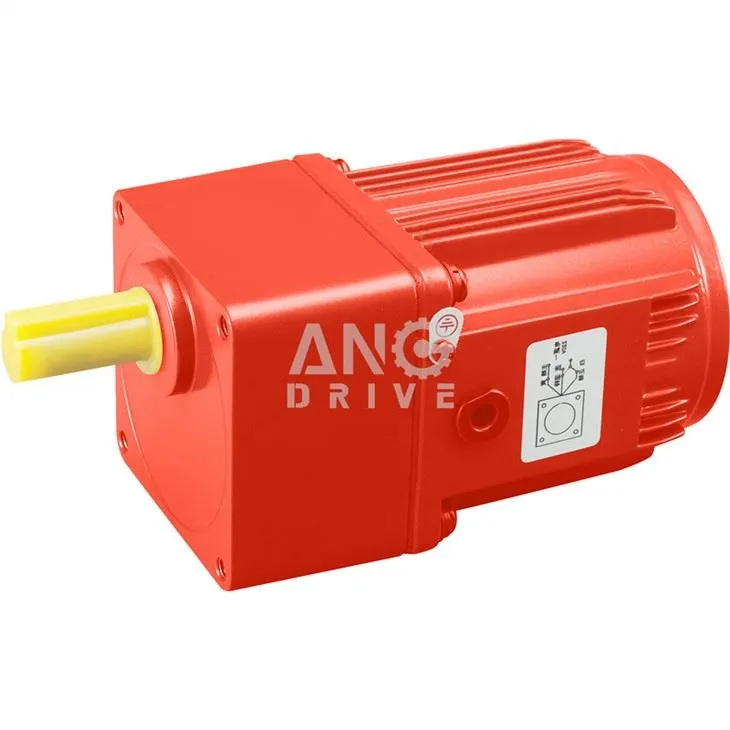

20w Small Motor

The 20W small motor is a compact and efficient electro-mechanical device that converts electrical energy into rotational mechanical force. Comprising key components like a stator, rotor, and housing, it safeguards internal parts and facilitates heat dissipation. This motor is widely used, from laboratory tools to consumer electronics.

Send Inquiry

Product Introduction

Products Features

True to its 20W rating, it consumes minimal electrical power, making it highly suitable for battery-powered or energy-sensitive applications. This feature allows portable devices like handheld power tools, small drones, and wearable gadgets to operate for extended periods without frequent recharging, enhancing user convenience.

Products Advantages

In the booming market of portable electronics, the 20W small motor's energy-efficient nature gives it a competitive edge. It helps extend battery life, reducing the need for users to constantly search for charging ports. This not only enhances the usability of the end product but also contributes to a more sustainable energy consumption pattern.

Details Images

AC right angle hollow shaft gear motor without t-box

Products Description

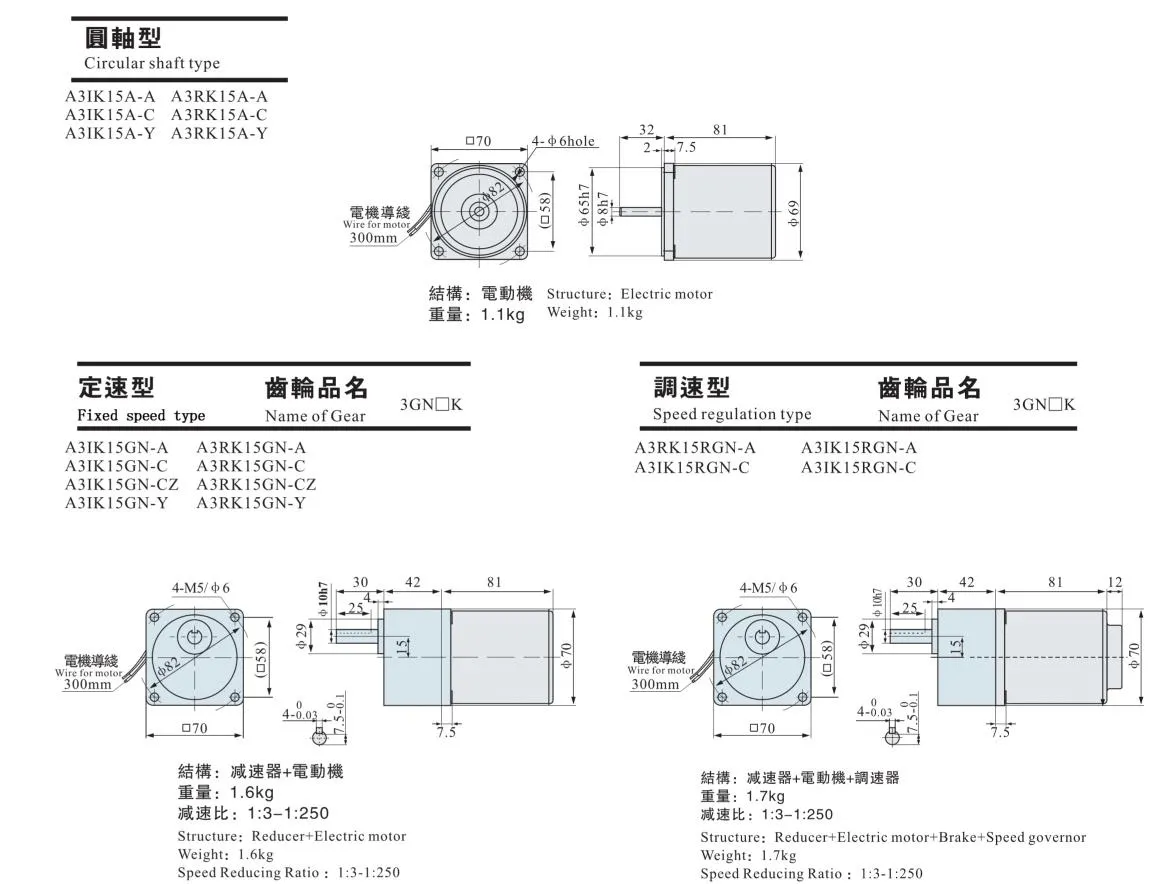

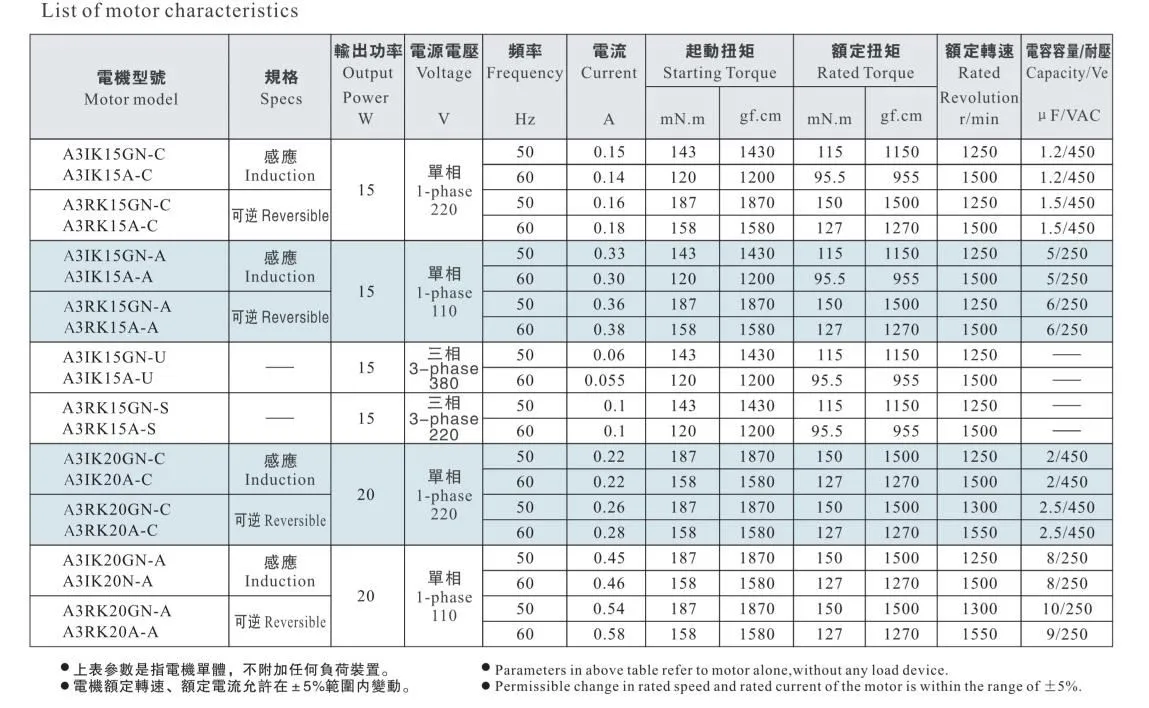

Main parameters:

Name	20w small motor
Size	70mm*70mm
Motor power	20w
Motor current	0.22 ~ 0.58A
Motor torque	127 ~ 150mNm
Capacitor	2 ~ 10uF
Motor shaft diameter	8mm
Motor weight	1.1kg

Gear Ratio	1/3 ~ 1/250
Gearbox torque	0.35~ 4.9Nm
Gearbox shaft dia.	10mm
Total weight	1.6kg/1.7kg/1.9kg/2.0kg
Total length	93mm/132mm
Why choose us?	● 100% No oil leakage ● 10%+ Lower noise ● 10%+ Lower temperature rise ● 10%+ Lower price ● 10%+ Higher load capacity ● IP55 full protection

Typical Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Entertainment	Gaming Machines, Kiddie Ride
