Favorable price, fast delivery, timely service-- ANG is your reliable supplier of rectangular gear motor which is free from oil leakage, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

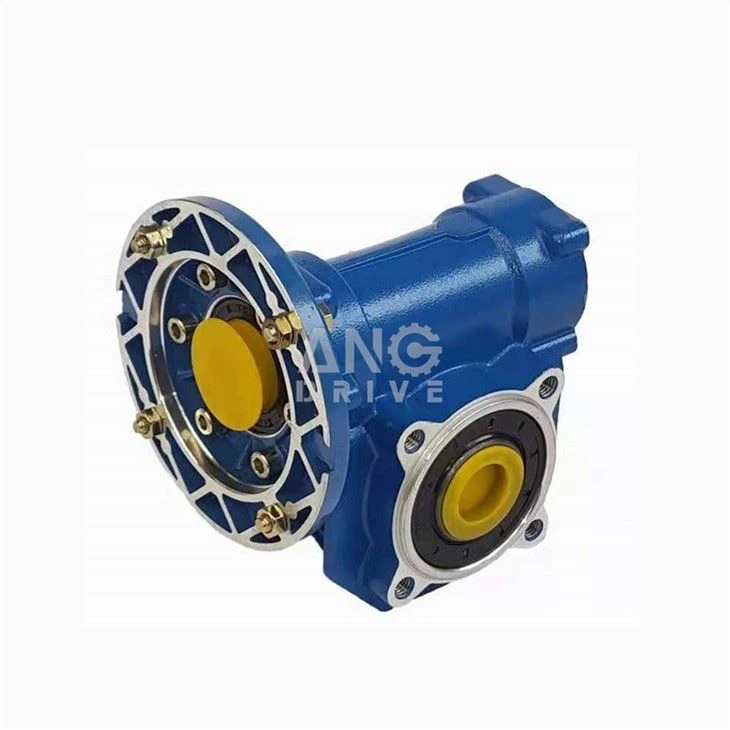

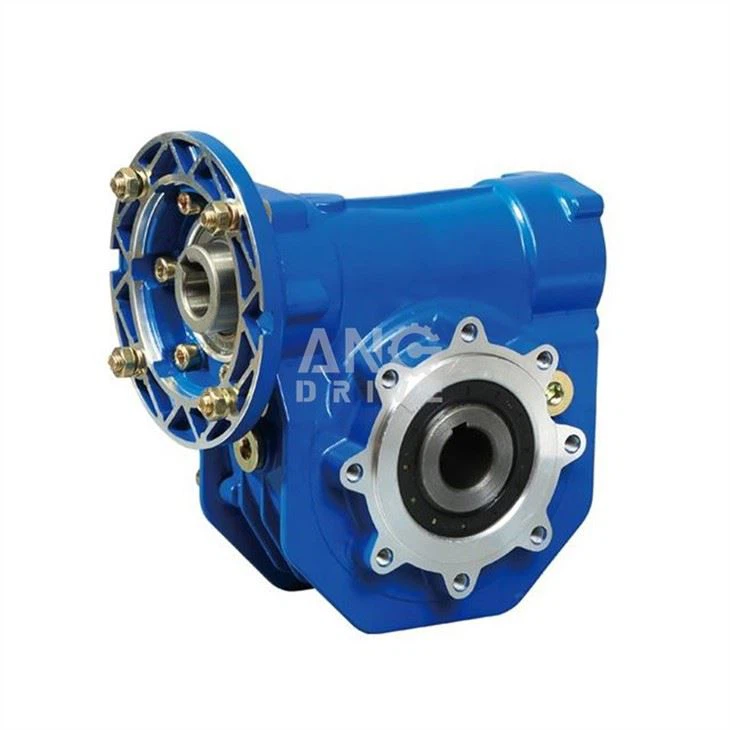

VF Gear Reducer General specification:

VF series worm gear reducer
Power	0.06kw - 15kw (frame 56 ~ 160)
Input speed	750rpm ~ 2000rpm
Input motor	AC (1 phase or 3 phase) / DC / BLDC
Torque	24N.m - 2000N.m
Ratio	1/7 ~ 1/100
Color	sliver, black, blue, grey
Material	Aluminum Alloy (VF 30 - VF72), Cast iron (VF86 - 150)
Packing	Inner pack: use plastic bag and foam box, Outer pack: carton or wooden case per set or based on customer's request.
Type	VF30	VF44	VF49	VF63	VF72	VF86	VF110	VF130
	VF150
Mounting Position	Base mounted with solid shaft or hollow shaft
	Installation of output flange with solid shaft or hollow shaft

VF Gear Reducer Features:
Vf Series Worm Wheel Reducer Similar Motovario Types. Helical gearbox series not only has higher transmission efficiency and loading capability than those of single-stage worm wheel transmission, but also reduces space. Moreover, under the close volume, the series can obtain higher transmission ratio and is more favorable for equipment setting. This product can be combined with various reducers to meet different requirements. S series with self-lock function
Energy Efficiency: Leveraging the advantages of high efficiency of helical gears and smooth transmission of worm gears, the reducer performs with outstanding stability and efficiency is above 90%
Loading Capacity: Available with power ranges from 0.12KW to 37KW, depending on different requirements and applications.
Installation Flexibility: All models are designed for a choice of mounting position M1-M6 specified by customers.

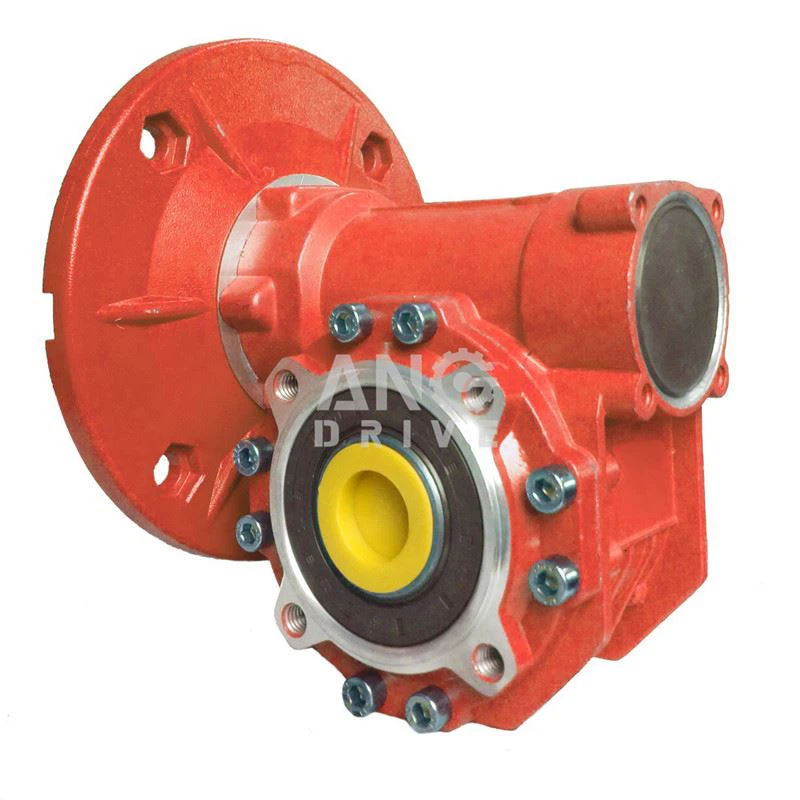

Small Worm Gear reducer

FAQ

Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.

Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.

Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.
