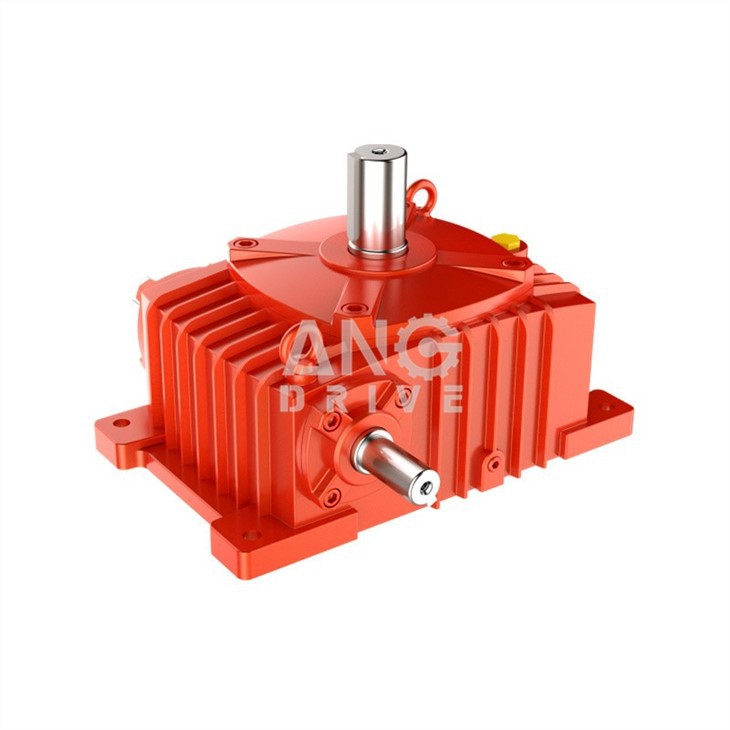

Small Worm Gearbox
Introduction of small worm gearbox:
Model | 025 ~ 150 or double stage like 063/090 |
Power of motor | 0.01kw ~ 15kw |
Input speed | 750rpm ~ 2000rpm S1, up to 3000-4000rpm S2 |
Reduction ratio | 1/5 ~ 1/100 of single stage, bigger for double stage |
Input motor | AC (1 phase or 3 phase) / DC / BLDC / Stepper / Servo |
Output types | Solid shaft / Hollow shaft / Output flange… |
Dimension standard | Metric dimension / Nema dimension |
Material of housing | die-cast aluminum / Cast iron / Stainless steel |
Accessories | Flange / Solid shaft / Torque arm / Cover … |
Features of small worm gearbox:
Saving space: The installation of a hollow type reducer forms a right angle with a motor, thus facilitate the miniaturization of the machine.
Self-locking: For the place require for minor holding force, save the cost of the braking device, such as in slope conveyor, hoist, lifting equipment.
Fast stop: The ordinary worm gear available in the market requires 5 ~10 seconds of stop time. But NRV series product only needs 2~5 seconds to reach of state of stillness.
High accommodation: You may select from a hollow shaft. Uni-direction output shaft, easy to modify, only one minute to complete the disassemble and assemble of the shaft.
High safety: Use transmission different from the conventional method, no sprocket pulley is needed, no exposed transmission structure, easy to install the gearbox.
Good protection: Waterproof, dustproof, protection class IP55 possesses, good isolation to dust and moisture.
