Small DC Motor
Production Specification
Name | Small DC Motor | ||
Motor type | DC brush motor, with positive and negative wire, BLDC is also available | ||
Motor diameter | 18mm ~ 126mm | ||
Speed range | Standard is 1500 rpm to 5000 rpm, it can be customized | ||
Power range | 6W ~ 2200W, it can be customized | ||
Output shaft types | Round shaft, keyway shaft, pinion shaft, spline shaft, etc. | ||
Voltage range | 12V ~ 310V, it can be customized | ||
Spare parts | Speed controller, Connector, Brake, Encoder, etc. | ||
| Output flange | B14 flange, B5 flange, square flange, Nema flange, no flange | ||
| Can be used with | Helical gearbox, Worm gearbox, Bevel gearbox, Planetary gearbox | ||
Product To Gear or Not to Gear
DC motors without mechanical gearboxes are viable power sources in a wide range of applications where the motor’s shaft speed is not an issue. Take the simple fan, for example. In most cases, the faster a fan can spin, the better it is at accomplishing its task—moving air to cool a room or components. In the case of a fan, the shaft speed of a DC motor does not cause an issue.
In other applications where shaft speed must be controlled, a DC motor alone may not be the best option. Applications such as an automatic sliding door, or turntable in a microwave oven will require a mechanical gearbox to reduce the shaft speed of the motor to manageable and easily controllable values.
The question of whether a DC motor with or without mechanical gears is best obviously varies from application to application. It may be helpful to talk with a custom DC electric motor expert when choosing the power supply of your application.
If you need, we can offer a sample of small DC motor, so that you can test our quality before mass production.

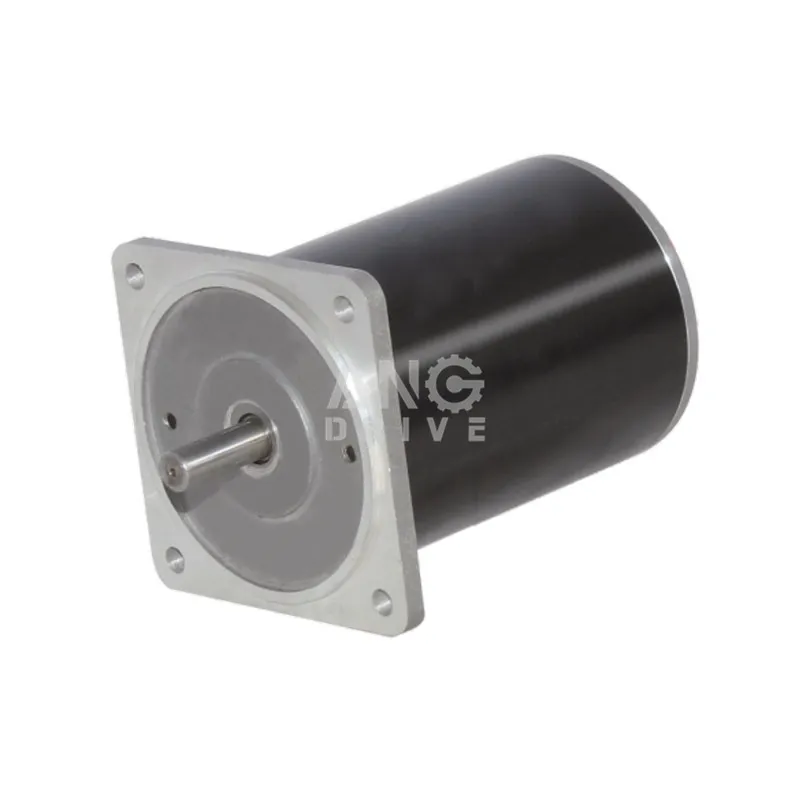

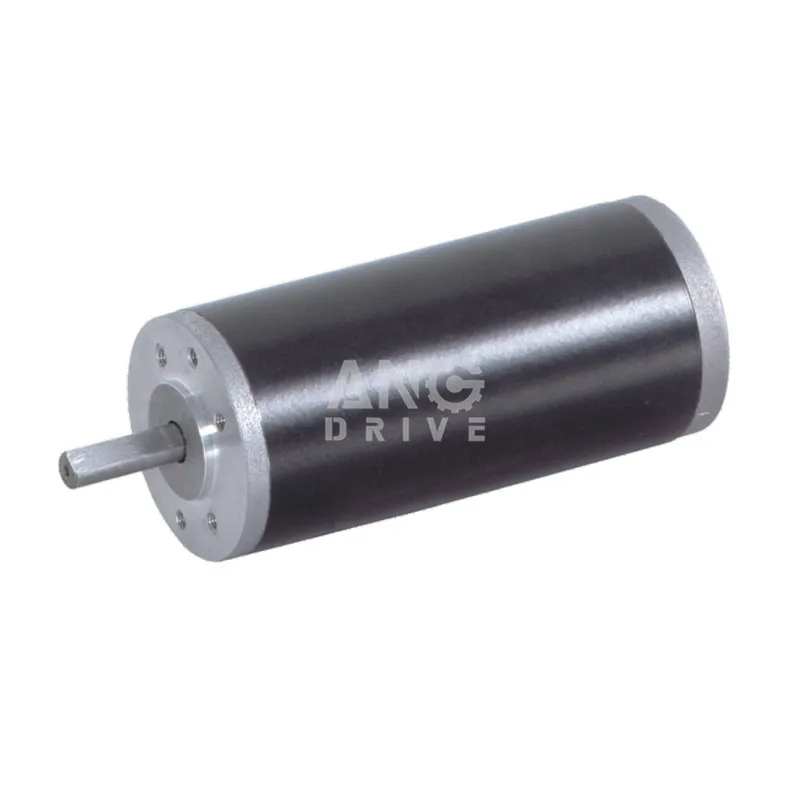

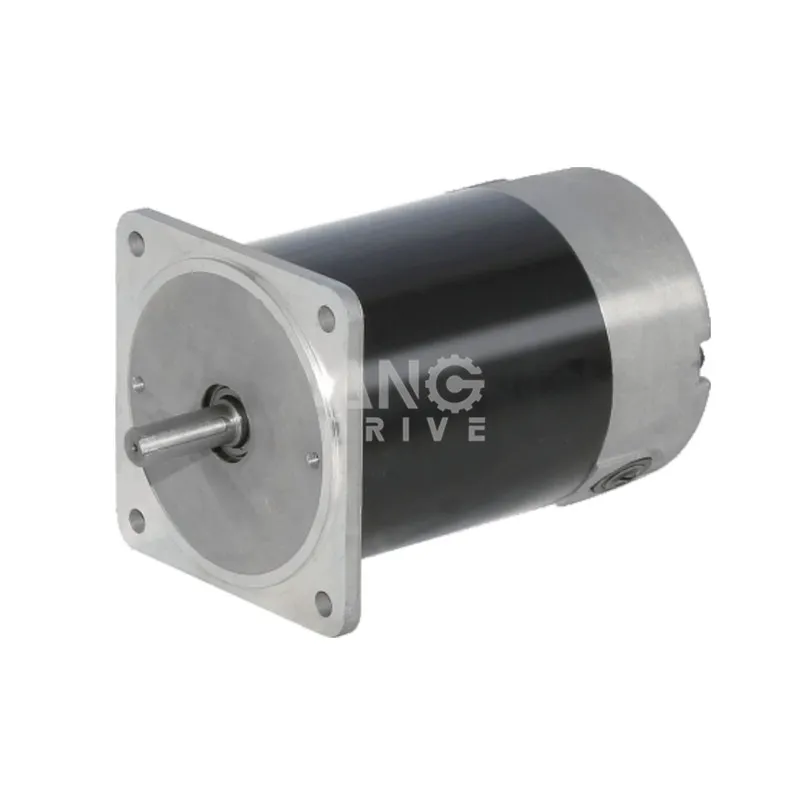

Product photo
FAQ
Q: Can you make the gear unit with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. The sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company have design and development team, we can provide technical support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C are preferred, with a different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
